Chapter 4 Using the Front Panel to Configure the D9887B HDTV Modular Receiver
58 78-4043743-01 Rev A
Overlay Settings
Overlays provide an easy way to help troubleshoot problems, monitor stream
characteristics, or decode closed captioning.
CAUTION: All overlays will appear on the downstream video.

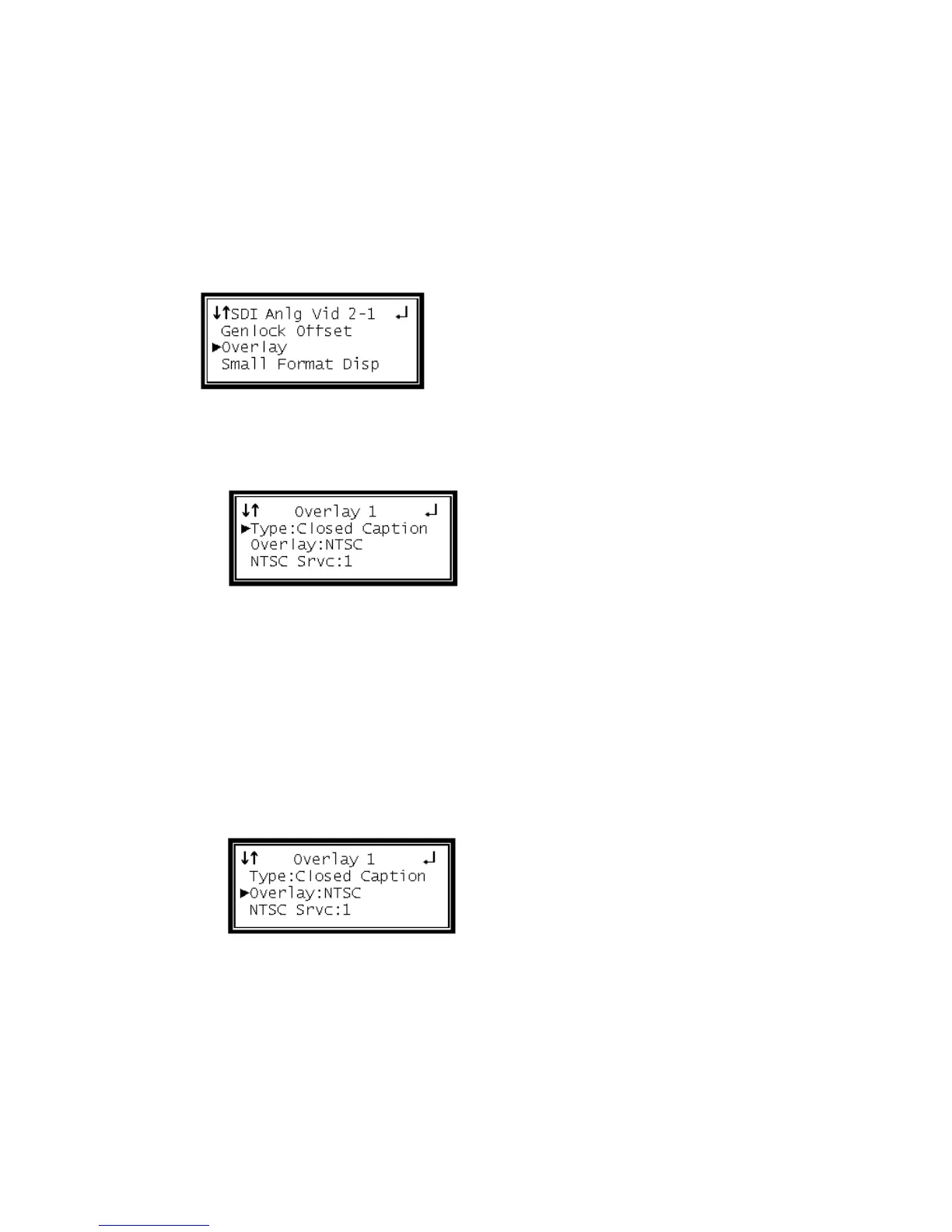

Use the Up and Down buttons to move the cursor to "Overlay," then press the Enter
button.
Type of Overlay
1 Use the Up and Down buttons to move the cursor to "Type," then press the Enter
button.
2 Use the Up and Down buttons to select which overlay to display ("Off", "Closed
Caption", "Service", "Table", "Subtitle"), then press the Enter button to save the
selection.
Note: The "1" in "Overlay 1" refers to the RDS.
Overlay (Closed Caption)
Note: This menu changes depending on which overlay is set in "Type of Overlay"
above.
1 Use the Up and Down buttons to move the cursor to "Overlay," then press the
Enter button.
2 Use the Up and Down buttons to select the appropriate type of overlay ("NTSC"
or "DTVCC"), then press the Enter button to save the selection.
