Cisco D9887B User Manual

MPEG-2/MPEG-4 4:2:0 Decoder (1 Video, 2 Audio) Option
78-4043743-01 Rev A 119

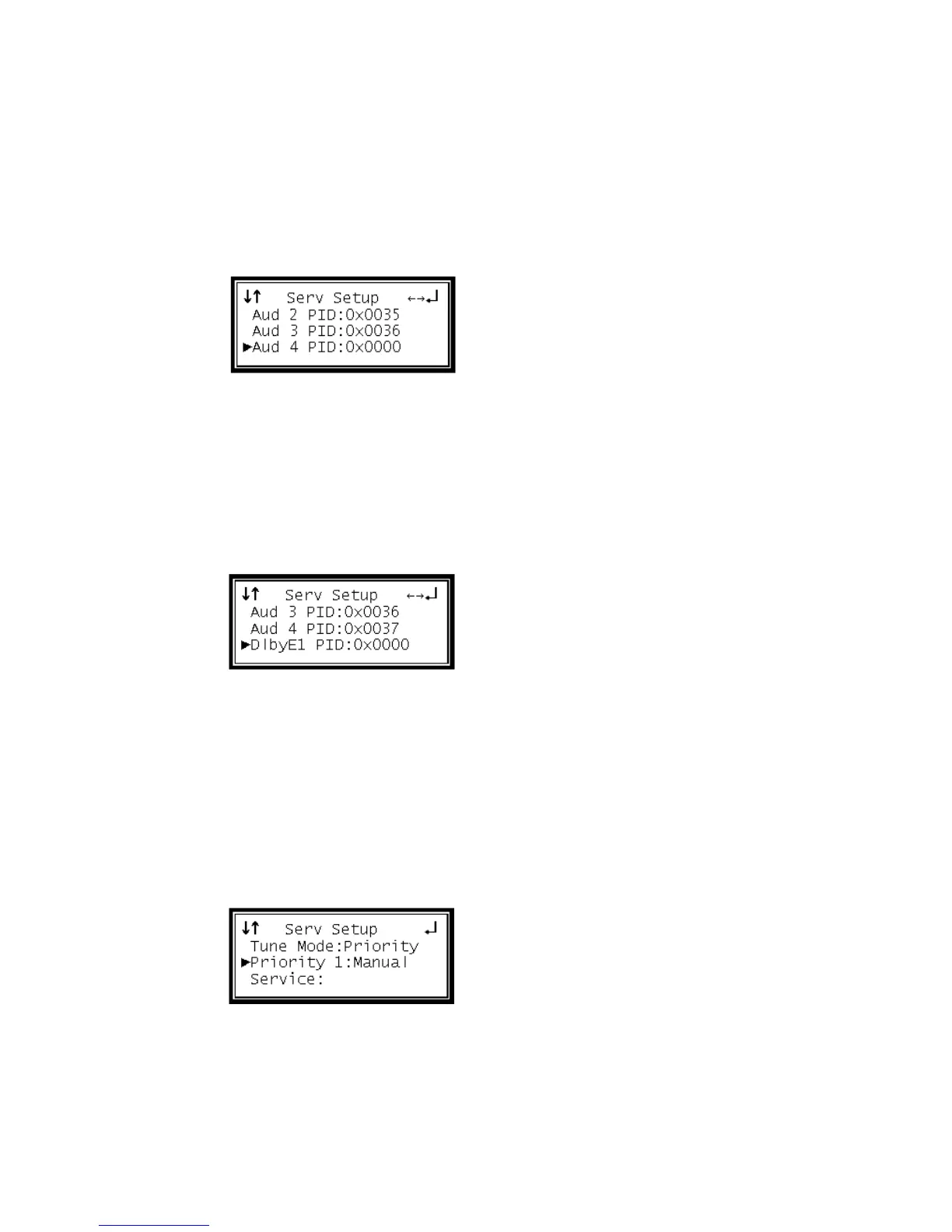

Audio 4 PID
Note: This menu is only available if the unit is equipped with a second decoder in
Configuration 1.
1 Use the Up and Down buttons to move the cursor to "Aud 4 PID," then press the
Enter button.
2 Use the Left and Right buttons to select the column to edit and use the Up and
Down buttons to set the PID, then press the Enter button to save the selection.
Dolby E 1
Note: This option is only available if there is an Audio Output (Dolby E, AES Digital,
Analog) option audio output card installed.
1 Use the Up and Down buttons to move the cursor to "DlbyE1 PID," then press
the Enter button.
2 Use the Left and Right buttons to select the column to edit and use the Up and
Down buttons to set the PID, then press the Enter button to save the selection.
Priority Mode
This mode is generally used with two identical streams for redundancy.
Priority 1
1 Use the Up and Down buttons to move the cursor to "Priority 1," then press the
Enter button.
2 Use the Up and Down buttons to select either "Manual" or "List," then press the
Enter button to save the selection.
