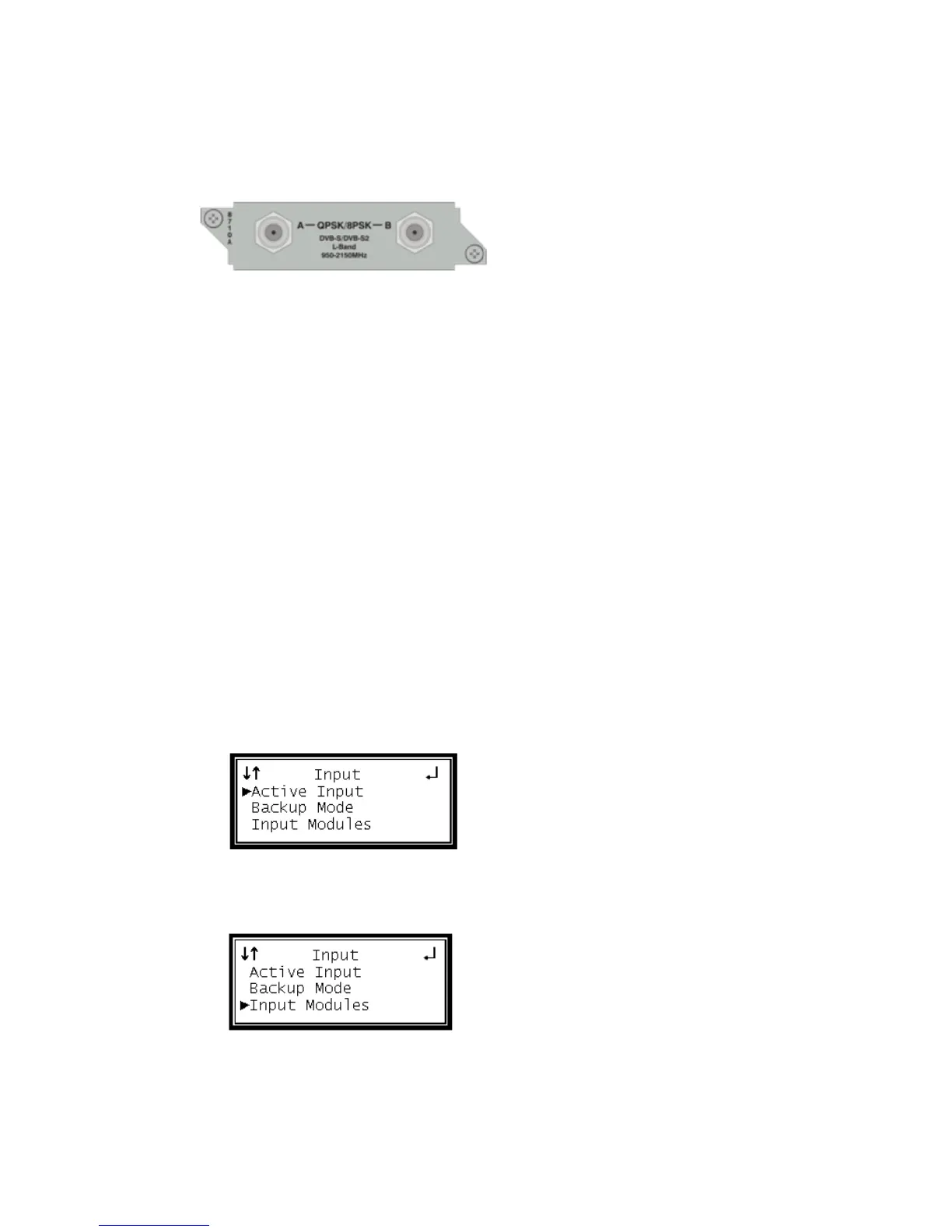

Dual Input DVB-S/DVB-S2 Receiver Option
General Information
Install Location: Any slot except 1-1 or 2-1.
I/O: (2) 75Ω Female F Connectors
Supported Formats: DVB-S/DVB-S2
Description: This card will input a satellite L-band (950 MHz – 2150 MHz) signal for
demodulation of KU-band or C-band DVB-S QPSK signals or DVB-S2 QPSK/8PSK
signals. The symbol rate ranges from 1 MSym/s to 45 MSym/s for DVB-S and 1-30
MSym/s for DVB-S2. This card does not provide any power to the dish LNB. The
"Input" LED will only illuminate if the card detects frequency, symbol rate, FEC lock
(Carrier Lock), and TS sync (Sync Lock). The card provides A and B inputs, which
may be independently configured, but only one may be used at a time.
Note: This card does not provide power to the dish LNB.
To Edit the Option Card Input Settings
To edit this input card, use the following steps:
1 Press the Input button.
Note: For Configuration 2 units, select RDS1 or RDS2, then press Enter.
2 Use the Up and Down buttons to select "Input Modules," and press the Enter
button.
