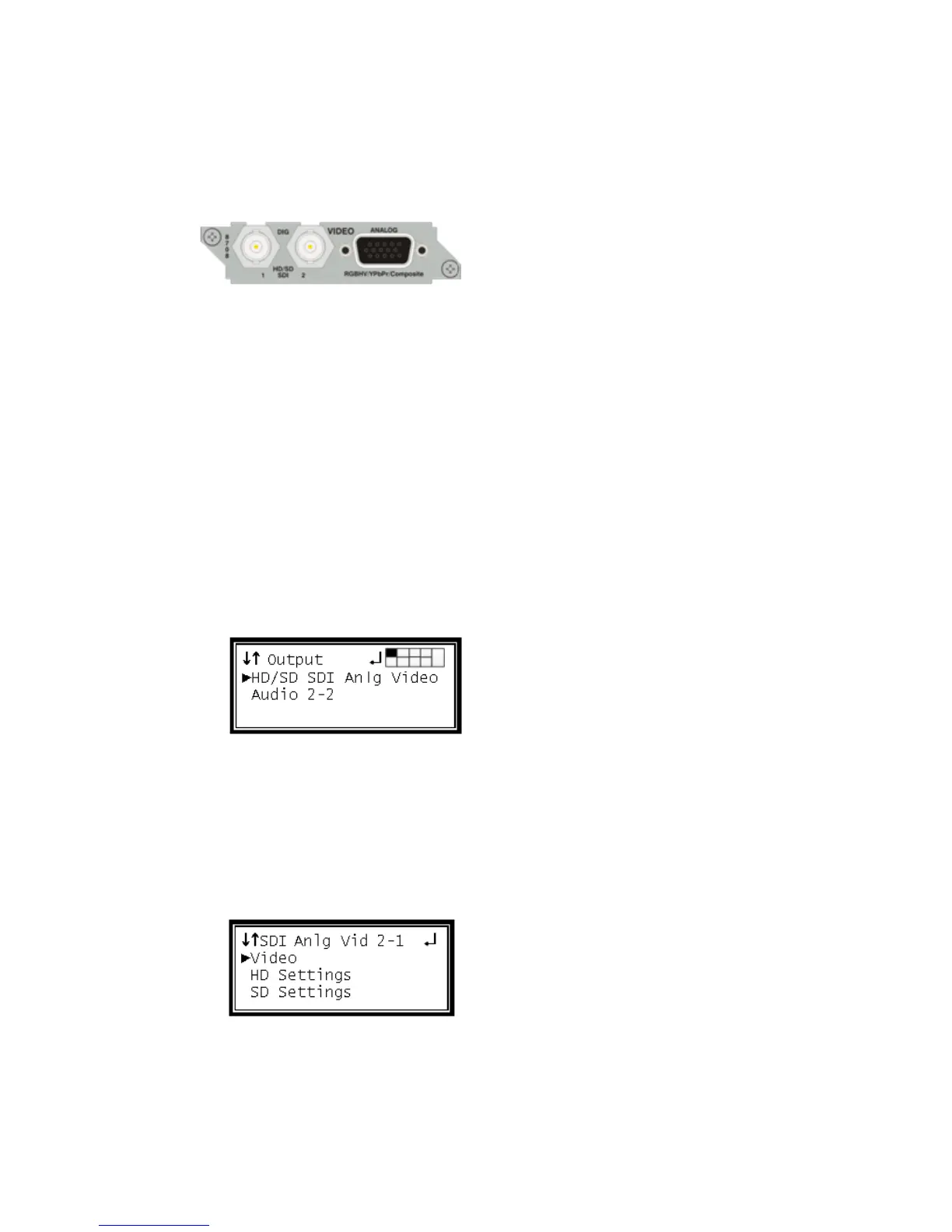

Chapter 4 Using the Front Panel to Configure the D9887B HDTV Modular Receiver
46 78-4043743-01 Rev A
Dual Video Output (2 SDI, 1
RGBHV/YPbPr/Composite) Option
General Information
Install Location: 1-1 or (2-1 only on Configuration 2 units or Configuration 1 units
with dual decoders)
I/O: (2) 75Ω HD-SDI Female BNC outputs, (1) 15-pin D-sub Female analog output
Supported Formats: HD-SDI, SD-SDI, YPbPr, RGBHV, and Composite
Description: This card provides three mirrored outputs from any of the available
input option cards. Two of the outputs are any combination of HD-SDI or SD-SDI
and one is analog YPbPr/RGBHV/Composite.
Output Control
1 Press the Output button.
2 Use the Up and Down buttons to move the cursor to the "HD/SD SDI Anlg
Video" card of the specific slot (e.g. 2-1). Notice the location diagram in the upper
right corner of the screen changes as the cursor moves by each card.
Video Settings
1 Use the Up and Down buttons to move the cursor to "Video," then press the
Enter button to display the Video Status screen for the video output card.
2 Press the Enter button again to display the Edit screen for the video output card.
