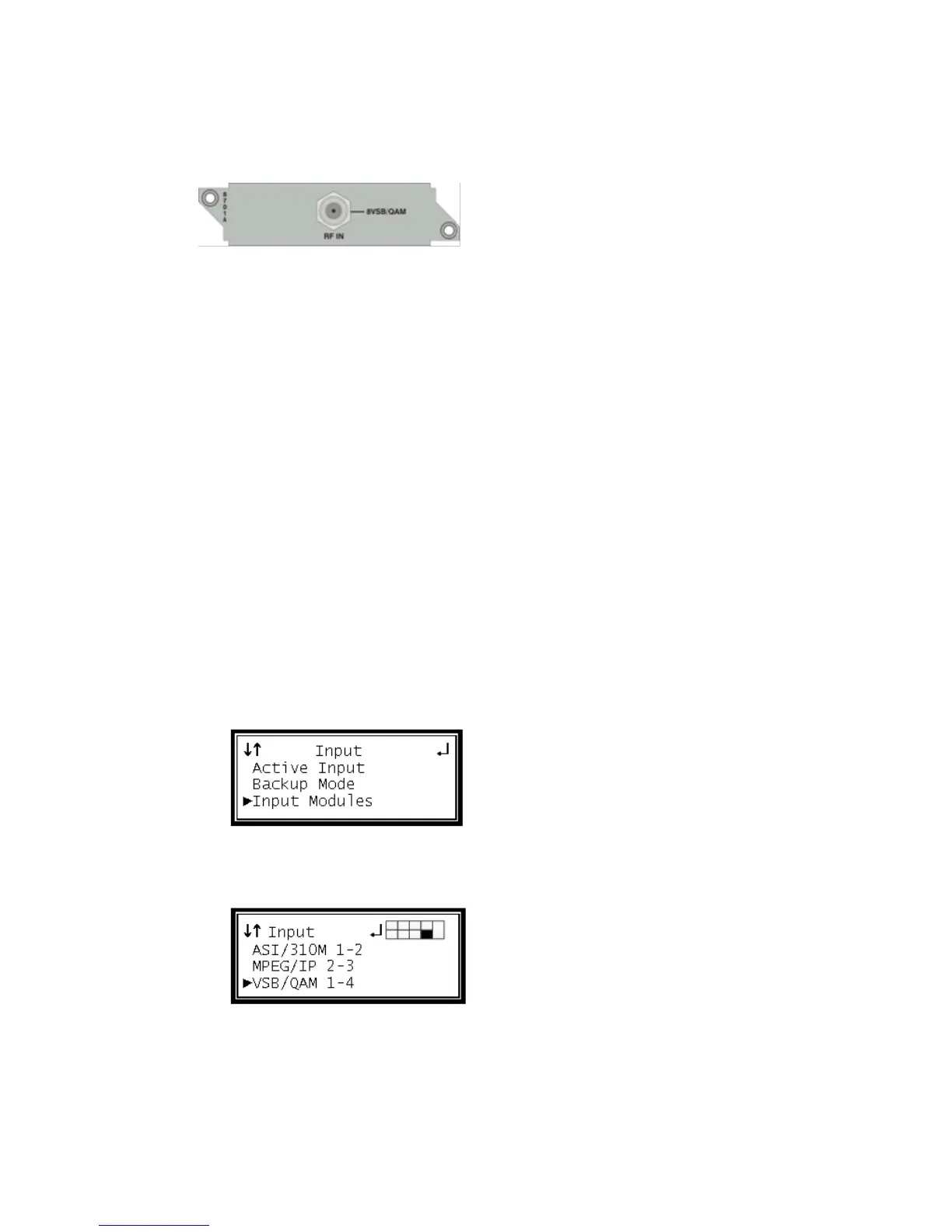

8VSB/QAM Receiver Option
General Information
Install Location: Any slot except 1-1 and 2-1.
I/O: (1) 75 ohm Female F Connector
Supported Formats: 8VSB, QAM-64B, QAM-256B
Description: This card provides demodulation of 8 VSB or QAM. For 8 VSB, the card
is able to tune to channels 2 - 69 on UHF/VHF and channels 2 - 134 on the cable
channel bands of FCC cable, IRC, and HRC. For QAM, the card is able to receive
both QAM-64B and QAM-256B and is able to tune to channels 2 - 134 in the cable
bands of FCC cable, IRC, and HRC.
To Edit the Option Card Input Settings
To edit this input card, use the following steps:
1 Press the Input button.
Note: For Configuration 2 units, select RDS1 or RDS2, then press Enter.
2 Use the Up and Down buttons to select "Input Modules," and press the Enter
button.
3 Use the Up and Down buttons to move the cursor to the "VSB/QAM" card of the
specific slot (e.g. 1-4). Notice the location diagram in the upper right corner of the
screen changes as the cursor moves by each card.
4 Press the Enter button once to display the Status screen for the VSB/QAM card.
5 Press the Enter button again to display the Edit screen for the VSB/QAM card.
