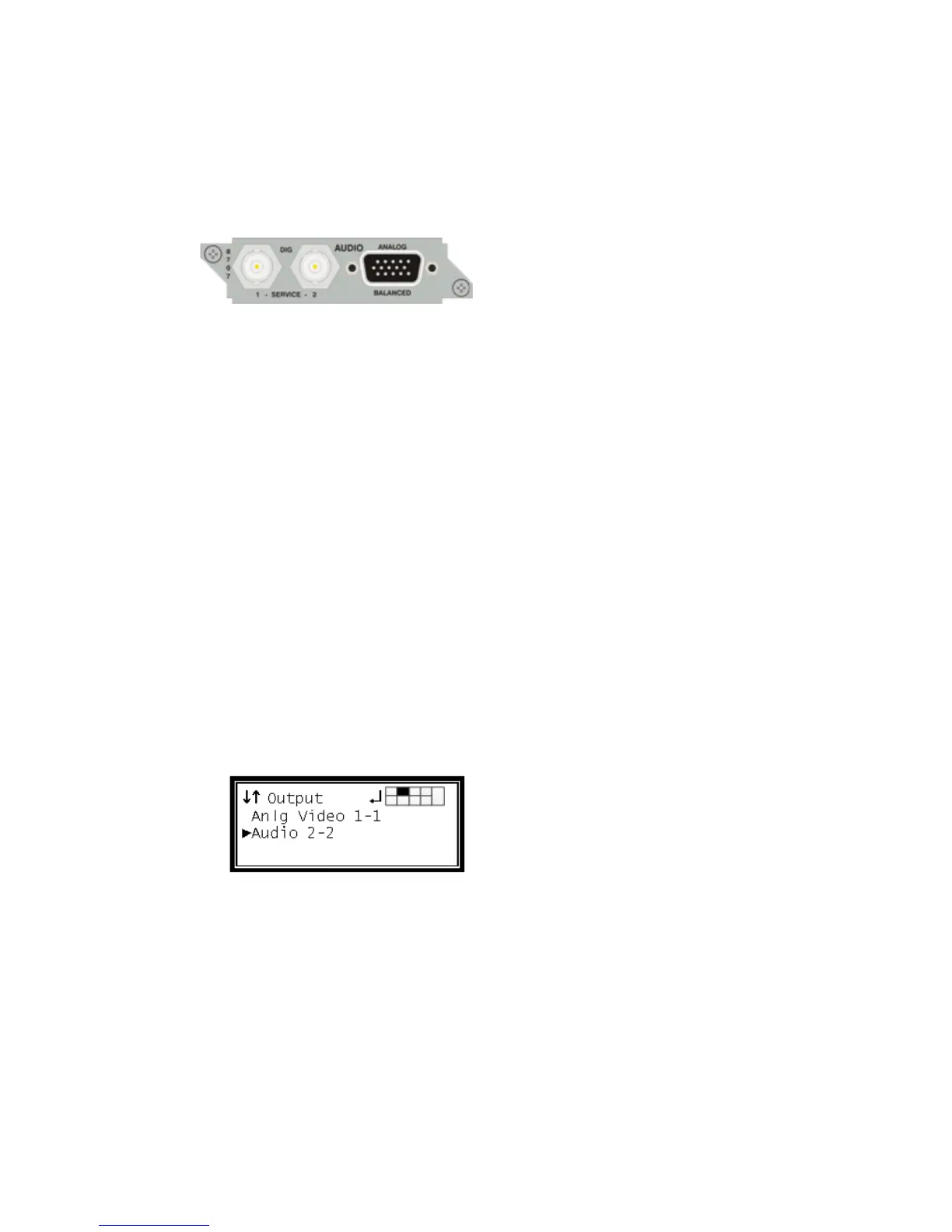

Audio Output (Dolby E, AES Digital, Analog) Option
78-4043743-01 Rev A 43
Audio Output (Dolby E, AES Digital, Analog)
Option
General Information
Install Location: Any slot except 1-1 and 2-1.
I/O: (2) 75Ω Female BNC digital outputs, (1) 15-pin D-sub Male analog output
Supported Formats: Raw, PCM, Dolby E
Description: This card provides two digital audio outputs, and two analog audio
pair outputs. The 8707A also adds the ability to parsed Dolby E compressed audio. It
provides the audio from two audio decoder processors. Two cards can be installed to
provide Raw and PCM digital audio outputs from four audio decoder processors
(Only in Configuration 2 or Configuration 1 Dual Decoder units).
Output Control
1 Press the Output button.
Note: For Configuration 2 units, select RDS1 or RDS2, then press Enter.
2 Use the Up and Down buttons to move the cursor to the "Audio" card of the
specific slot (e.g. 2-2), then press the Enter button. Notice the location diagram in
the upper right corner of the screen changes as the cursor moves by each card.
3 Press the Enter button one more time to move from the Status screen to the Edit
screen.
