Chapter 4
Using t
he Front Panel to Co
nfigure the D9887B HDTV Mo
dular Receive
r
42
78
-4043743-01 Rev A

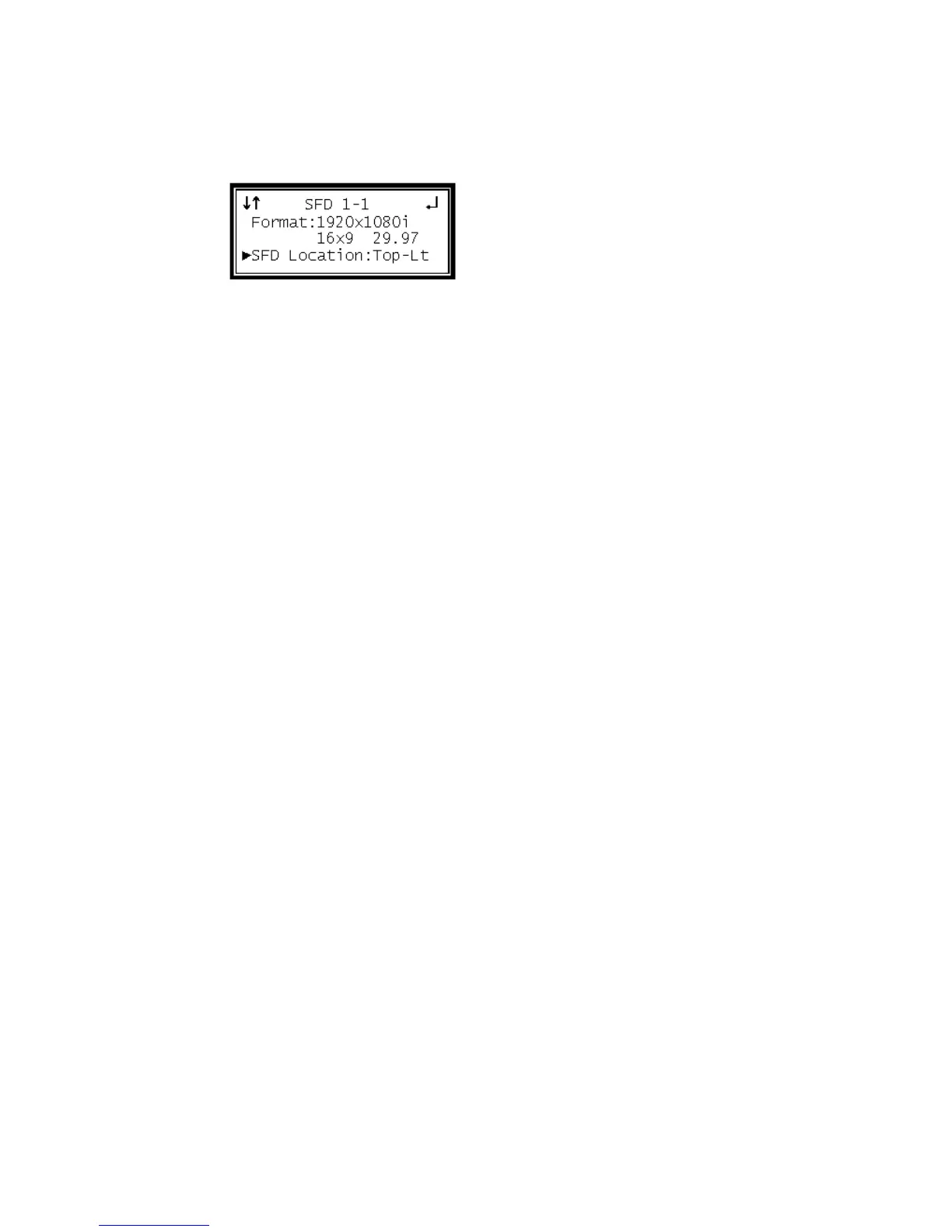

SFD Location
1
Use the
Up
and
Do
w
n
button to move t
he cursor to "SFD Lo
cation," and t
h
en
press the
Enter
butto
n
.
2
Use the
Up
a
n
d
Down
bu
ttons to select "Top-Lt", "Mid-Lt", "B
tm
-
Lt", Top-R
t",
"Mid-Rt", "Btm-Rt", T
op-Ctr", "Mid-Ctr", or "Btm
-Ctr."
3
Press the
Enter
butto
n to save the settings.
