Chapter 4 Using the Front Panel to Configure the D9887B HDTV Modular Receiver
82 78-4043743-01 Rev A
Source

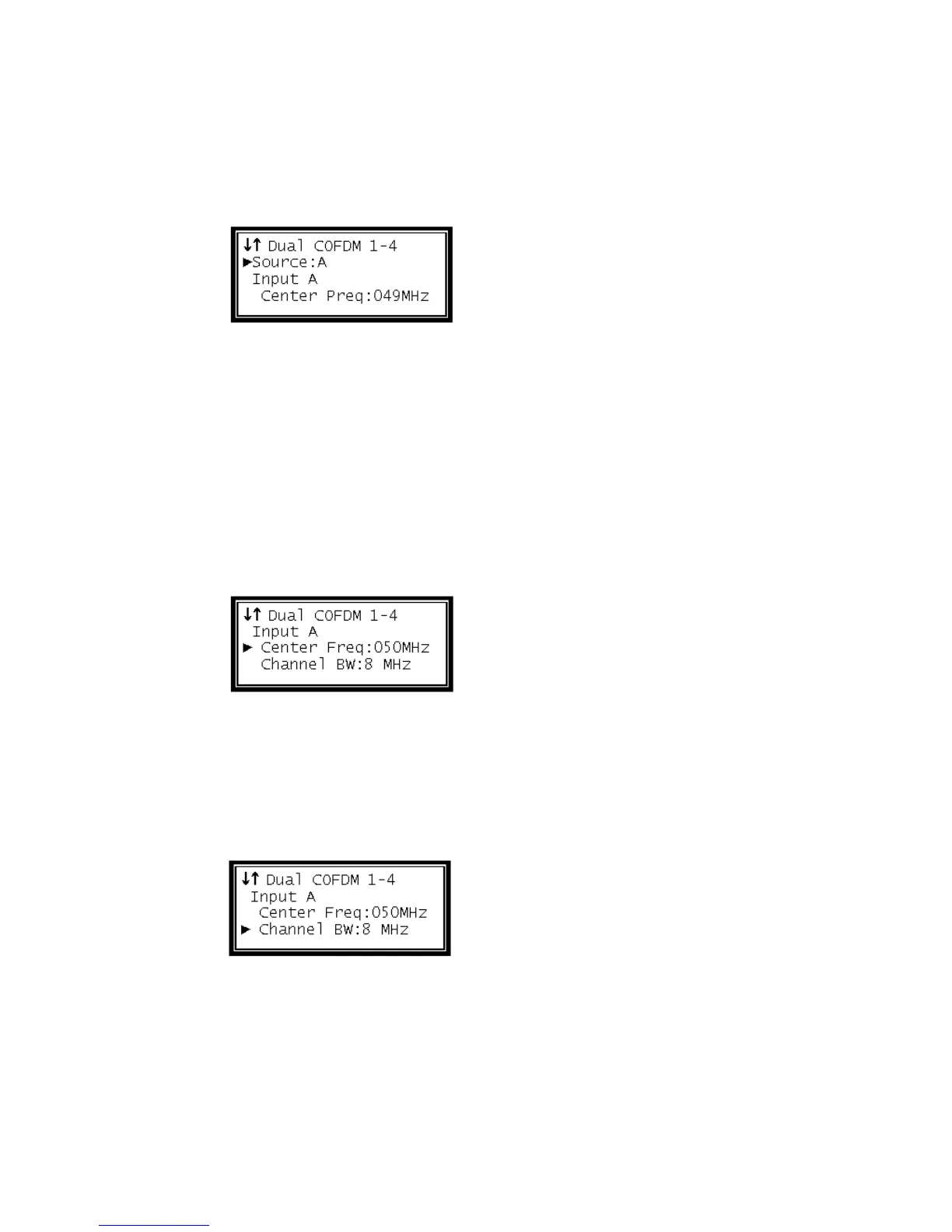

This option will select which input, on the back of the card, will be active.
1 Use the Up and Down buttons to move the cursor to "Source," then press the
Enter button.
2 Use the Up and Down buttons to select which input to be active ("A", "B"), then
press the Enter button to save the selection.
Input A
These settings correspond to the input on "Source A."
Center Frequency A
The COFDM card tunes to the center frequency of the channel to tune to.
1 Use the Up and Down buttons to move the cursor to "Center Freq," then press
the Enter button.
2 Use the Left and Right buttons to select the column to edit and use the Up and
Down buttons to change the center frequency (49 MHz – 861 MHz), then press
the Enter button to save the selection.
Channel Bandwidth A
1 Use the Up and Down buttons to move the cursor to "Channel BW," then press
the Enter button.
2 Use the Up and Down buttons to change the channel bandwidth ("6 MHz", "7
MHz", "8 MHz"), then press the Enter button to save the selection.
