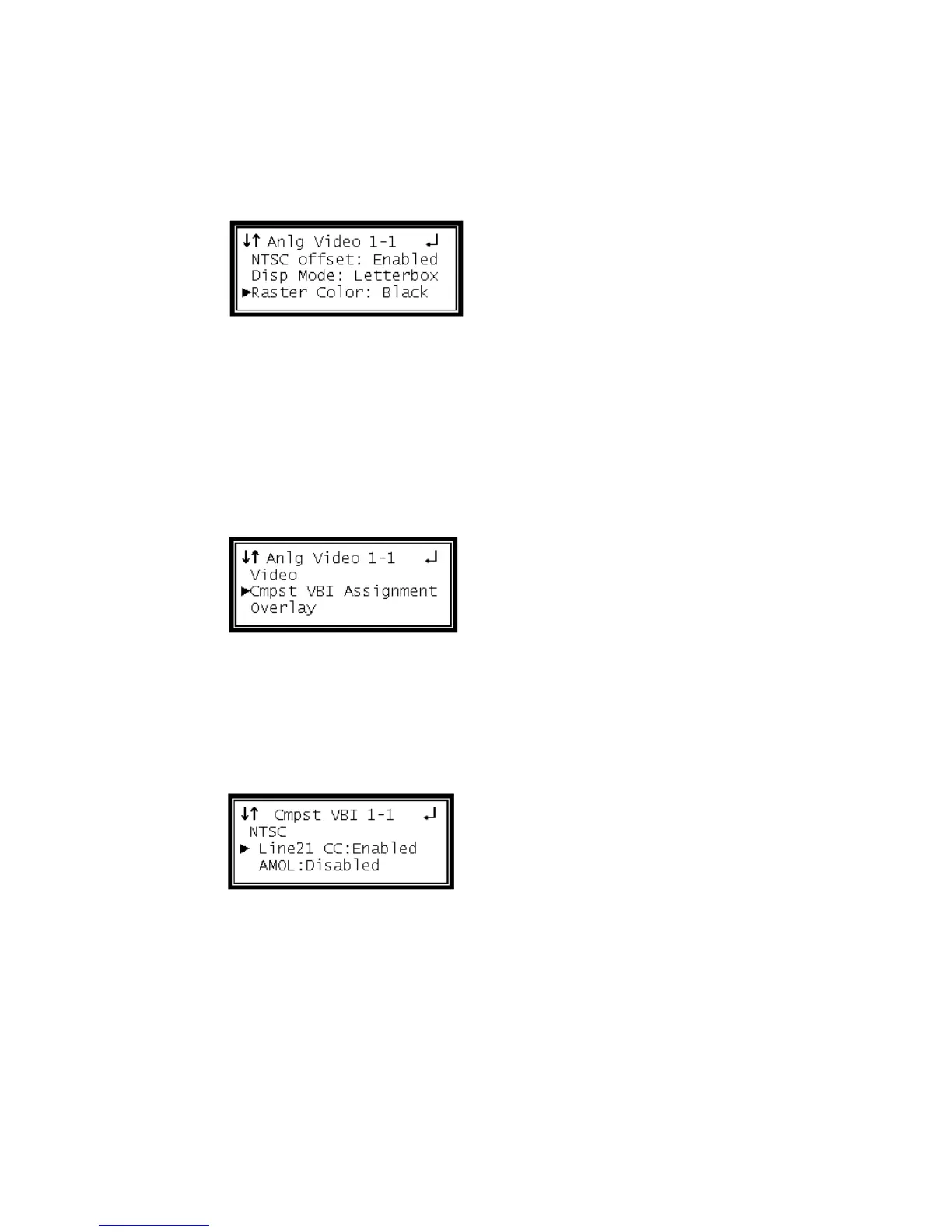

Raster Color
1 Use the Up and Down buttons to move the cursor to "Raster Color," then press
the Enter button.
2 Use the Up and Down buttons to select the desired raster color ("Black", "White",
"Yellow", "Cyan", "Green", "Magenta", "Red", "Blue"), then press the Enter button
to save the selection.
Composite VBI Assignment
To edit the Composite VBI Assignment, use the following steps.
1 Use the Up and Down buttons to move the cursor to "Cmpst VBI Assignment,"
then press the Enter button to display the status screen for the VBI.
2 Press the Enter button once more to enter the Edit screen.
NTSC Waveforms
To enable NTSC items, use the following steps:
1 Use the Up and Down buttons to move the cursor to "Line21 CC," then press the
Enter button.
2 Use the Up and Down buttons to select "Enabled" or "Disabled," then press the
Enter button to save the selection.
Note: Repeat steps 1-2 above to change AMOL and TVG2x.
