Cisco D9887B User Manual

Chapter 4 Using the Front Panel to Configure the D9887B HDTV Modular Receiver
66 78-4043743-01 Rev A
Frequency B
The DVB-S/S2 card tunes by the L-band frequency rather than the transponder
frequency or local oscillator value. The L-band frequency is the difference between
the downlink transponder frequency and the LNB local oscillator frequency.

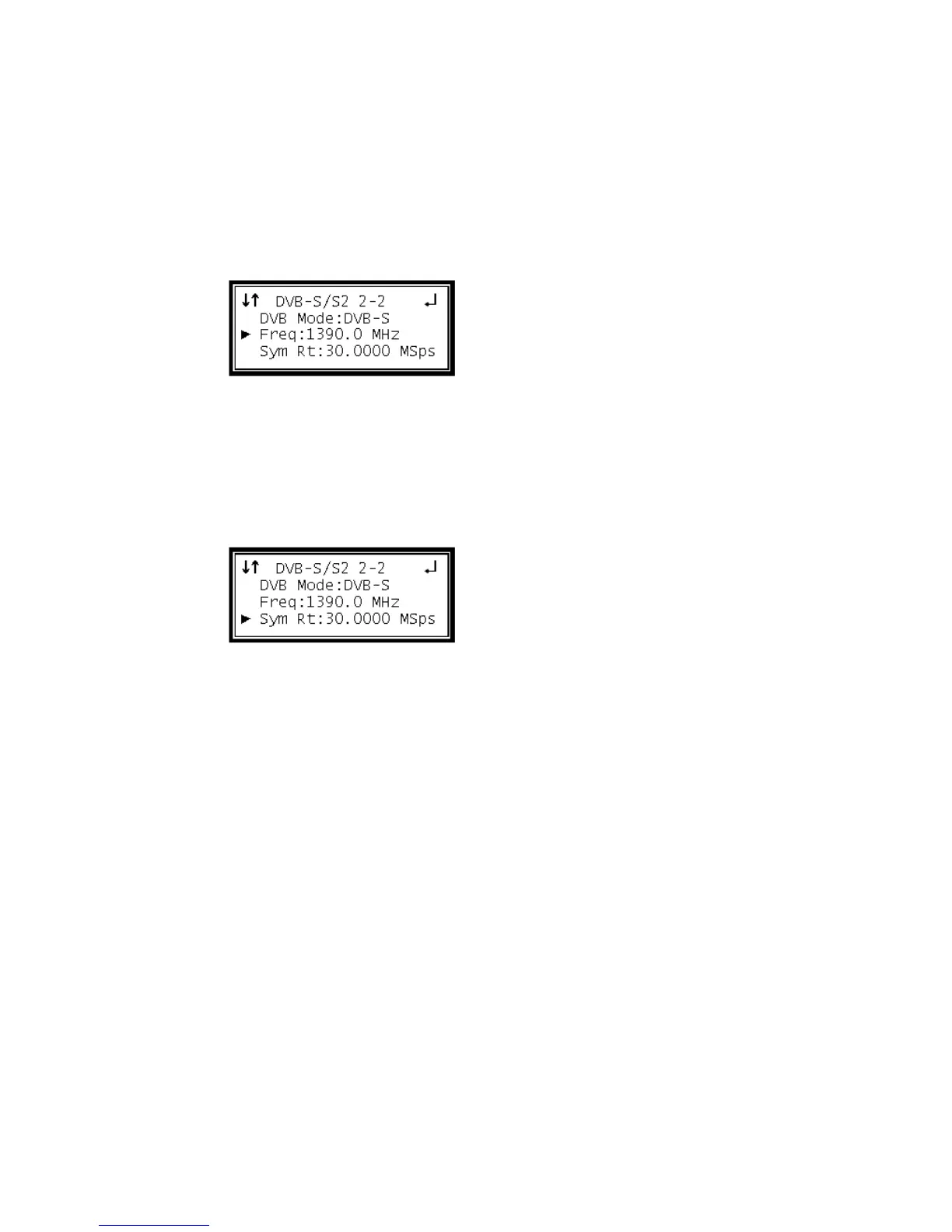

1 Use the Up and Down buttons to move the cursor to "Freq," then press the Enter
button.
2 Use the Left and Right buttons to select the column to edit and use the Up and
Down buttons to change the frequency (950 MHz – 2150 MHz), then press the
Enter button to save the selection.
Symbol Rate B
1 Use the Up and Down buttons to move the cursor to "Sym Rate," then press the
Enter button.
2 Use the Left and Right buttons to select the column to edit, and use the Up and
Down buttons to change the symbol rate (1 – 30 MSymbols/s).
3 Press the Enter button to save the selection.
