Local Oscillator Offset
The Local Oscillator Offset provides preset values that can be selected using the List
mode. Any valid Local Oscillator Offset value can be entered using the Manual
mode.

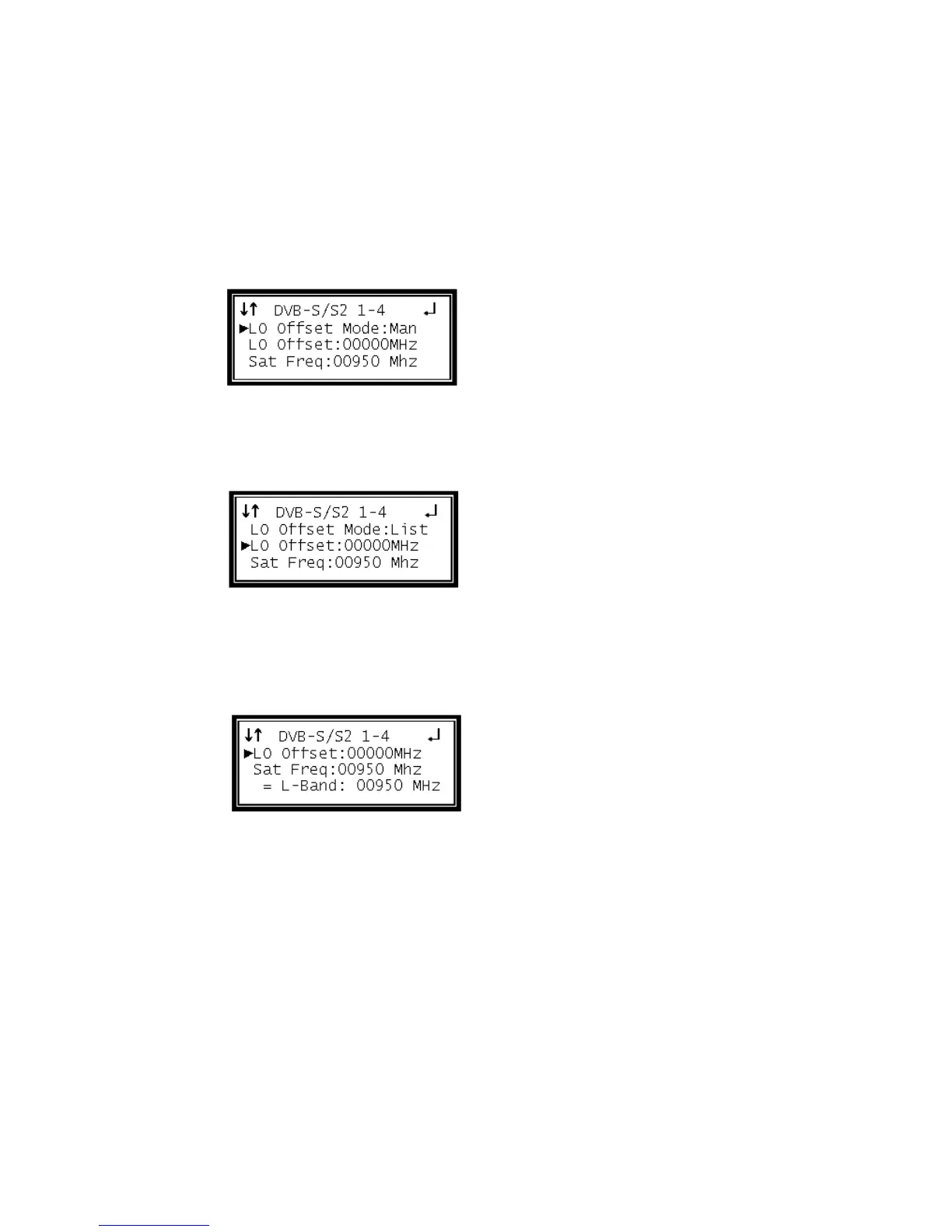

1 Use the Up and Down buttons to move the cursor to "LO Offset Mode," then
press the Enter button.
2 Use the Up and Down buttons to select "Man" (for manual) or "List", then press
the Enter button to save the selection.
3 When in "List" mode, use the Up and Down buttons to move the cursor to "LO
Offset," then press the Enter button.
4 Use the Up and Down buttons to select "00000MHz", 05150MHz", 09750MHz",
"10600MHz", "10750MHz" or "11250MHz" as the "LO Offset" setting, then press
the Enter button to save the setting.
5 When in "Man" mode, use the Up and Down buttons to move the cursor to "LO
Offset," then press the Enter button.
6 Use the Left and Right buttons to select the column to edit and use the Up and
Down buttons to change the Local Oscillator Offset (0 – 13550 MHz), then press
the Enter button to save the selection.
Note: If a value is entered results in a calculated L-Band that is out of range, an
"Out of Range!" message will be shown.
Note: The L-Band calculation is shown after the "Sat Freq" line. The valid L-Band
frequency range is 950 – 2150 MHz.
