Video Shift
Video Shift provides a horizontal and vertical shift of the video output.

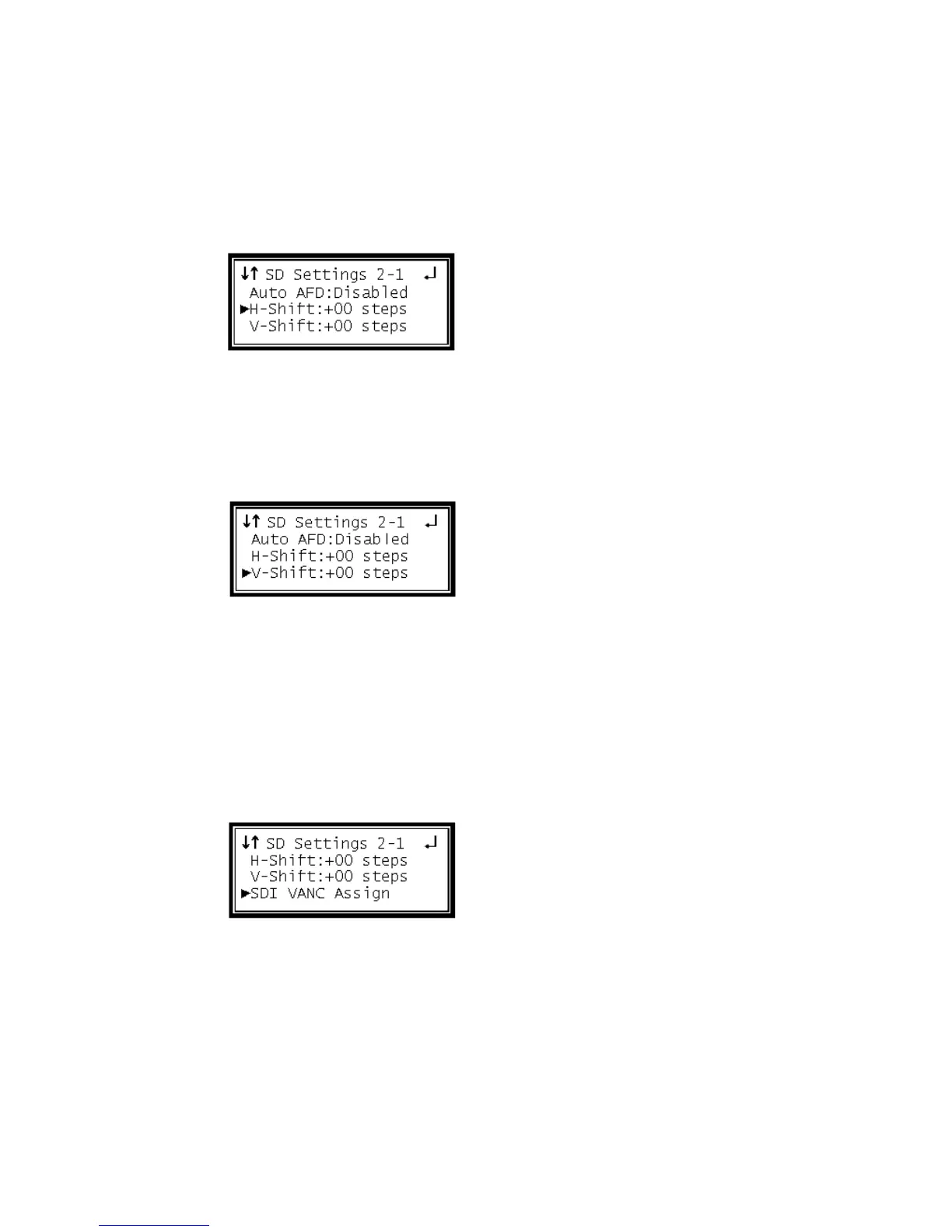

1 Use the Up and Down buttons to move the cursor to "H-shift," then press the
Enter button.
2 Use the Left and Right buttons to select the column to edit and use the Up and
Down buttons to change the horizontal step (-50 – +50 steps, where the minus
direction moves the video down), then press the Enter button to save the
selection.
3 Use the Up and Down buttons to move the cursor to "V-shift," then press the
Enter button.
4 Use the Left and Right buttons to select the column to edit and use the Up and
Down buttons to change the vertical step (-50 – +50 steps, where the minus
direction moves the video to the left), then press the Enter button to save the
selection.
SDI VANC Assignment
To edit the SDI VANC Assignment, use the following steps.
1 Use the Up and Down buttons to move the cursor to "SDI VANC Assign," then
press the Enter button to display the status screen for the VANC.
2 Press the Enter button once more to enter the Edit screen.
