Cisco D9887B User Manual

Chapter 4 Using the Front Panel to Configure the D9887B HDTV Modular Receiver
40 78-4043743-01 Rev A

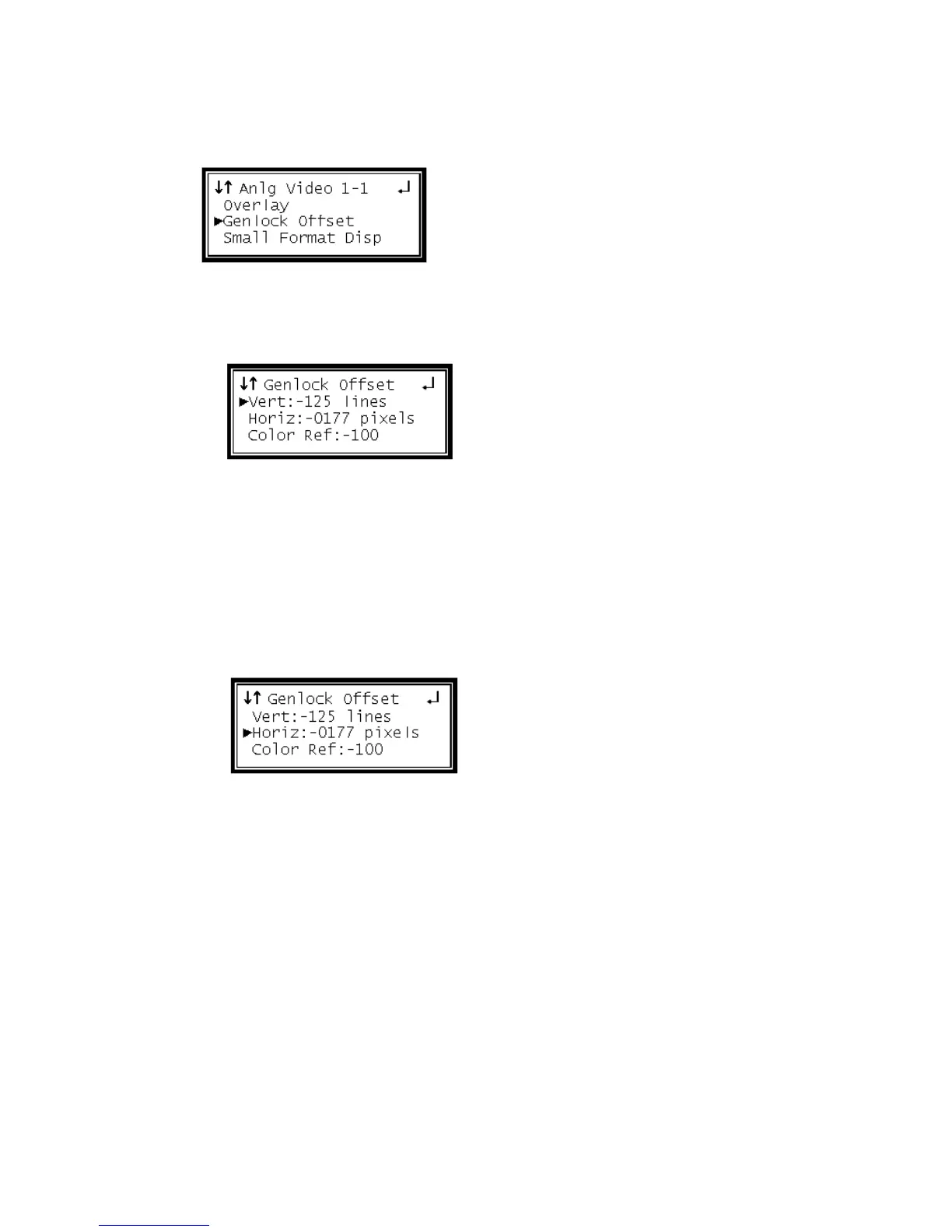

Use the Up and Down buttons to move the cursor to "Genlock Offset," then press the
Enter button.
Vertical
1 Use the Up and Down buttons to move the cursor to "Vert," then press the Enter
button.
2 Use the Left and Right buttons to select the column to edit and use the Up and
Down buttons to change the number of lines, then press the Enter button to save
the selection.
Note: The maximum amount of offset is determined by the format of the video
set.
Horizontal
1 Use the Up and Down buttons to move the cursor to "Horiz," then press the
Enter button.
2 Use the Left and Right buttons to select the column to edit and use the Up and
Down buttons to change the number of pixels, then press the Enter button to
save the selection.
Note: The maximum amount of offset is determined by the format of the video
set.
