Cisco D9887B User Manual

MPEG-2 Decoder 4:2:2 with Genlock (1 Video, 4 Audio) Option
78-4043743-01 Rev A 141
Each Mode allows the following to be changed:
 User: Compression, Downmix, Dynamic Range
 Monitor: Compression
 Transmission: no changes

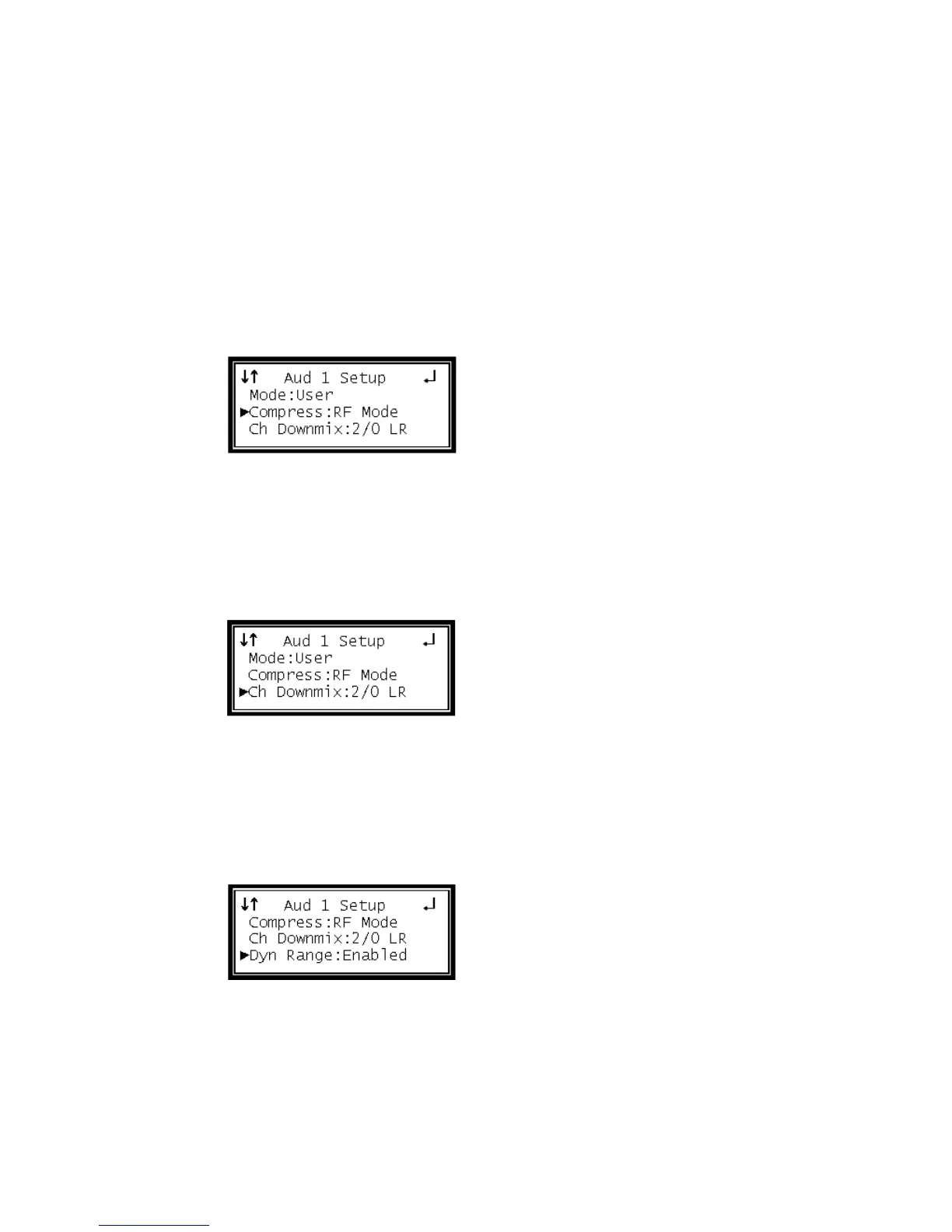

Compression
1 Use the Up and Down buttons to move the cursor to "Compress," then press the
Enter button.
2 Use the Up and Down buttons to select the desired compression ("RF Mode",
"Line Mode", "Custom 0", "Custom 1"), then press the Enter button to save the
selection.
Downmix
1 Use the Up and Down buttons to move the cursor to "Ch Downmix," then press
the Enter button.
2 Use the Up and Down buttons to select the desired downmix ("2/0 LR", "2/0
LtRt", "MonoChan1", "MonoChan2"), then press the Enter button to save the
selection.
Dynamic Range
1 Use the Up and Down buttons to move the cursor to "Dyn Range," then press the
Enter button.
2 Use the Up and Down buttons to set the Dynamic Range to "Enabled" or
"Disabled," then press the Enter button to save the selection.
