Chapter 4 Using the Front Panel to Configure the D9887B HDTV Modular Receiver

74 78-4043743-01 Rev A

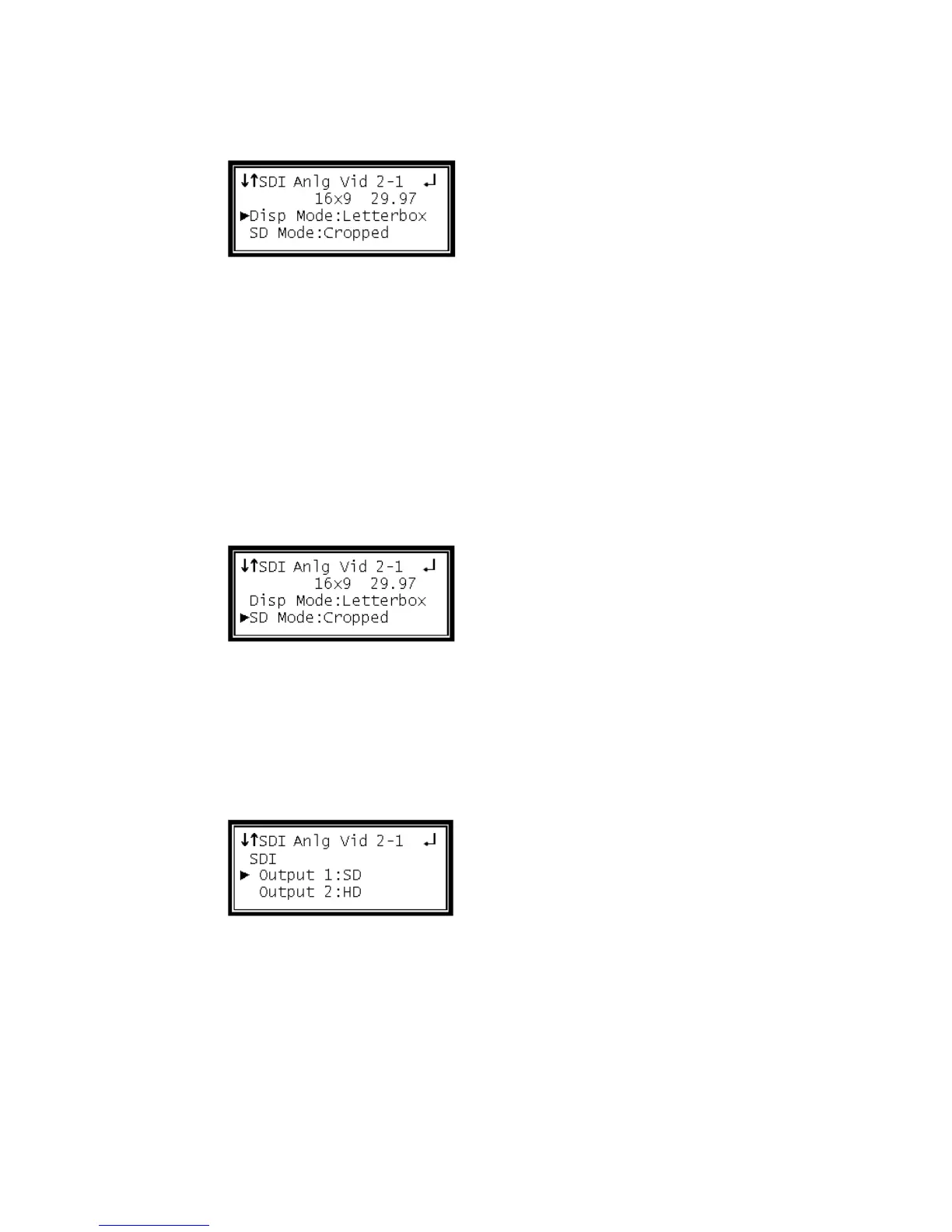

1 Use the Up and Down button to move the cursor to "Disp Mode," then press the

Enter button.

2 Use the Up and Down buttons to select either "Letterbox" or "Cropped," then

press the Enter button to save the selection.

SD Mode Setup

This sets the video frame conversion when the SD output video format has a

different aspect ratio form the input video. "Letterbox" provides bars to fill the

screen, either top and bottom (letterbox) or on each side (pillarbox). The "Cropped"

setting expands (without distortion) the video so that it fills the video frame and

deletes the parts that extend beyond the frame. The "Anamorph" setting stretches the

video to fit the full screen.

1 Use the Up and Down button to move the cursor to "SD Mode," then press the

Enter button.

2 Use the Up and Down buttons to select either "Letterbox", "Cropped", or

"Anamorph", then press the Enter button to save the selection.

SD Output Setup

Follow the steps in this section to set the outputs to SD-SDI and HD-SDI.

1 Use the Up and Down button to move the cursor to "Output 1," then press the

Enter button.

2 Use the Up and Down buttons to select the desired output format ("SD" or

"HD"), then press the Enter button to save the selection.

Note: Repeat the steps above to change to the desired output setting for "Output

2."

Note: The frame rate of the SD output follows the setting that is set for the

"Format:" entry in the "Video" settings.
