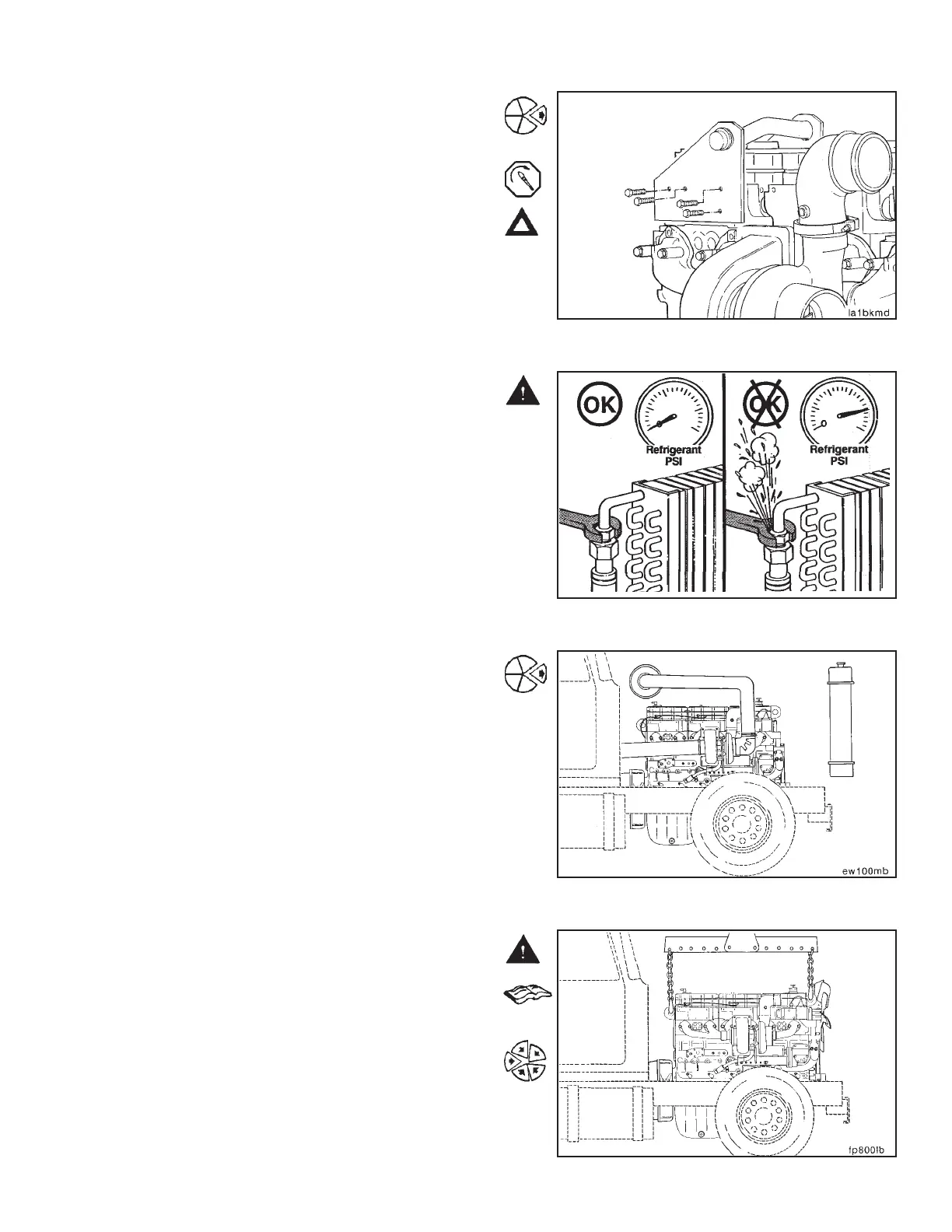

Attach the right plate of the lifting bracket to the exhaust
side of the rear rocker housing. Install the four 3/8-16x1
inch UNC (Grade 8) mounting capscrews and washers.
Torque Value: 75 N•m [55 ft-lb]
Caution: If all fasteners are not installed and properly
torqued, the lifting bracket will fail. Severe engine dam-
age and personal injury are possible.
Warning: If a liquid refrigerant system (air conditioning)
is used, wear eye and face protection and wrap a cloth
around the fittings before removal. Liquid refrigerant
can cause serious eye and skin injury.
Remove all chassis components necessary to remove the
engine from the equipment.
Warning: The engine lifting equipment must be designed
to safely lift the engine and the transmission as an as-
sembly. The dry weight of the standard engine with
accessories is 1256 kg [2770 lbs]. Refer to the
equipment manufacturer’s specifications for the trans-
mission weight.
Use a correctly rated hoist, and attach engine lifting fix-
ture, Part No. ST-125 or Part No. 3822512, to the engine
mounted lifting brackets to remove the engine.
NOTE: If the transmission is not removed, place a support
under the transmission to prevent it from falling.
Section 9 - Engine Remove and Install Engine Removal (9-01)
N14 Page 9-7
