Dalsa Genie Nano Series User Manual

Nano Series GigE Vision Camera Operational Reference • 137
• TriggerOverlap=EndOfExposure
• Trigger is accepted immediately after the previous exposure period. This will latch the Trigger
and delay the Exposure if the end of that exposure is shorter than the previous readout.
Diagram Conditions:
• TriggerMode=On
• ExposureMode=Timed
• TriggerActivation=RisingEdge
• TriggerDelay=0
• TriggerSelector=FrameStart
• ExposureAlignment=Synchronous
Applicable to current Sony sensor models

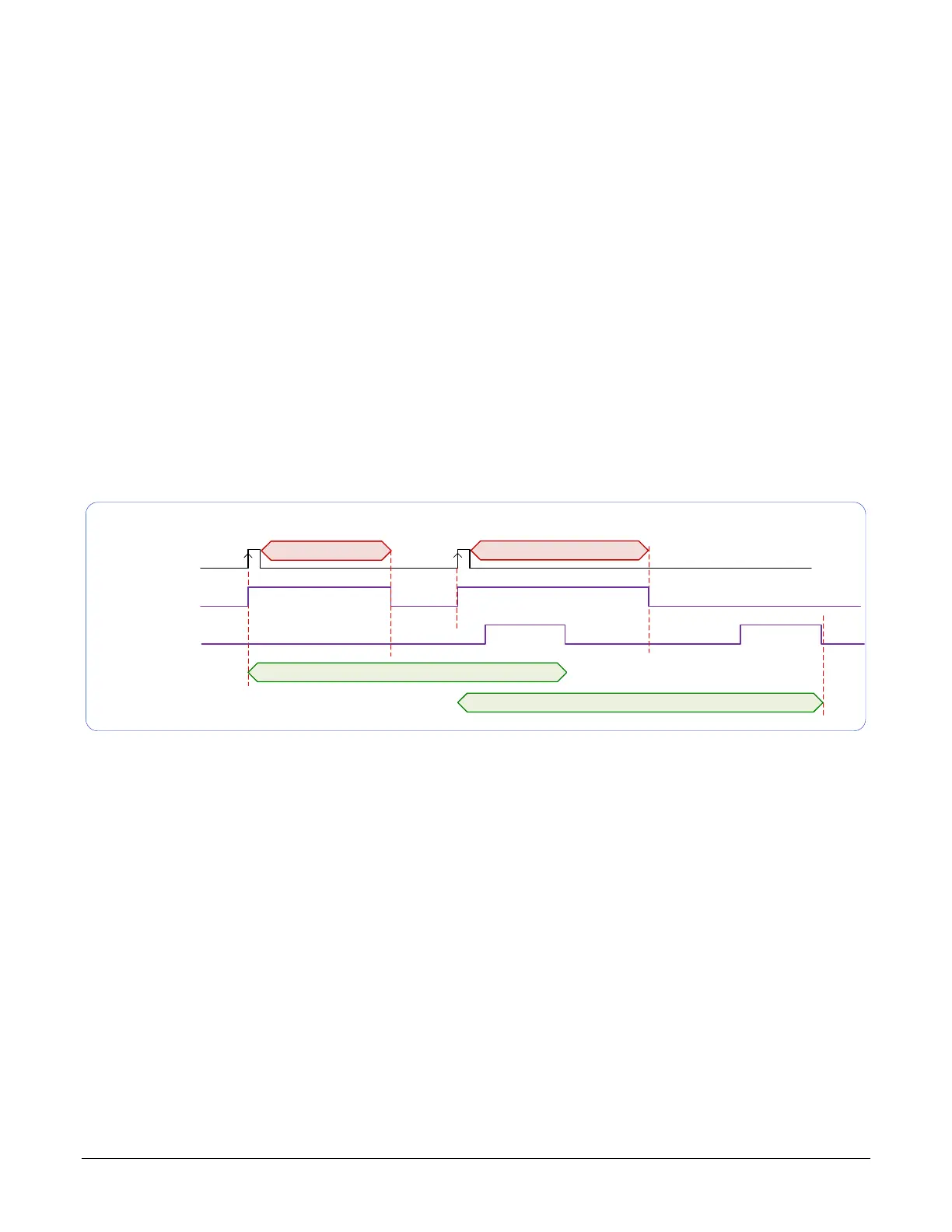

Sony sensor Nano models support a maximum trigger rate by allowing a trigger signal soon after
the exposure period. A trigger is accepted and buffered for a 12 line clock period (after the
exclusion period) at which the next exposure starts. As shown in the diagram below, the following
exposure can be active even before the frame readout of the previous exposure.
Trigger Input
Trigger Exclusion Period
Exposure 1
Readout 1
Frame 1
Active period
Exposure 2
Readout 2
Frame 2 Active period
Frame Exposure
Frame Readout
TriggerOverlap=EndOfExposure
Trigger Exclusion Period
Refer to Model Part Numbers for the available Nano models using Sony sensors and their timing
specifications.
