246 • Technical Specifications Nano Series GigE Vision Camera
Additional Notes on Genie Nano Identification and
Mechanical
Identification Label
Genie Nano cameras have an identification label applied to the bottom side, with the following information:
Model Part Number
Serial number
MAC ID
2D Barcode
CE and FCC logo
Additional Mechanical Notes
Nano supports a screw lock Ethernet cable as described in Ruggedized RJ45 Ethernet Cables.
For information on Nano lens requirements see Optical Considerations.
Each camera side has two mounting holes in identical locations, which provide good grounding capabilities.
Overall height or width tolerance is ±0.05mm.
Temperature Management
Genie Nano cameras are designed to optimally transfer internal component heat to the outer
metallic body. If the camera is free standing (i.e. not mounted) it will be very warm to the touch.
Basic heat management is achieved by mounting the camera onto a metal structure via its
mounting screw holes. Heat dissipation is improved by using thermal paste between the camera
body (not the front plate) and the metal structure.

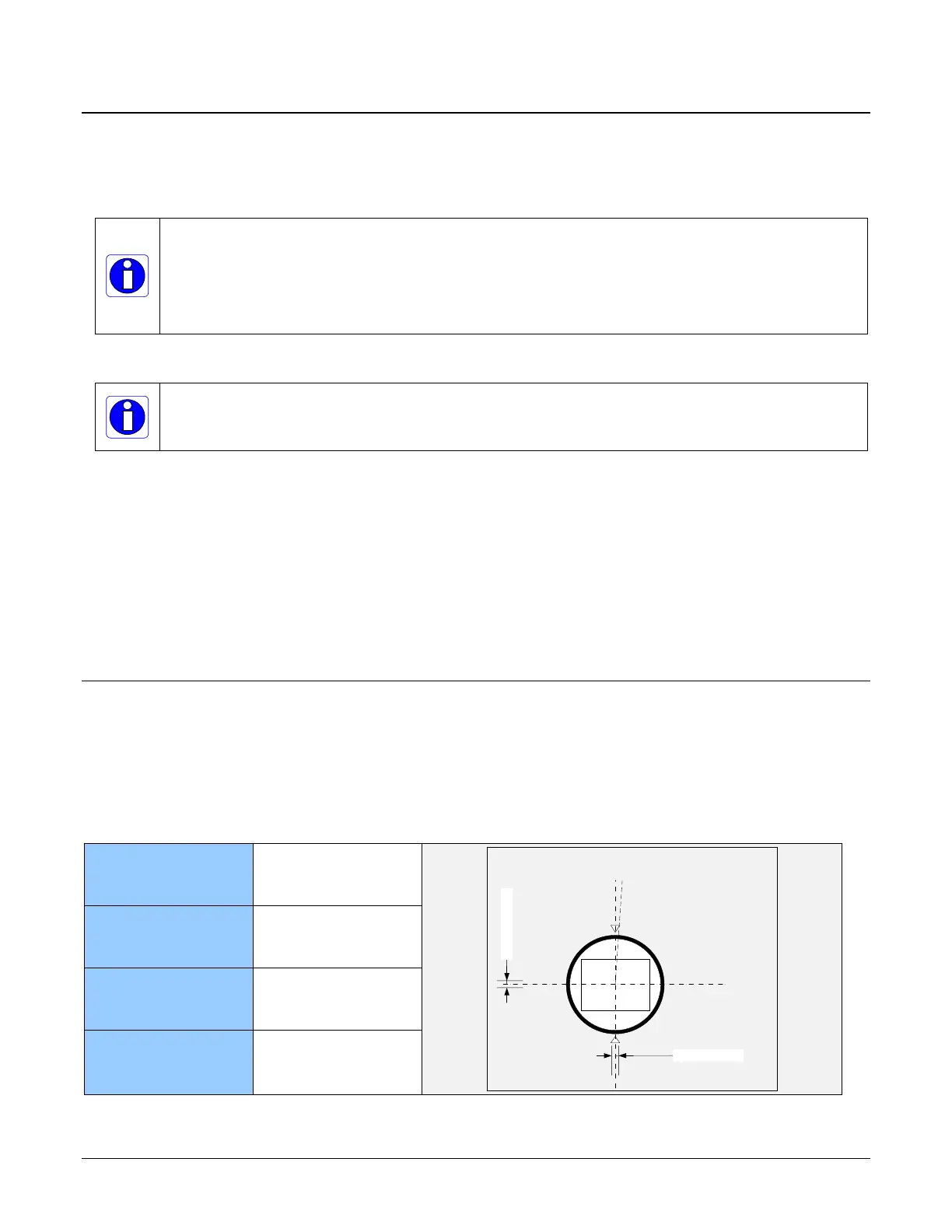

Sensor Alignment Specification
The following figure specifies sensor alignment for Genie Nano where all specifications define the
absolute maximum tolerance allowed for production cameras. Dimensions “x, y, z”, are in microns
and referenced to the Genie Nano mechanical body or the optical focal plane (for the z-axis
dimension). Theta specifies the sensor rotation relative to the sensor’s center and Nano
mechanical.
X variance
+/- 250 microns
(+/-) Y variance
(+/-) X variance
Sensor Alignment Reference
Z variance not shown
(+/-) theta variance
Y variance
+/- 250 microns
Z variance
+/- 300 microns
Theta variance
+/- 1 degree
