Trigger Overlap: Feature Details
The Trigger Overlap feature defines how the Nano handles triggers that might occur more
frequently than the Frame Active period (an exposure plus readout period).
If TriggerOverlap=OFF, then triggers received before the end of the Frame Active period are
ignored. Other TriggerOverlap values are dependent on the Nano model and sensor used.
• TriggerOverlap=Off
• No trigger overlap is permitted.
Diagram Conditions:
• TriggerMode=On
• ExposureMode=Timed
• TriggerActivation=RisingEdge
• TriggerDelay=0
• TriggerSelector=FrameStart
• ExposureAlignment=Synchronous
Trigger Input
Trigger Exclusion Period
Exposure
1
Readout
1
Frame
1 Active period
Trigger Exclusion Period
Exposure 2
Readout 2
Frame 2 Active period
Frame Exposure
Frame Readout

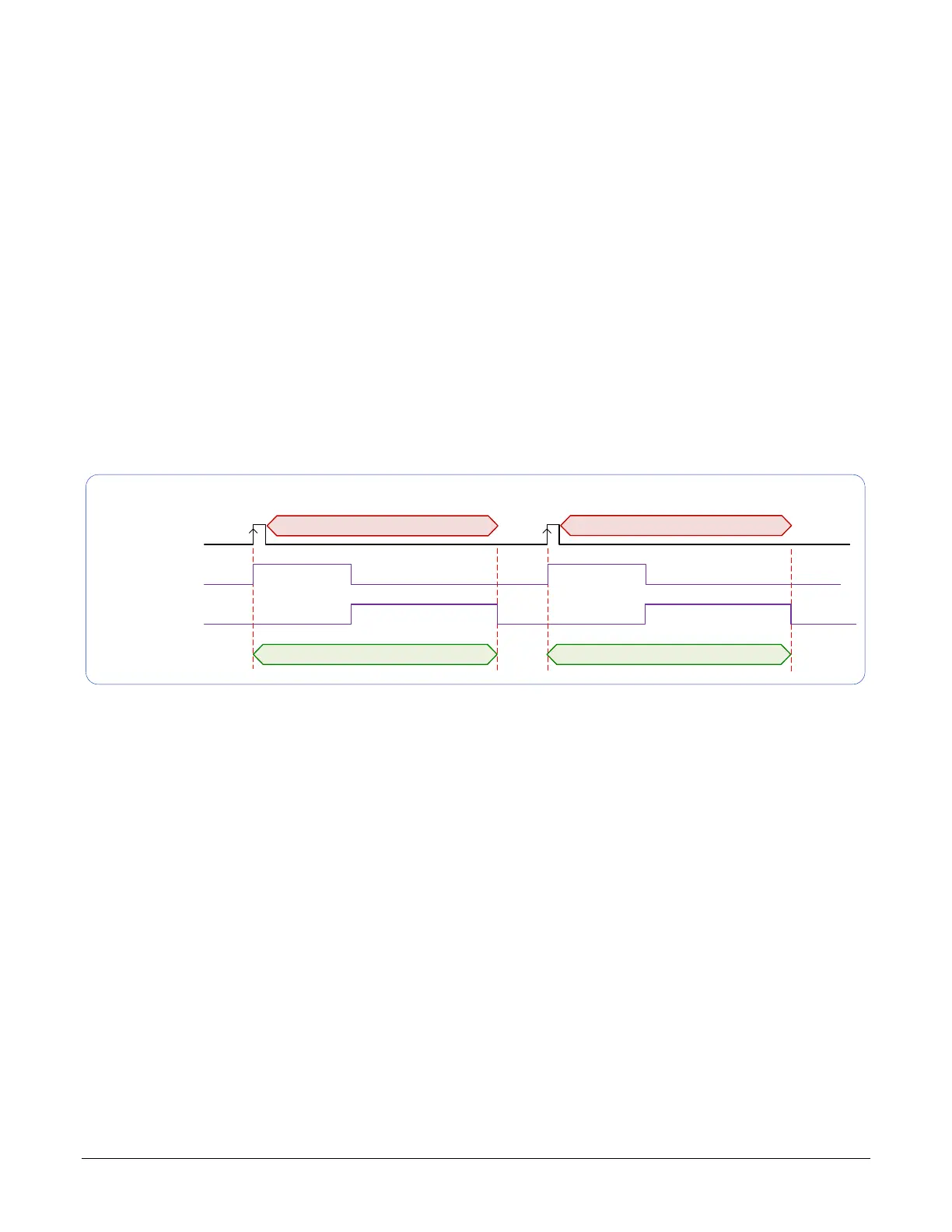

TriggerOverlap=Off
Timing specific to OnSemi models
• Minimum Trigger to Exposure start delay: 3.23µs (shown as 4µs)
• Readout Time:
• M/C2590: 23242µs + 16.5µs
• M/C1930: 10831µs + 16.5µs
• M/C1280: 5676µs + 16.5µs
• M/C800: 2332µs + 16.5µs
• M/C640: 1602µs + 16.5µs
