30 • Sony Sensor Models Nano Series GigE Vision Camera
Firmware Files for M1950
The latest firmware files for all Nano models are available on the Teledyne DALSA support web site:
http://www.teledynedalsa.com/imaging/support/downloads/firmware/
The firmware files for this model are listed below. The xx denotes the build number.
Standard 8-bit Design
“Genie_Nano_Sony_IMX25x_IMX392_2.4M-3.2M-5.1M-9M-12M_Mono_Standard_Firmware_7CA18.xx.cbf”
Standard 12-Bit Design
“Genie_Nano_Sony_IMX25x_IMX392_2.4M-3.2M-5.1M-9M-12M_Mono_STD_12b_Firmware_7CA18.xx.cbf”

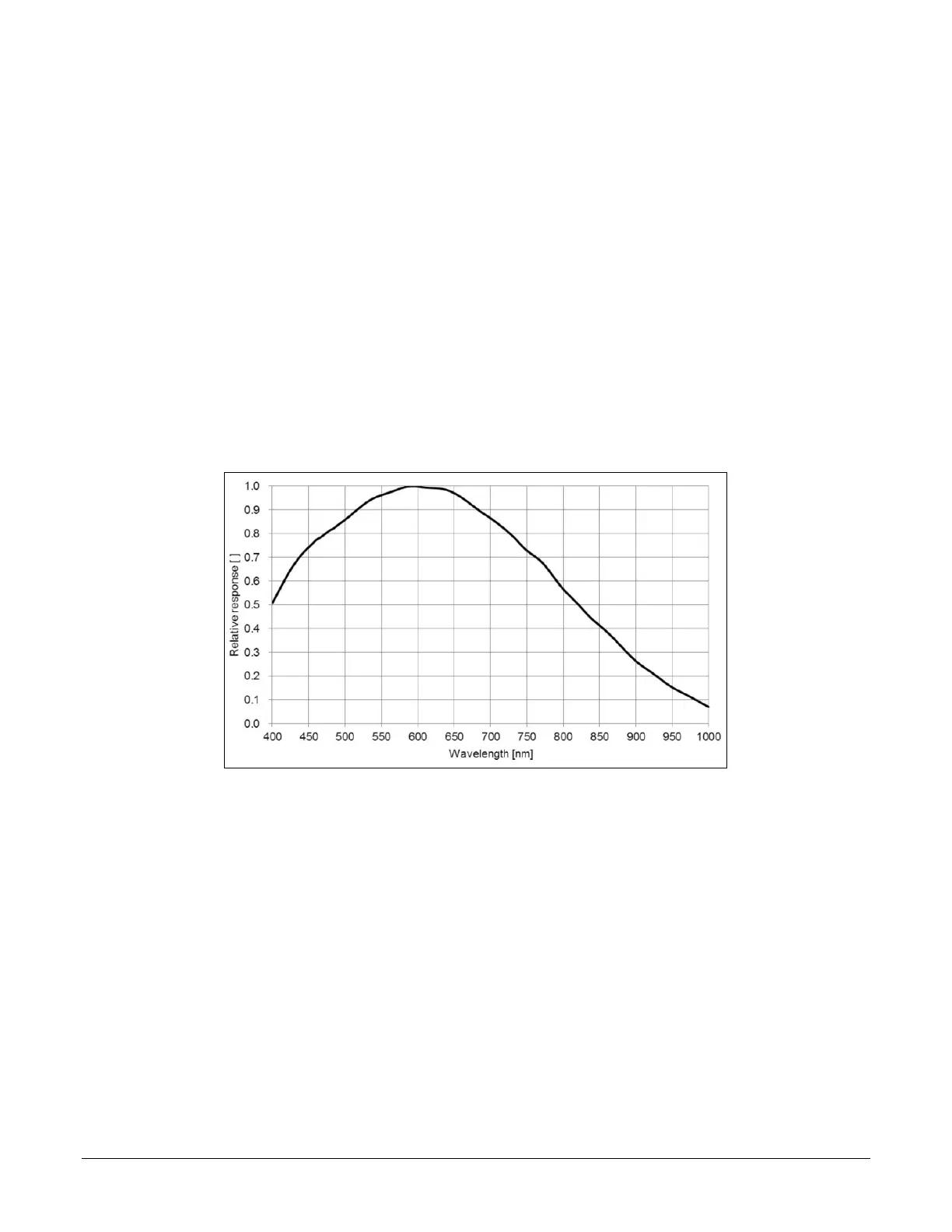

Spectral Response (model M1950)
The response curves describe the sensor, excluding lens and light source characteristics.
Models M1950
