Nano Series GigE Vision Camera Operational Reference • 147
Readout End ReadoutEnd Start Timer on Readout End event.
Frame Start FrameStart Start Timer on Frame Start event.
Frame Trigger ValidFrameTrigger Start Timer on Frame Trigger event.
Frame Burst End FrameBurstEnd Start Timer on Frame Burst End event.
Action 1 Action1 GigEVision Action Command 1. This is a broadcast
command that multiple devices can respond to
simultaneously. (1.03)
Action 2 Action2 GigEVision Action Command 2. This is a broadcast
command that multiple devices can respond to
simultaneously. (1.03)
Line 1 Line1 Start Timer on a transition of I/O Line 1 event.
See Input Signals Electrical Specifications.
Line 2 Line2 Start Timer on a transition of I/O Line 2 event.
Timer 1 End Timer1End Start Timer on Timer End event.
Counter 1 End Counter1End Start Timer on Counter 1 End event.
Timer Line Activation timerStartLineActivation Select the trigger activation mode which starts the
timer.
1.00
Expert
DFNC
Rising Edge RisingEdge Starts timer on rising edge of the selected signal.
Falling Edge FallingEdge Starts timer on falling edge of the selected signal.
Any Edge AnyEdge Starts timer on the falling or rising edge of the
selected signal.
Timer Duration timerDuration Sets the duration (in microseconds) of the timer
pulse.
1.00
Expert
DFNC
Timer Value timerValue Reads the current value (in microseconds) of the
selected timer.
1.00
Expert
DFNC
Timer Reset timerReset Resets the timer to 0 while timerStatus=TimerActive.
Timer then waits for the next timerStartSource event.
1.00
Expert
DFNC

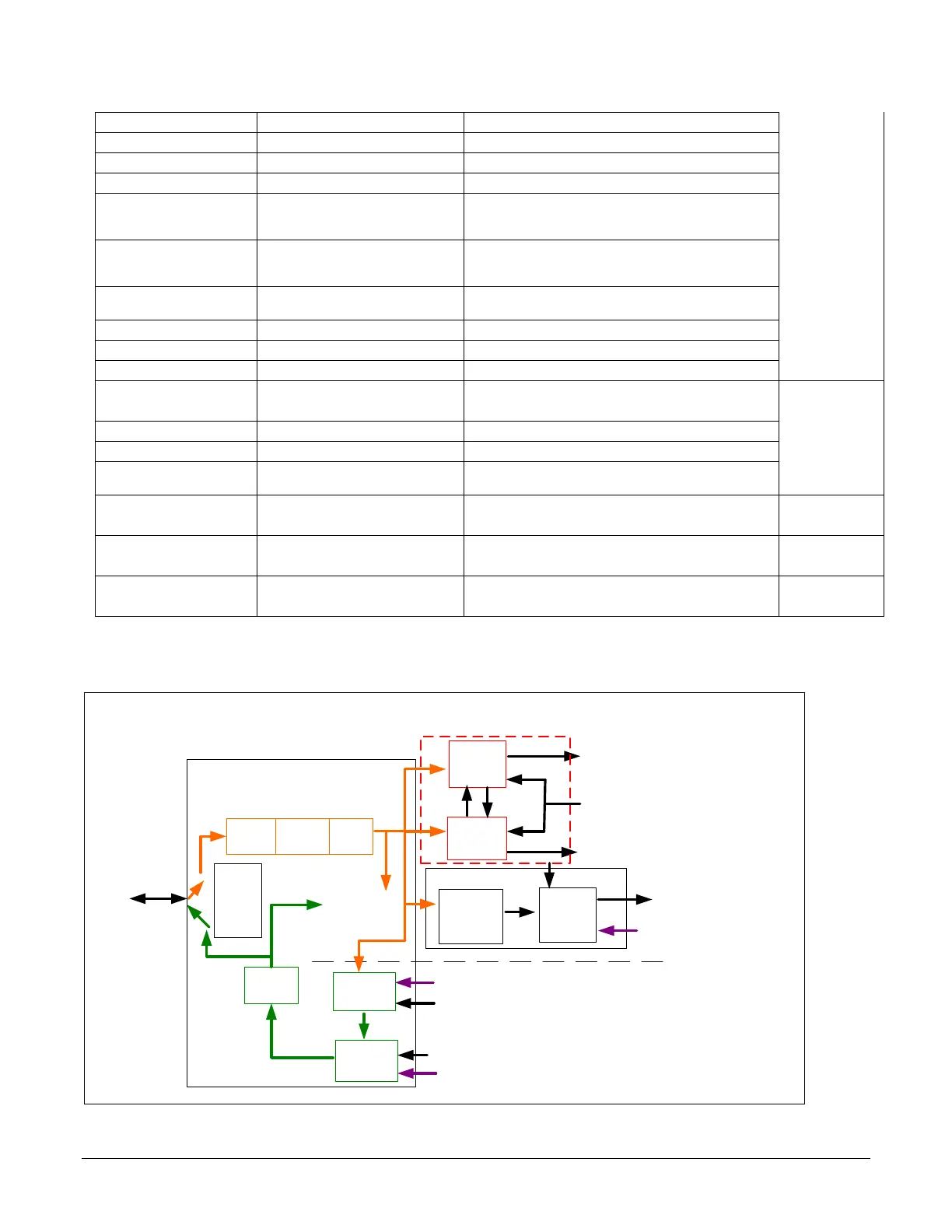

Counter and Timer Group Block Diagram
Line Selector =
Line 1 to 4
Physical
Line
Event Driven
Input
inverter
Output
inverter
Software Driven
Pulse
generator
LineStatus
Trigger
Line
Activation
Trigger Signal
Timer
TimerEnd Event
CounterEnd Event
Software Trigger
Cmd
Line
Mode
Input
or
ouput
Input
Output
Timer and Counter Module
Counter
Line
Debouncer
Event Driven
Trigger
Source
Trigger Module
Output
Line
Source
Signal Driven
Software Driven
Line
Detection
Level
