Lens Options for Models M/C2450/2420, M/C2050/2020

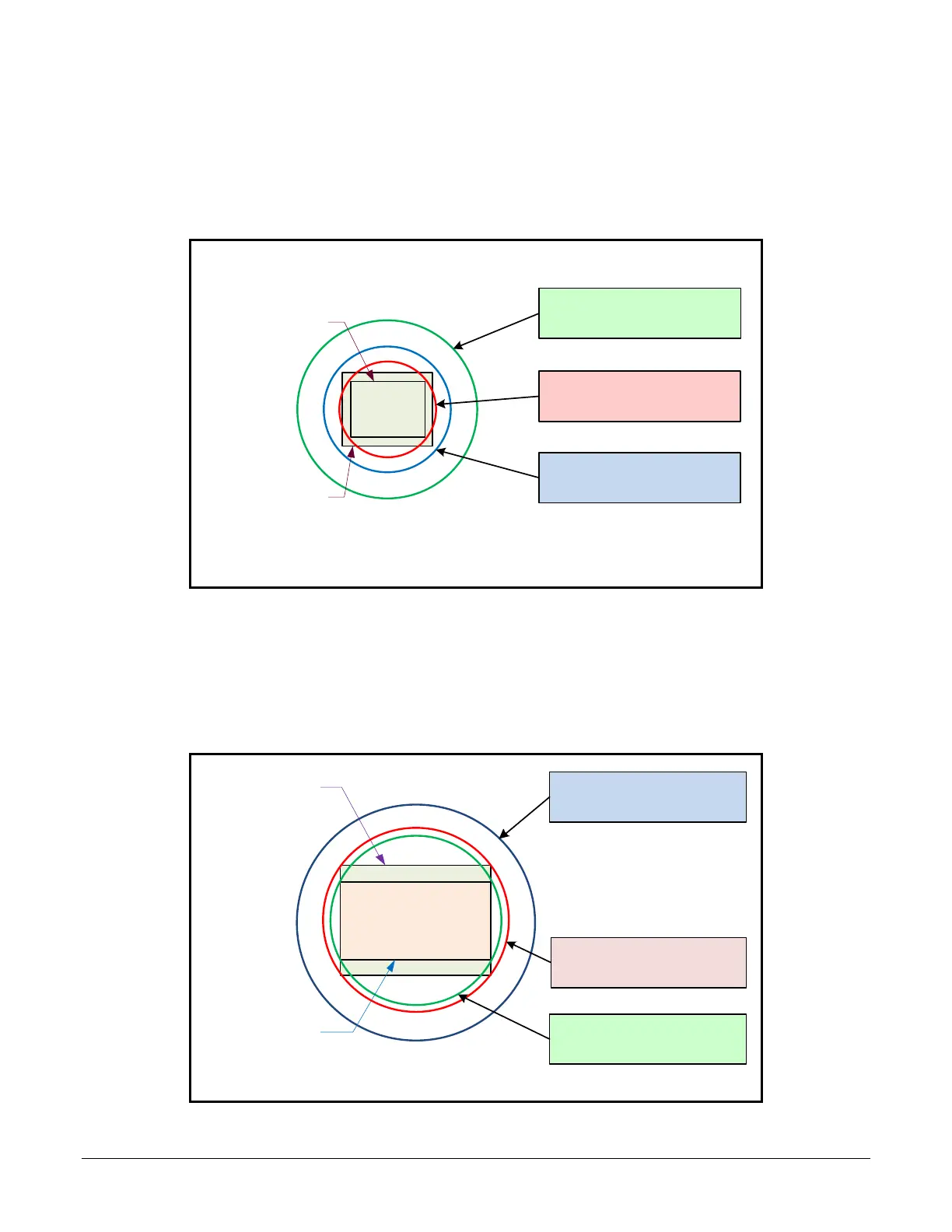

• The following figure shows the lens image circles relative to Genie Nano models using the
Sony IMX250/264 and IMX252/265 sensors, in color or monochrome versions.
• A typical 2/3” lens will fully illuminate these sensors. A smaller 1/1.8” lens could be used
with Models 2050/2020.
1" Lens (~16mm)
Image Circle
2/3" Lens (~11mm)
Image Circle
Models 2050/2020
Models 2450/2420
1/1.8" Lens (~9mm)
Image Circle
Lens Options for Models M/C4060/4030, M/C4040/4020
• The following figure shows the lens image circles relative to Genie Nano models using the
Sony IMX255 (models 4060), IMX253 (models 4040), IMX267 (models 4030), and IMX304
(models 4020) sensors, in color or monochrome versions.
• A typical 1.1” lens will illuminate both sensors models while the 1” lens should only be used
with models 4060 & 4030 to avoid image vignetting.
1.3" Lens (~22.5mm)
Image Circle
Models
4040 & 4020
(17.6mm diagonal)
Models
4060 & 4030
(16.1mm diagonal)
1" Lens (~16mm)
Image Circle
1.1" Lens (~17mm)
Image Circle
