258 • Technical Specifications Nano Series GigE Vision Camera

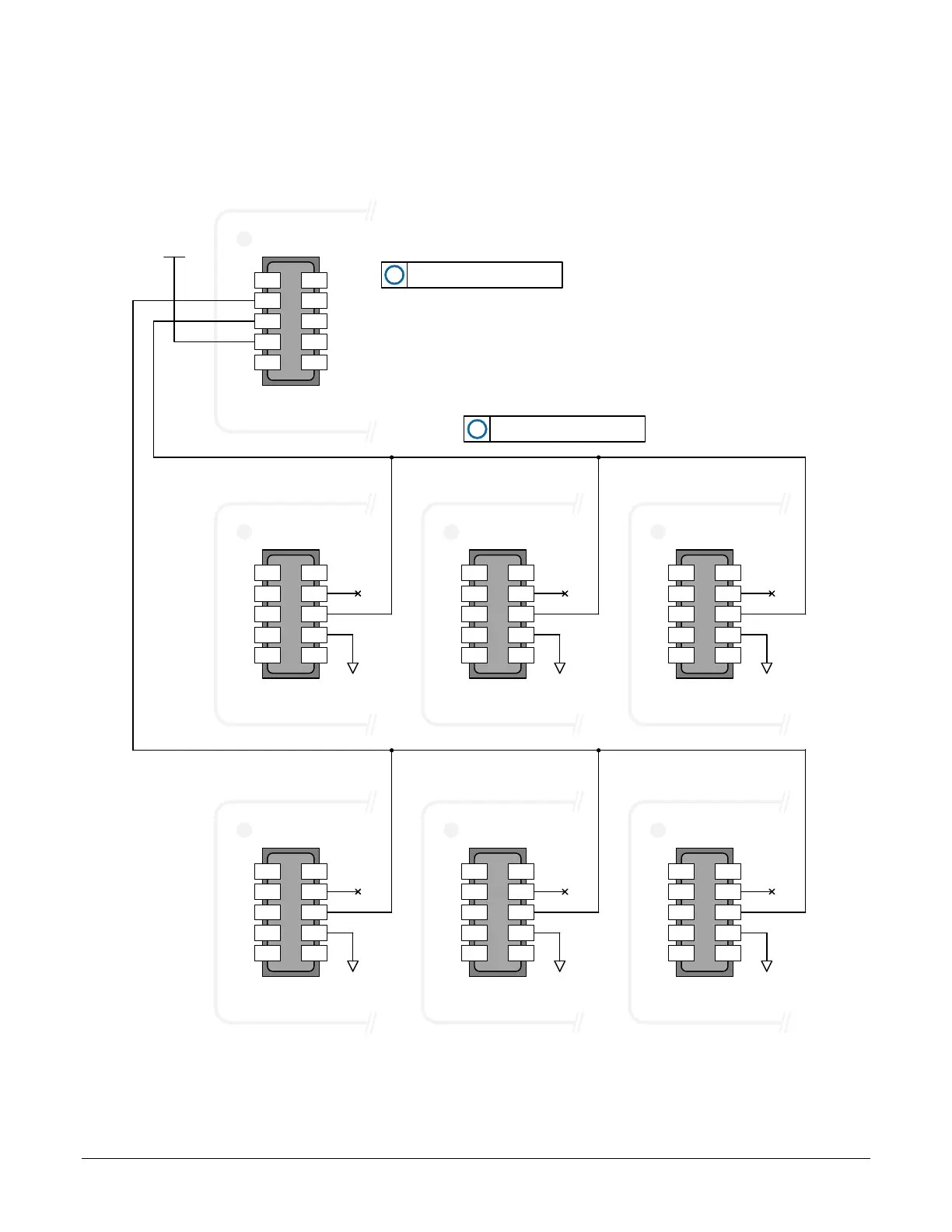

Using Nano Outputs to drive other Nano Inputs
• A synchronization method where one Nano camera signals other Nano cameras.
• Note: One Nano output can drive a maximum of three Nano inputs, as illustrated below.
User IO
Power
Camera IO
Interface
10
9
8
7
6
5
4 3
2
1
(GPO_CMD_PWR)
(GPO_P0)
(GPO_P1)
Do not exceed more then three
slave cameras per GPO line.
!
Camera IO
Interface
10 9
8 7
6 5
4 3
2 1
Camera (Slave 1)
Camera IO
Interface
10
9
8 7
6 5
4 3
2 1
Camera (Slave 2)
Camera IO
Interface
10 9
8 7
6 5
4
3
2 1
Camera (Slave 3)
Camera IO
Interface
10 9
8 7
6
5
4 3
2 1
Camera (Slave 4)
Camera IO
Interface
10 9
8 7
6 5
4 3
2 1
Camera (Slave 5)
Camera IO
Interface
10 9
8 7
6 5
4 3
2 1
Camera (Slave 6)
User IO
Ground
(GPI_CMD_GND)
(GPI_P0)
(GPI_P1)
User IO
Ground
(GPI_CMD_GND)
(GPI_P0)
(GPI_P1)
User IO
Ground
(GPI_P0)
(GPI_P1)
GPI P0 or GPI P1 can be used as
input trigger.
!
User IO
Ground
(GPI_CMD_GND)
(GPI_P0)
(GPI_P1)
User IO
Ground
(GPI_P0)
(GPI_P1)
User IO
Ground
(GPI_P0)
(GPI_P1)
(GPI_CMD_GND)
(GPI_CMD_GND)
(GPI_CMD_GND)
