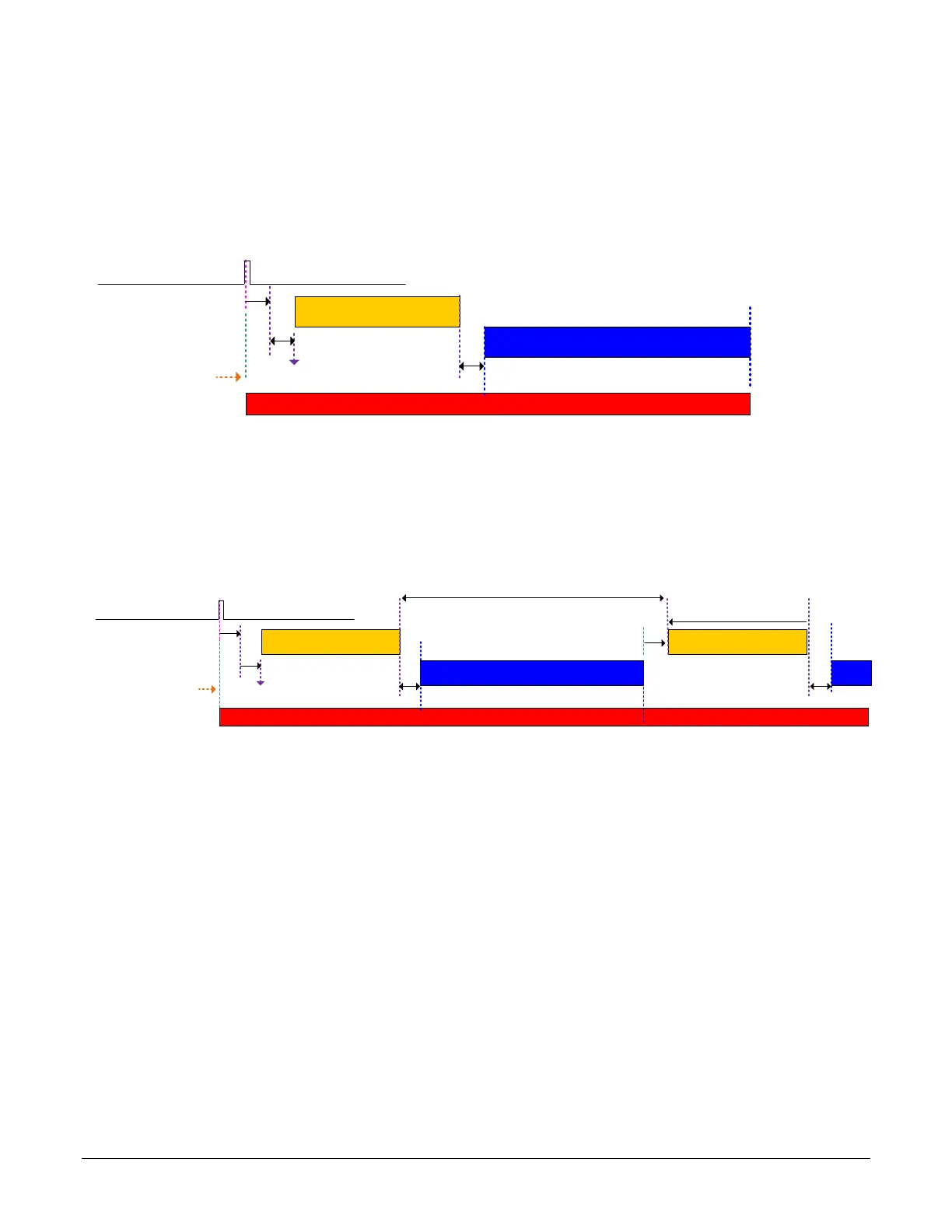

Reset Mode – Single Frame Exposure
See the specification table below for the timing variables A, B and C shown in the graphic.
Exposure Time
ReadOut Time
ExposureAlignment = Reset
ExposureStart Event
ExposureEnd Event
FrameTrigger Event
Invalid Trigger Period
FrameStart Event
ExposureDelay
a
b
c
ReadOut Start Event
Timestamp Latched
ReadOut End
Event
Reset Mode – 2 Frame Burst Exposure
See the specification table below for the timing variables A, B, C and D shown in the graphic.
Exposure Time 1
ReadOut Time 1
ExposureAlignment = Reset
ExposureStart Event
FrameTrigger Event
Invalid Trigger Period
FrameStart Event
ExposureDelay
a
b
c
ReadOut Start Event
Timestamp Latched
Exposure Time 2
b
ReadOut End Event
Trigger BurstMode = 2 frames
FrameStart Event
ExposureStart Event
Exposure Time
d
ExposureEnd Event
2
c
