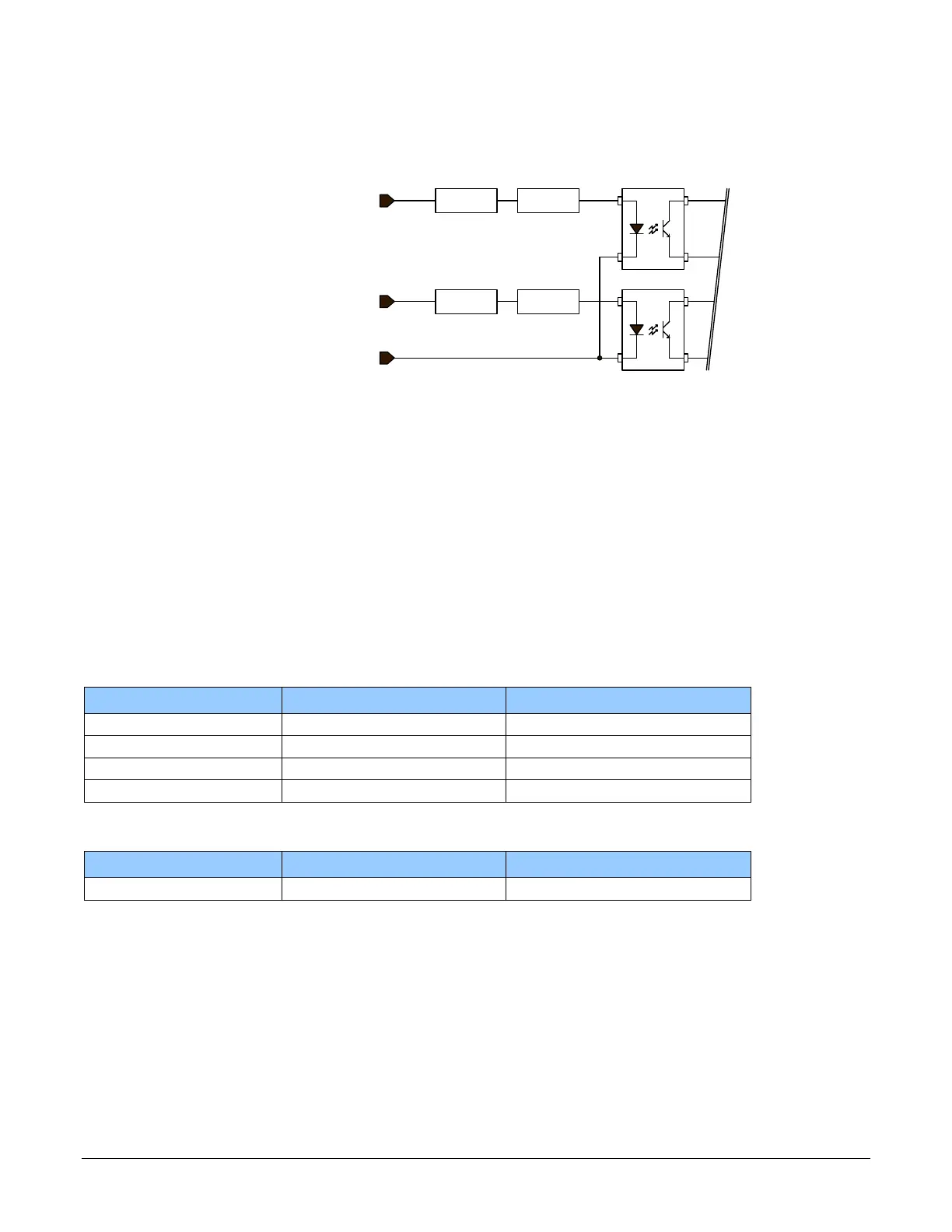

Nano Series GigE Vision Camera Technical Specifications 251
Input Signals Electrical Specifications
External Inputs Block Diagram
Protection
Current
Limiter
Protection
Current
Limiter
Input
2
(
pin
7)
Input
1
(pin 5)
Common Ground (pin 3)
External Input Details
Opto-coupled with internal current limit.
Single input trigger threshold level
(TTL standard: <0.8V=Logical LOW, >2.4V=Logical HIGH. See lineDetectionLevel feature).
Used as trigger acquisition event, counter or timestamp event, or integration control.
User programmable debounce time from 0 to 255µs in 1µs steps.
Source signal requirements:
Single-ended driver meeting TTL, 12V, or 24V standards (see table below)
If using a differential signal driver, only one input can be used due to the shared input
common (see details below)
External Input DC Characteristics
Operating Specification Minimum Maximum
Input Voltage +3 V +36 V
Input Current 7 mA 10.1 mA
Input logic Low 0.8 V
Input logic High 2.4 V
Absolute Maximum Range before Possible Device Failure
Absolute Ratings Minimum Maximum
Input Voltage 36 Volts +36 Volts
