Lens Options for Models M/C1450

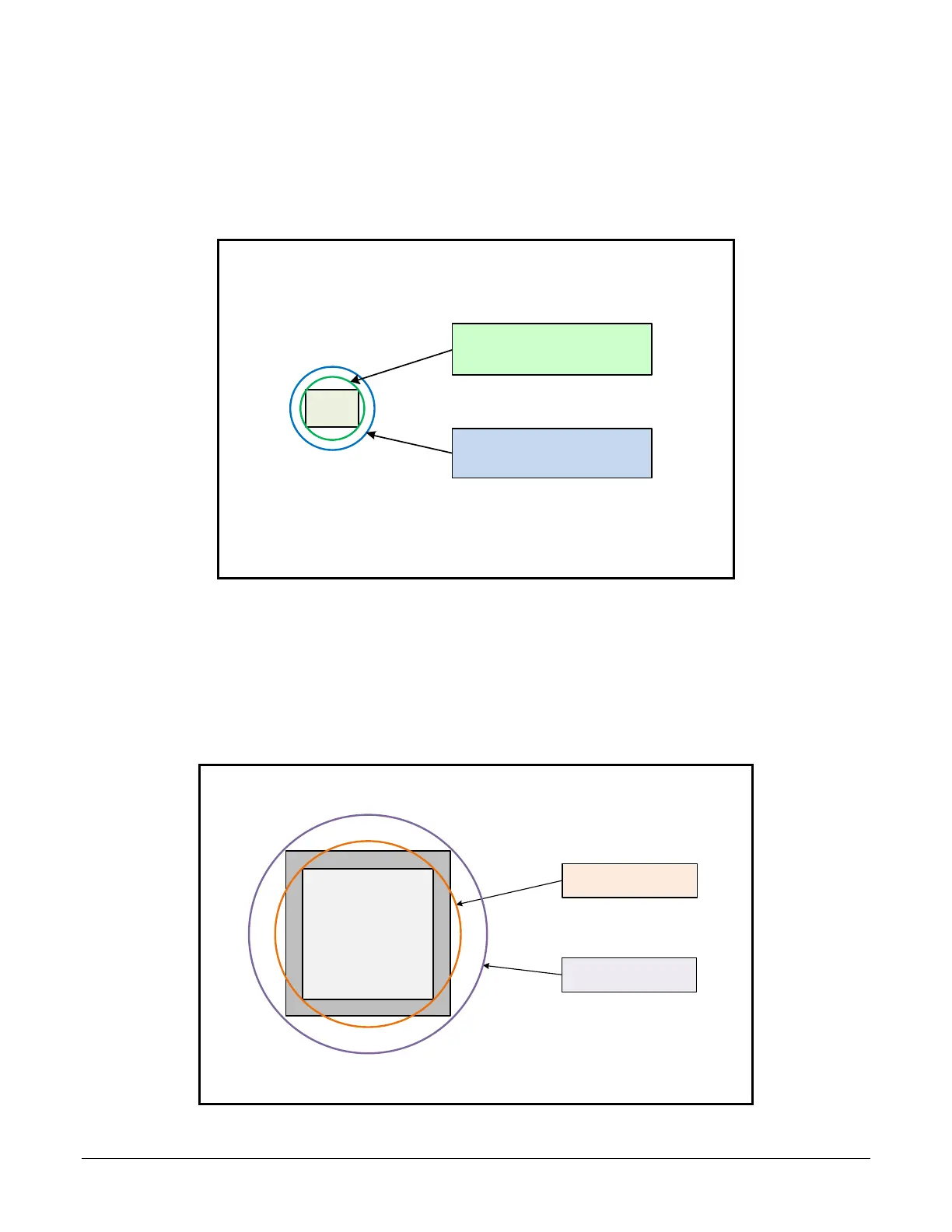

• The following figure shows the lens image circles relative to Genie Nano models using the
Sony IMX273 sensor.
• A typical 1/3” lens will almost fully illuminate this sensor with just a small amount of
vignetting in the corners. A ½” lens exceeds the required image circle.
1
/
2
" Lens
(~8
mm)
Image Circle
1
/
3
"
Lens
(~
6
mm)
Image Circle
Lens Options for XL Models M/C5100, M/C4090
• The following figure shows the lens image circles relative to Genie NanoXL models using the
OnSemi Python 25K and Python 16K sensors.
• These NanoXL models have a M42 screw mount where M42 lens or F-mount lens (via an
adapter) need to have image circles exceeding the diameter of either of these larger
sensors.
26.2mm minimum
Image Circle
32.6mm minimum
Image Circle
Model 4090
Model 5100
