308 • Addendums Nano Series GigE Vision Camera
Addendums
This section provides supplemental information about alternative Nano specifications pertaining to
various models or legacy firmware revisions. For purchasing information and lead times of optional
Nano models that are not part of the typical production cycle, contact Teledyne DALSA Sales.
10-pin I/O Connector Pinout Details (Special Order)
There are two special order Nano models as detailed below:
Nano: “G3-GM2… or G3-GC2…” part numbers denote optional “1 input / 3 output” special order
models.
Nano: “G3-GM4… or G3-GC4…” part numbers denote optional “Serial Port” special order models.
Important: Serial port models do not support PoE camera power, therefore they must use
external power connected via the I/O connector. This avoids grounding issues between PoE sources
and the serial port UART.

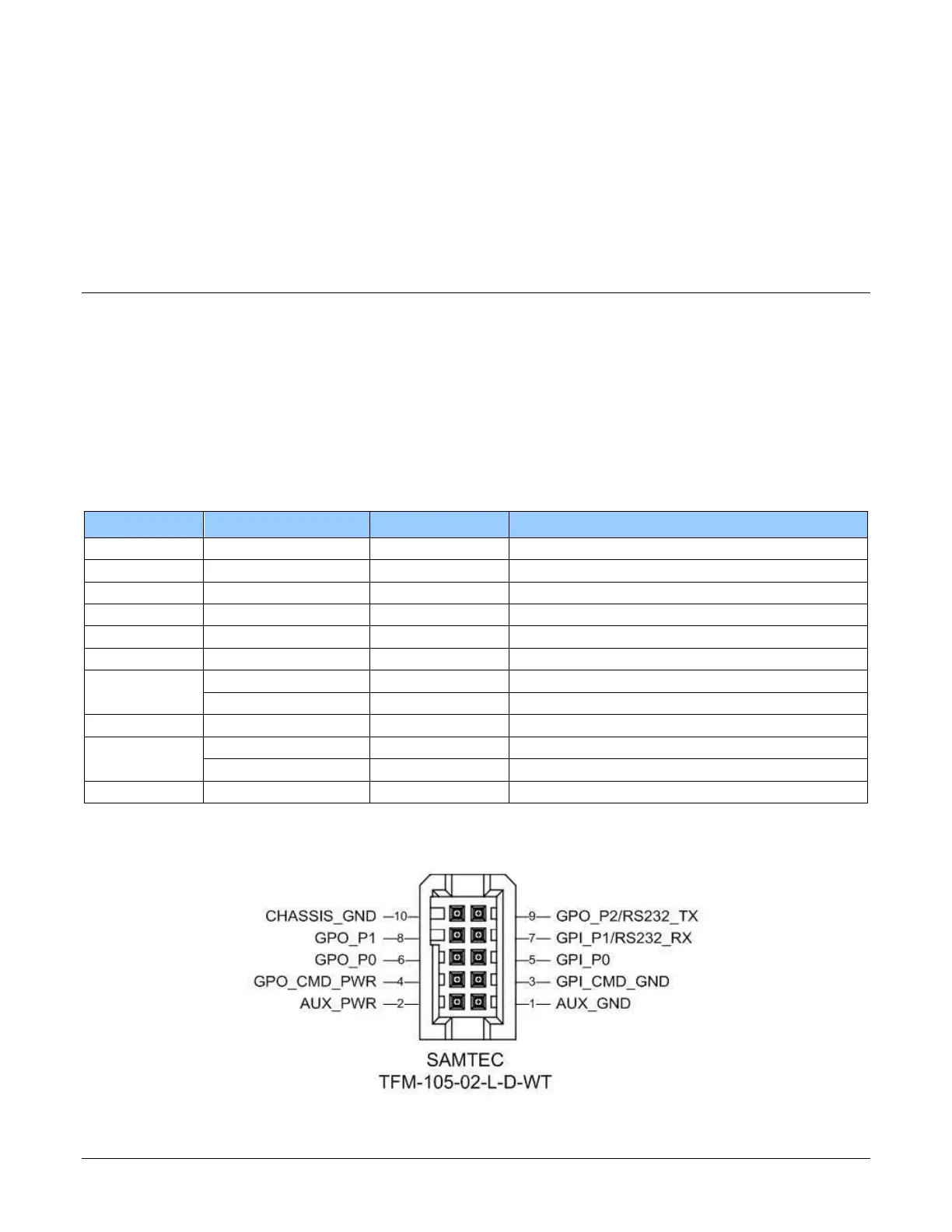

Pin Number Genie Nano Direction Definition
1 PWR-GND — Camera Power – Ground
2 PWR-VCC — Camera Power – DC +10 to +36 Volts
3 GPI-Common — General Input Common Ground
4 GPO-Power — General Output Common Power
5 GPI 1 In General External Input 1
6 GPO 1 Out General External Output 1
7 RS232_RX In Serial Port (RS-232) Input for G3-Gx4 models
Reserved — Input not available with G3-Gx2 models
8 GPO 2 Out General External Output 2
9 RS232_TX Out Serial Port (RS-232) Output for G3-Gx4 models
GPO 3 Out General External Output 3 for G3-Gx2 ‡
10 Chassis Camera Chassis
‡ Note: Output 3 only supports Software Controlled logic High or Low signals.
