Nano Series GigE Vision Camera Technical Specifications • 243
Technical Specifications
Both 2D and 3D design drawings are available for download from the Teledyne DALSA web site
[ http://www.teledynedalsa.com/genie-nano ].
Mechanical Specifications — C & CS Mount

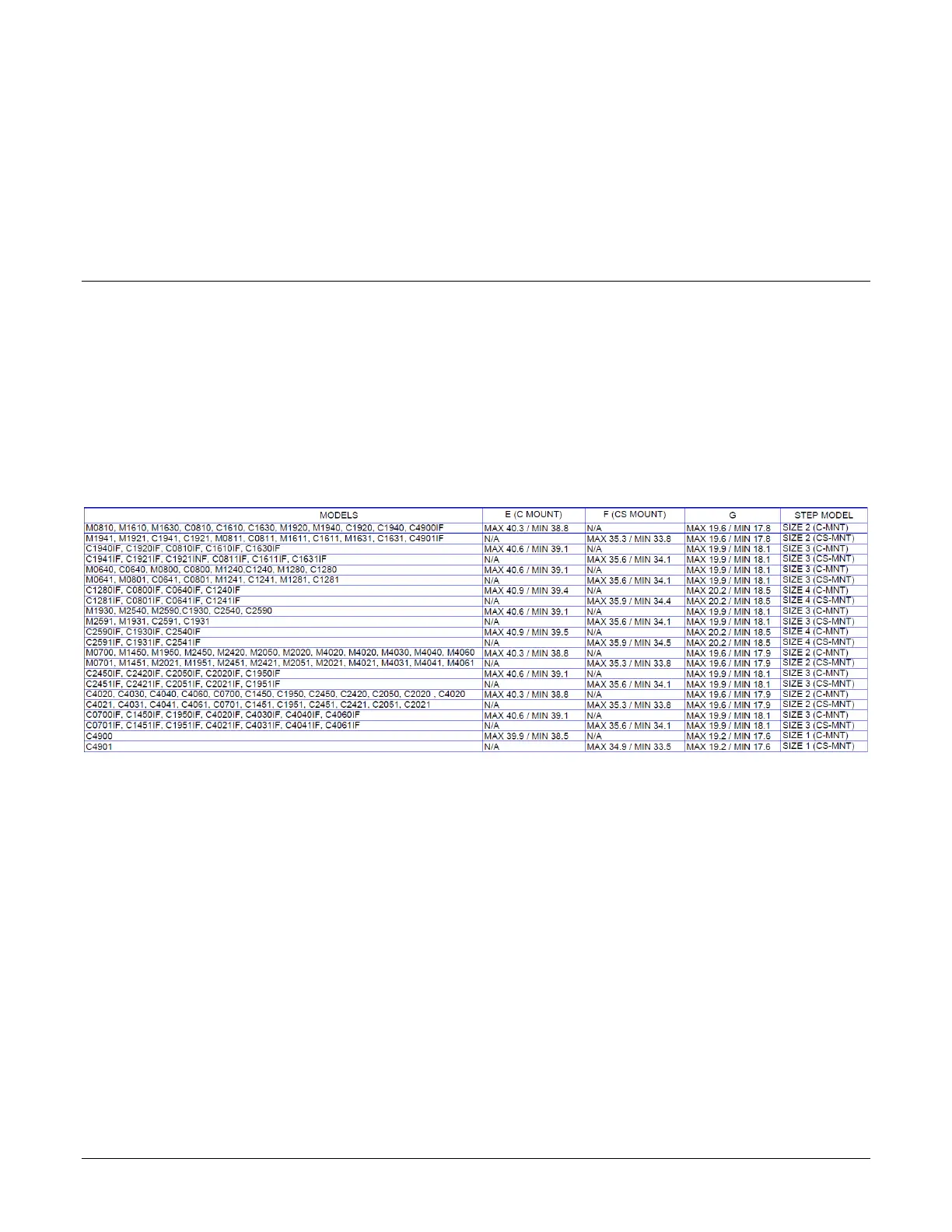

Nano models with C and CS mounts have slight variations to their body depths as detailed in the
following table. The three columns labeled “E”, “F”, and “G” list the dimensional depth variations
(in mm) corresponding to the same labels shown on the mechanical specification drawing shown on
the next page.
These physical variations compensate for different sensors boards and whether a model is shipped
with an IR filter, so as to maintain a constant back focal specification. See this technical description
for information on back focal variances when using IR or other filters between the lens and sensor.
To Next Page
