Dalsa Genie Nano Series User Manual

254 • Technical Specifications Nano Series GigE Vision Camera

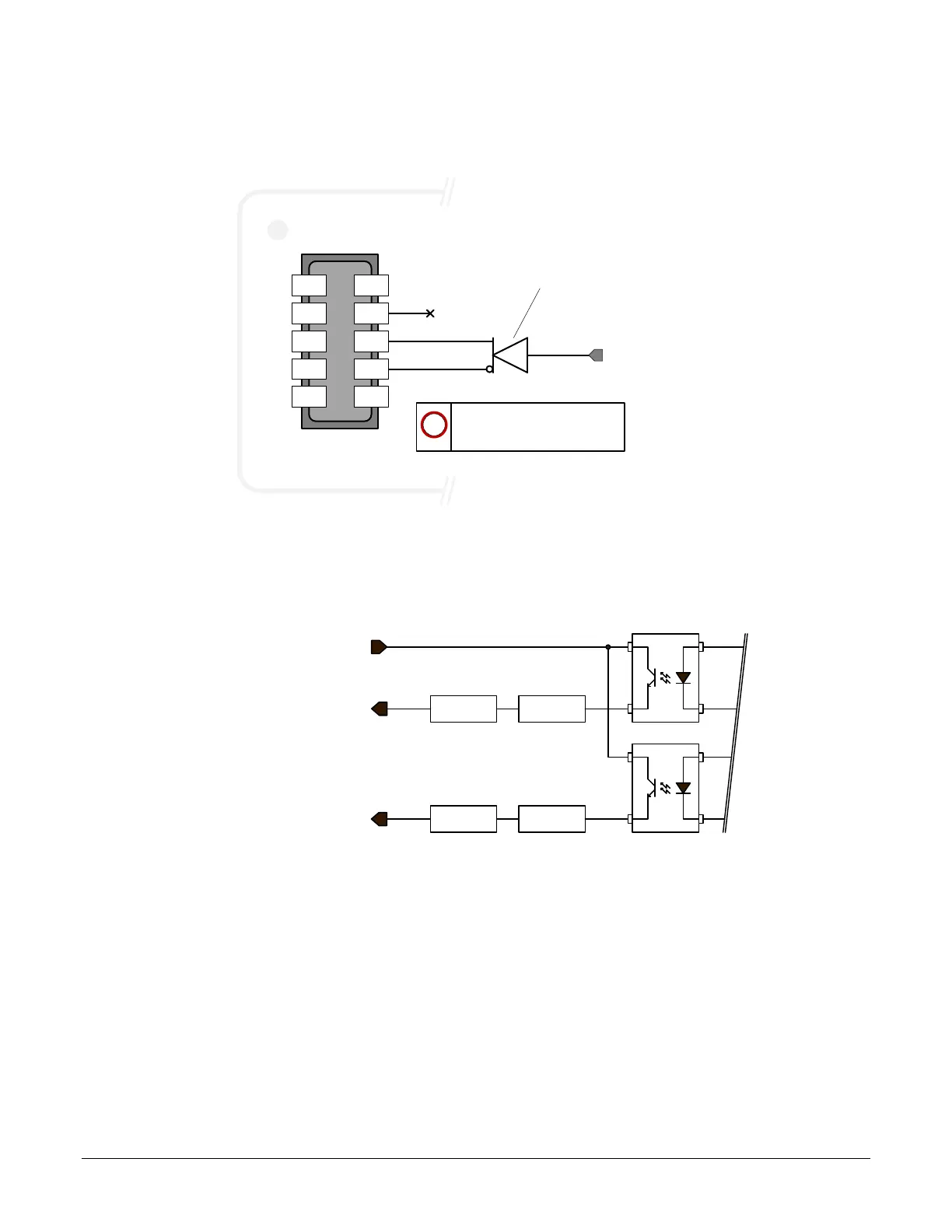

External Inputs: Using a Balanced Driver
• Warning: Only one External Signal can be used (input 1 or input 2).
RS-422
Compatible
Transmitter
10 9
8
7
6
5
4 3
2 1
Camera IO
Interface
Only one Input can be used
in this configuration.
!
External Signal
( Common Ground )
( Input 1 )
( Input 2 )
Output Signals Electrical Specifications
External Outputs Block Diagram
Protection
Current
Limiter
Protection
Current
Limiter
Output 2
(pin
8)
Output 1
(pin
6)
Output Common Power
(
pin 4)
External Output Details and DC Characteristics
• Programmable output mode such as strobe, event notification, etc
(see outputLineSource feature)
• Outputs are open on power-up with the default factory settings
• A software reset will not reset the outputs to the open state if the outputs are closed
• A user setup configured to load on boot will not reset the outputs to the open state if the
outputs are closed
• No output signal glitch on power-up or polarity reversal
• Typical Operating Common Power Voltage Range: +3V to 28Vdc at 24mA
• Maximum Common Power Voltage Range : ±30Vdc
• Maximum Output Current: 36mA
