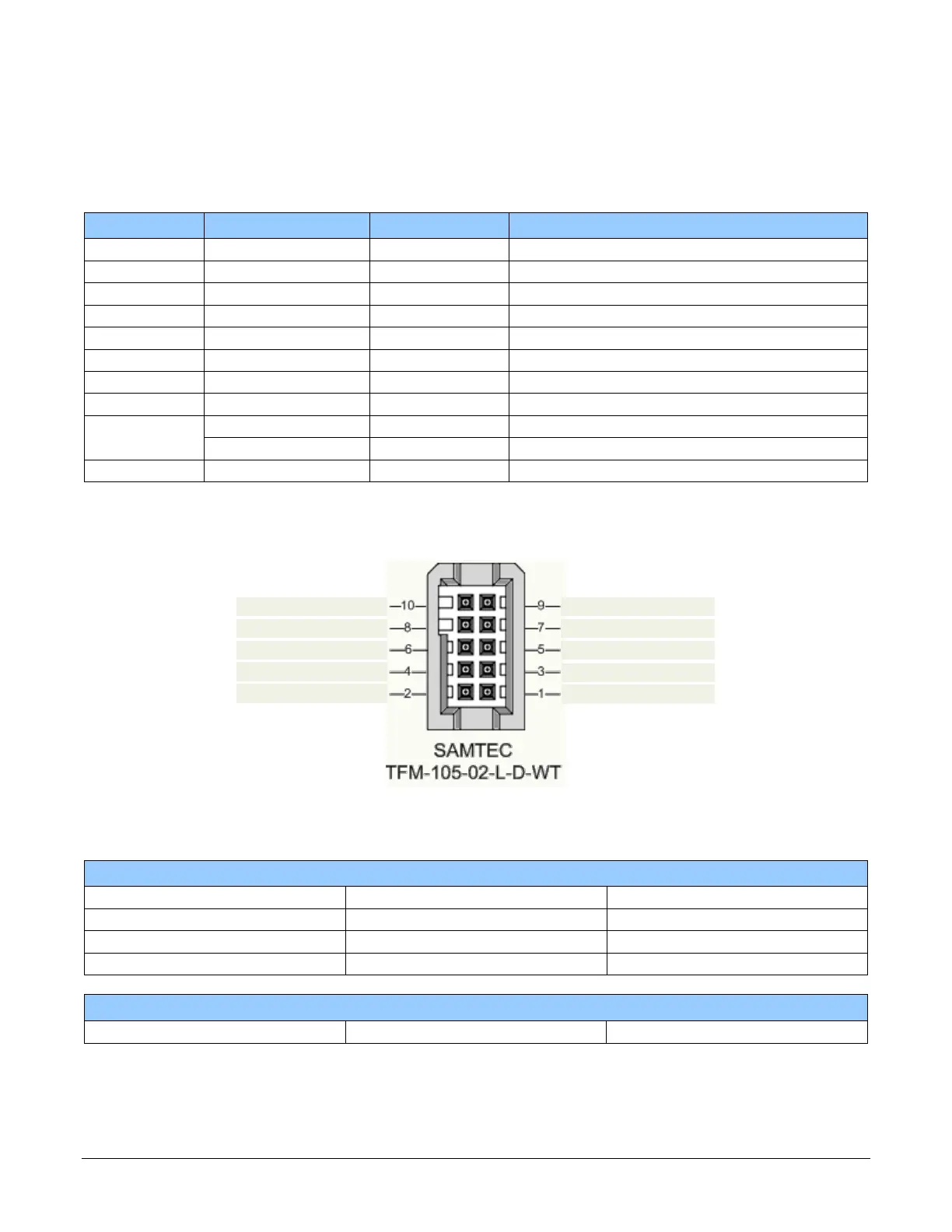

248 Technical Specifications Nano Series GigE Vision Camera
10-pin I/O Connector Pinout Details (Standard Models)
Teledyne DALSA makes available optional I/O cables as described in Optional Cable Accessories.
Contact Sales for availability and pricing.
Pin Number Genie Nano Direction Definition
1 PWR-GND Camera Power Ground
2 PWR-VCC Camera Power DC +10 to +36 Volts
3 GPI-Common General Input Common Ground
4 GPO-Power General Output Common Power
5 GPI 1 In General External Input 1
6 GPO 1 Out General External Output 1
7 GPI 2 In General External Input 2
8 GPO 2 Out General External Output 2
9 Reserved
GPO 3 Out NanoXLGeneral External Output 3 for G3-Gx3
10 Chassis Camera Chassis
NanoXL:G3-Gx3” models come standard with 2 Inputs and 3 Outputs. Output 3 only supports
Software Controlled logic High or Low signals.
Chassis
GPO 2
GPO 1
GPO
-Power
PWR-VCC
PWR-GND
GPI-Common
GPI 1
GPI 2
GPO 3 (NanoXL)
See AC Characteristics of 1 Input / 3 Output Models for additional information.
Camera DC Power Characteristics
DC Operating Characteristics
Input Voltage +10 Volts minimum
Input Power Consumption @ +12 Volt Supply 3.99 Watts typical
Input Power Consumption @ +24 Volt Supply 3.96 Watts typical
Input Power Consumption @ +48 Volt Supply 4.22 Watts typical
Absolute Maximum DC Power Supply Range before Possible Device Failure
Input Voltage 58 Volt DC +58 Volts DC
