Dalsa Genie Nano Series User Manual

138 • Operational Reference Nano Series GigE Vision Camera
• TriggerOverlap= EndOfExposure or Readout
• This special condition describes the case of a short exposure relative to the readout period. A
trigger received before the end of the frame readout is latched and delayed until such time that
the following short exposure will end with the end of the previous frame readout. The second
readout period will then start immediately.
Diagram Conditions:
• TriggerMode=On
• ExposureMode=Timed
• TriggerActivation=RisingEdge
• TriggerDelay=0
• TriggerSelector=FrameStart
• ExposureAlignment=Synchronous

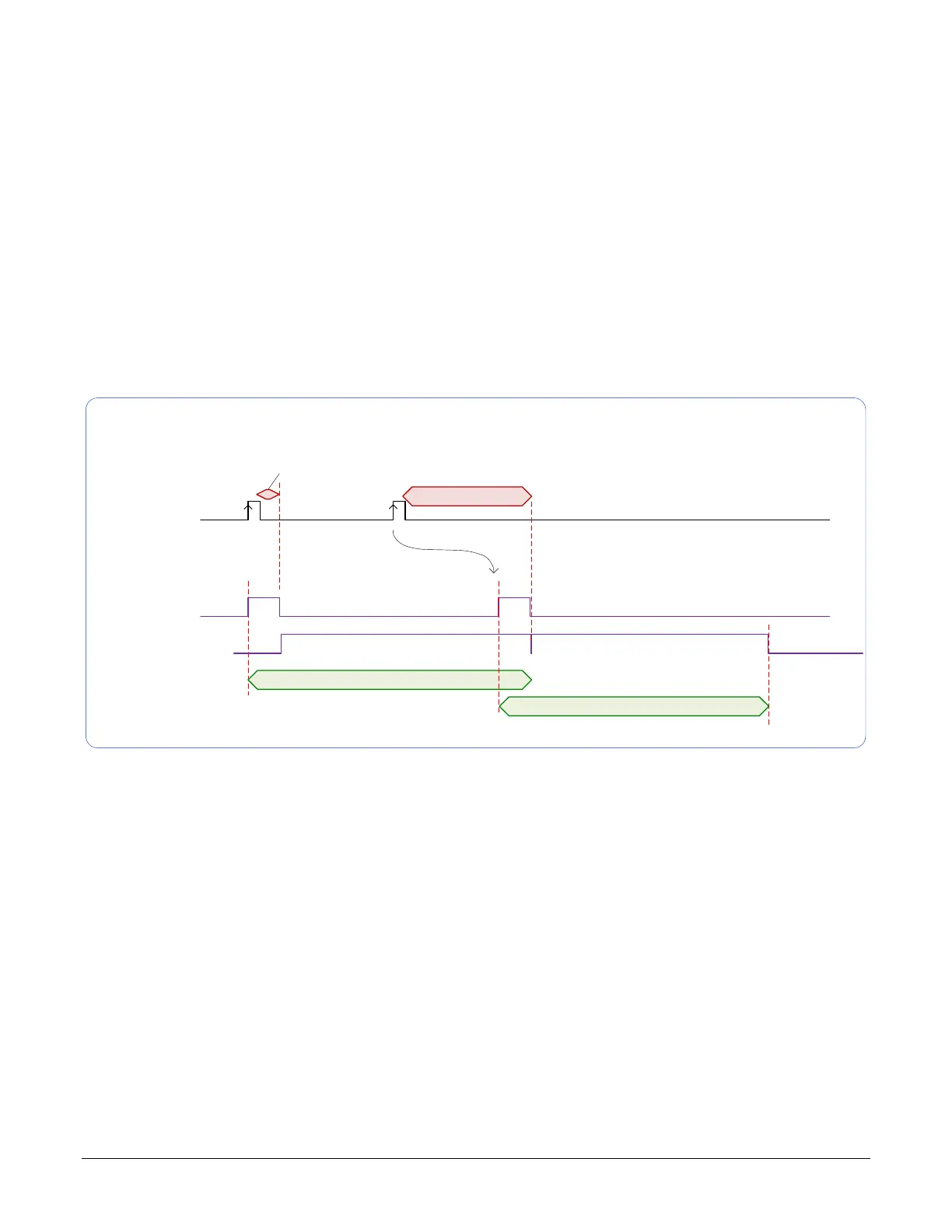

Trigger Input
Exposure 1
Readout 1
Frame 1 Active period
Exposure 2
Readout 2
Frame 2 Active period
Frame Exposure
Frame Readout
TriggerOverlap= EndOfExposure or Readout
Trigger Exclusion Period
Trigger Exclusion Period
Trigger Latched
and Delayed
