Develop ineo 250 - Inverter Board

Field Service Ver. 1.0 Aug. 2005 7. Other
63
bizhub 200/250/350Maintenance
7.3.20 Inverter Board
1. Remove the IR Upper Left Cover.
☞ 49
2. Remove the Front Holding Bracket.
☞ 49
3. Remove the Original Glass.
☞ 49

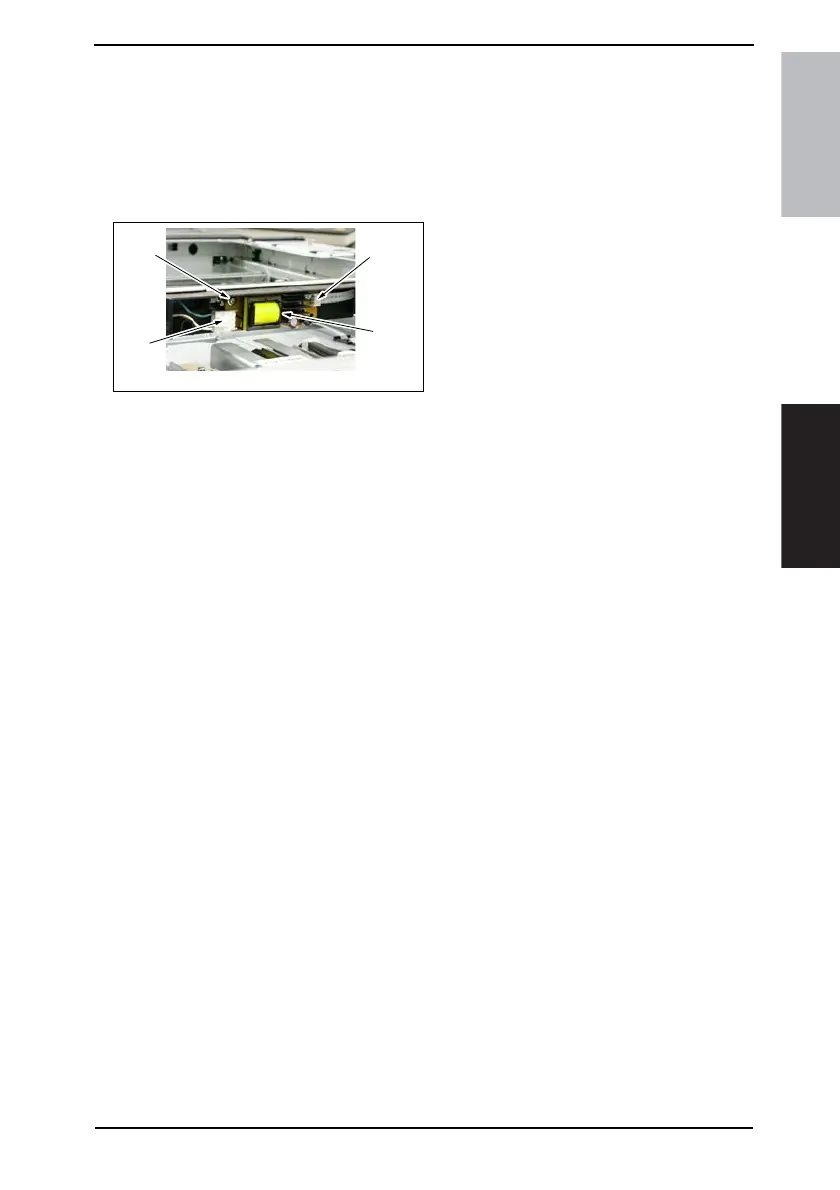

4. Disconnect the connector [1] and
remove the flat cable [2], screw [3],
and the Inverter Board [4].
4040F2C695DA
[1]
[3]
[2]
[4]
