Field Service Ver. 1.0 Aug. 2005 1. System configuration
1
bizhub 200/250/350General
General
1. System configuration

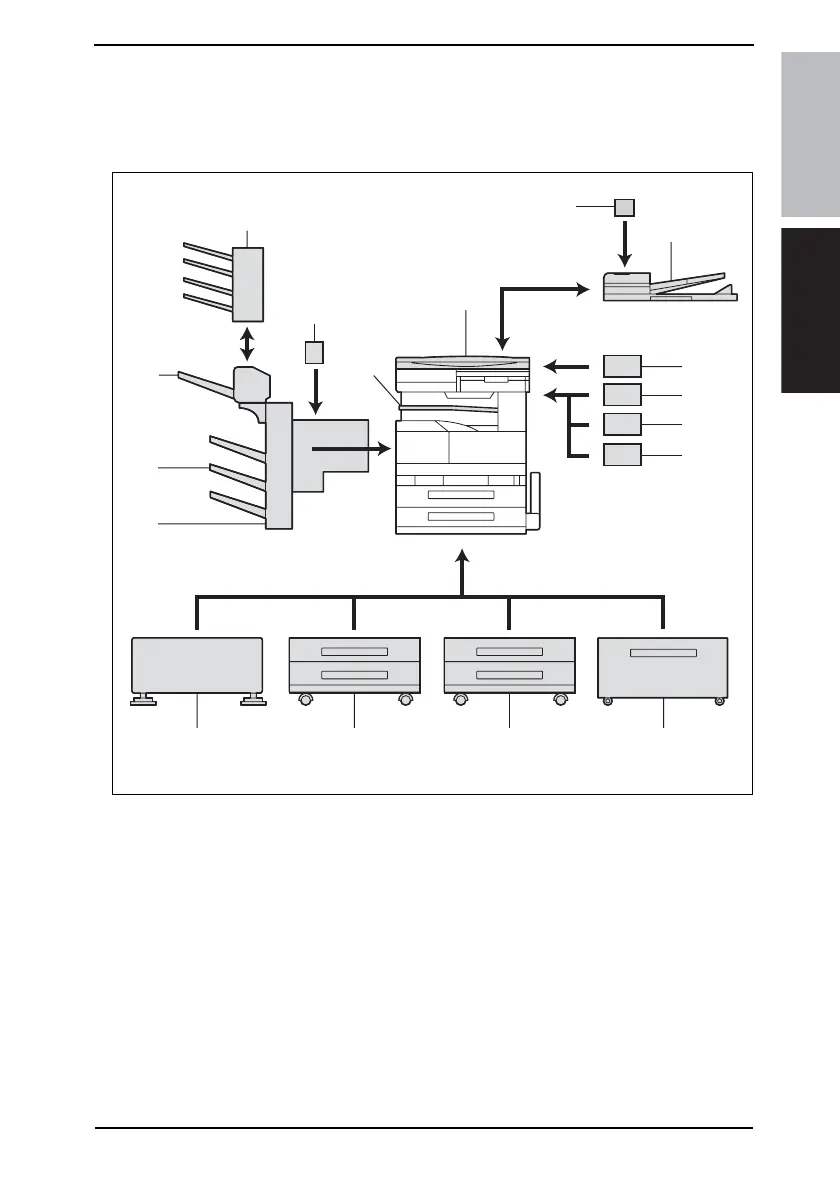

1/2 System Front View
*1:Key Counter Only
*2:Mount Pleate Only
[1] Original Cover (OC-502) [10] Paper Feed Cabinet (PC-101)
[2] Stamp Unit (SP-501) [11] Desk (DK-501)
[3]
Reverse Automatic Document Feeder
(DF-605)
[12] Finisher (FS-508)
[4] Data Controller (D-103) [13] Output Tray (OT-601)
[5] Key Counter Kit 4 [14] Saddle Sticher (SD-502)
[6] Key Counter *1 [15] Job Separator (JS-502)
[7] Key Counter Mount Kit *2 [16] Punch Unit (PU-501)
[8] Paper Feed Cabinet (PC-402) [17] Mailbin Kit (MT-501)
[9] Paper Feed Cabinet (PC-202)
4040T1E501AA
[1]
[3]
[2]
[8]
[10]
[9]
[11]
[15]
[12]
[13]
[14]
[17]
[16]
[4]
[5]
[6]
[7]
