Develop ineo 250 - Replacing the Tray 2 Pick-Up Roller

4. Periodical check Field Service Ver. 1.0 Aug. 2005
26
bizhub 200/250/350
Maintenance

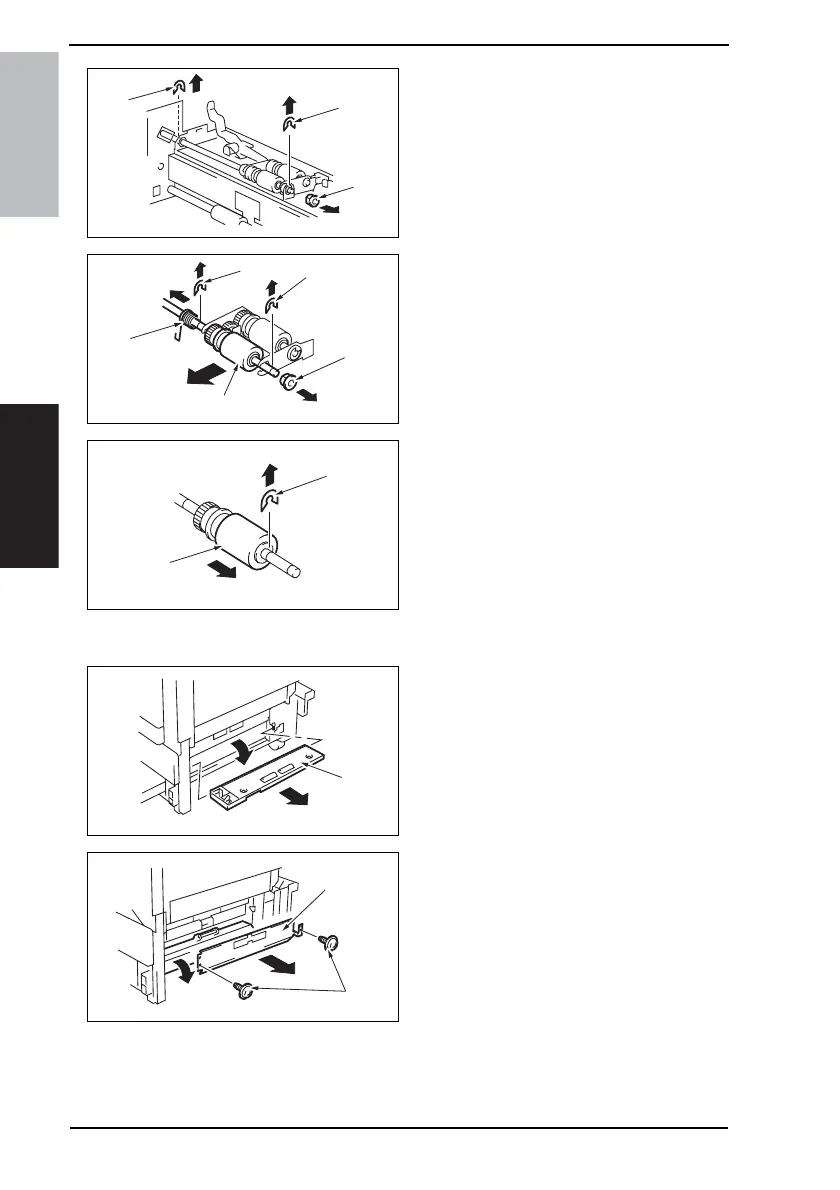

9. Remove two C-clips [14] and the
bearing [15].
10. Remove the C-clip [16], E-ring [17],
bearing [18] and spring [19] to
remove the Tray 2 Feed Roller Assy
[20].
11. Remove the C-clip [21] and the Tray
2 Feed Roller [22].
12. To reinstall, reverse the order of
removal.
13. Select [Tech. Rep. Mode] →
[Counter] → [Special Parts Counter]
→ [Tray 2] and clear the counter.
4.5.7 Replacing the Tray 2 Pick-up Roller
1. Slide out the Tray 2.
2. Remove the Multi Bypass Unit.
☞ 71
3. Remove the Lower Right Cover [1].
4. Remove two screws [2] and the
Transport Roller Cover [3].
4040F2C529DA
[14]
[15]
[14]
4040F2C530DA
[17]
[16]
[18]
[20]
[19]
4040F2C531DA
[21]
[22]
4040F2C524DA
[1]
4040F2C526DA
[3]
[2]
