Develop ineo 250 - Thermistor

Field Service Ver. 1.0 Aug. 2005 7. Other
89
bizhub 200/250/350Maintenance

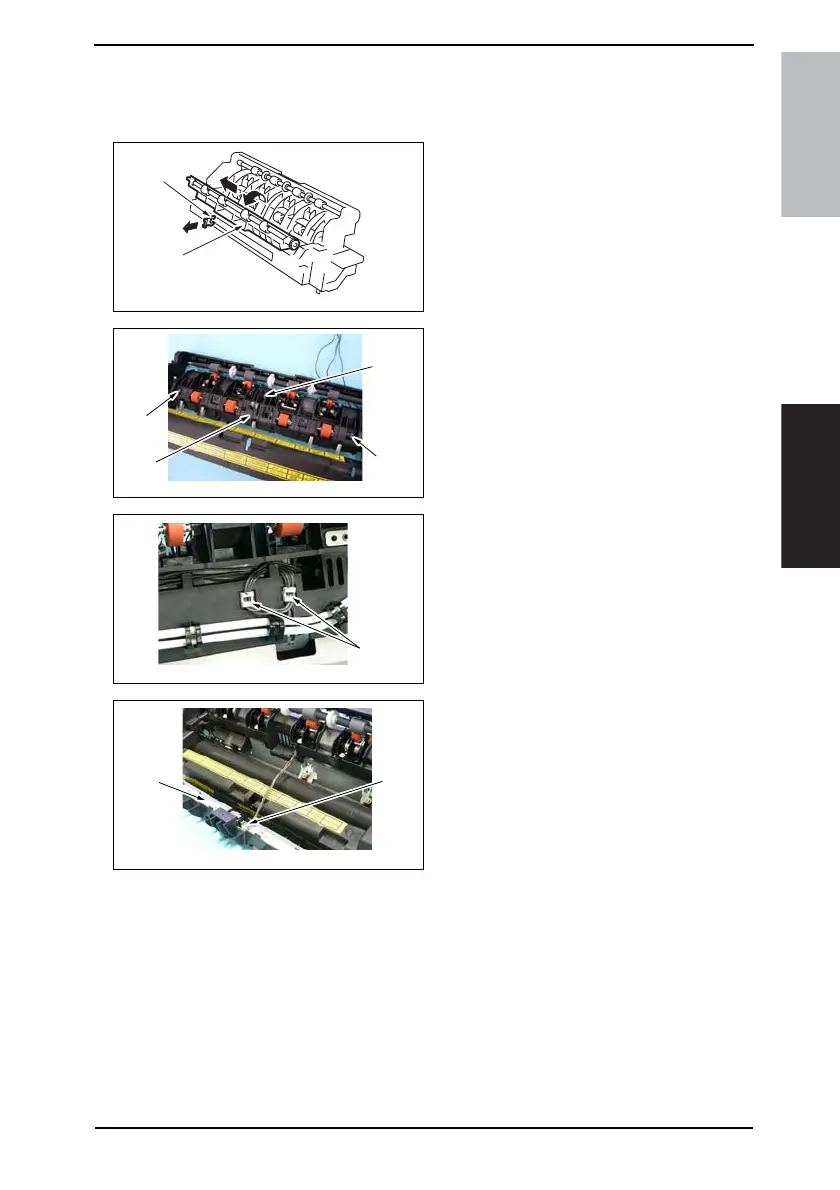

7.3.40 Thermistor
1. Remove the Fusing Unit.
☞ 37
2. Snap off the C-clip [1] and remove
the Fusing Entrance Guide Plate [2].
3. Remove two shoulder screws [3], the
screw [4], and the Exit Rolls 2 Assy
[5].
4. Remove the wiring saddle [6] and
the harness.
5. Disconnect the connector [7] of the
Exit Sensor and remove the Exit
Rolls 2 Assy [8].
4040F2C625DA
[2]
[1]
4040F2C643DA
[3]
[4]
[5]
[3]
4040F2C730DA
[6]
4040F2C431DA
[7][8]
