Develop ineo 250 - Punch Unit (PU-501)

Field Service Ver. 1.0 Aug. 2005 4. Other
17
FS-508/PU-501/OT-601Maintenance

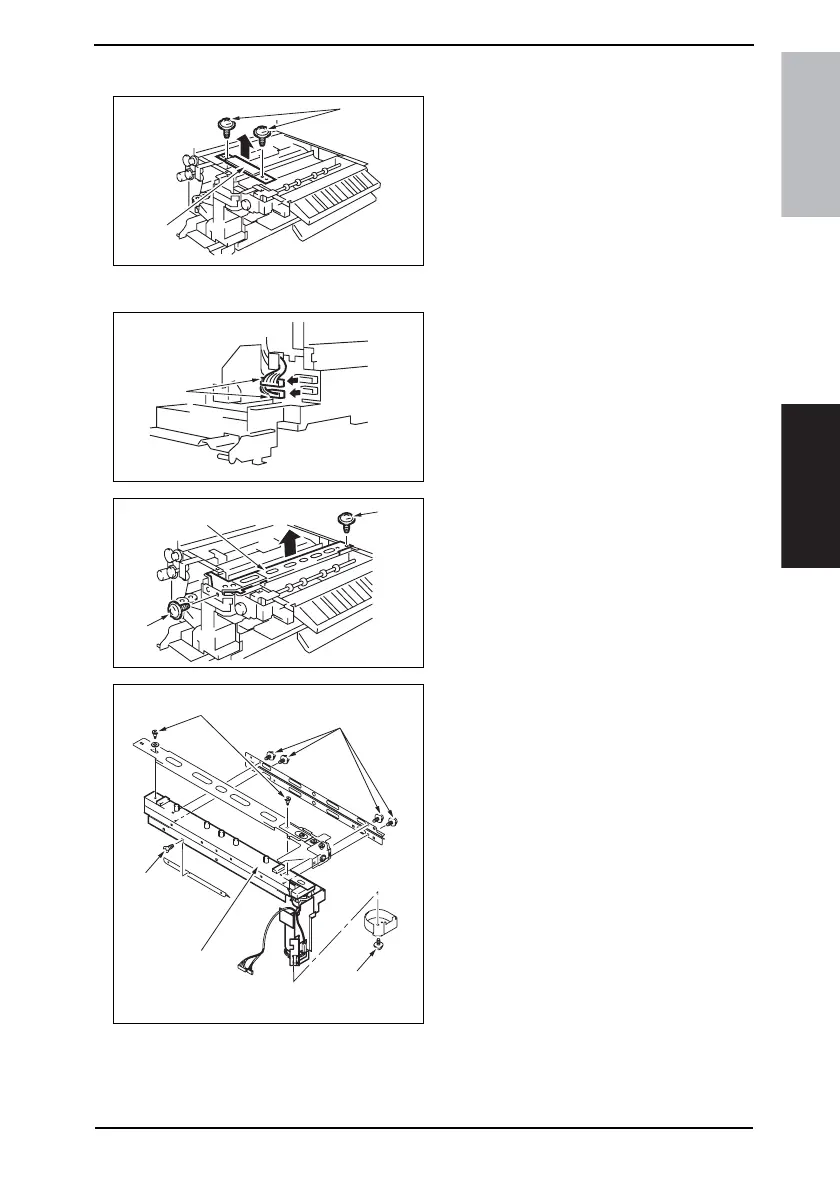

4.3.12 Punch Unit (PU-501)
1. Remove the Sorted Copy Tray.
☞ 15
2. Remove the Horizontal Transport
Unit.
☞ 15
3. Remove the Horizontal Transport
Upper Cover.
☞ 12
4. Remove two screws [1], and remove
the Reinforcement Bracket [2].
5. Disconnect two connectors [3].
6. Remove two screws [6], and remove
the Punch Kit [7].
7. Remove eight screws [8], and the
Punch Unit [9].
4512F2C500DA
[1]
[2]
4349F2C520DA
[3]
4349F2C521DA
[6]
[6]
[7]
4349F2C524DA
[8]
[9]
[8]
[8]
[8]
