4.5.9 Replacing of the Registration Roller Bearings and Registration Roller
Gears 1, 2

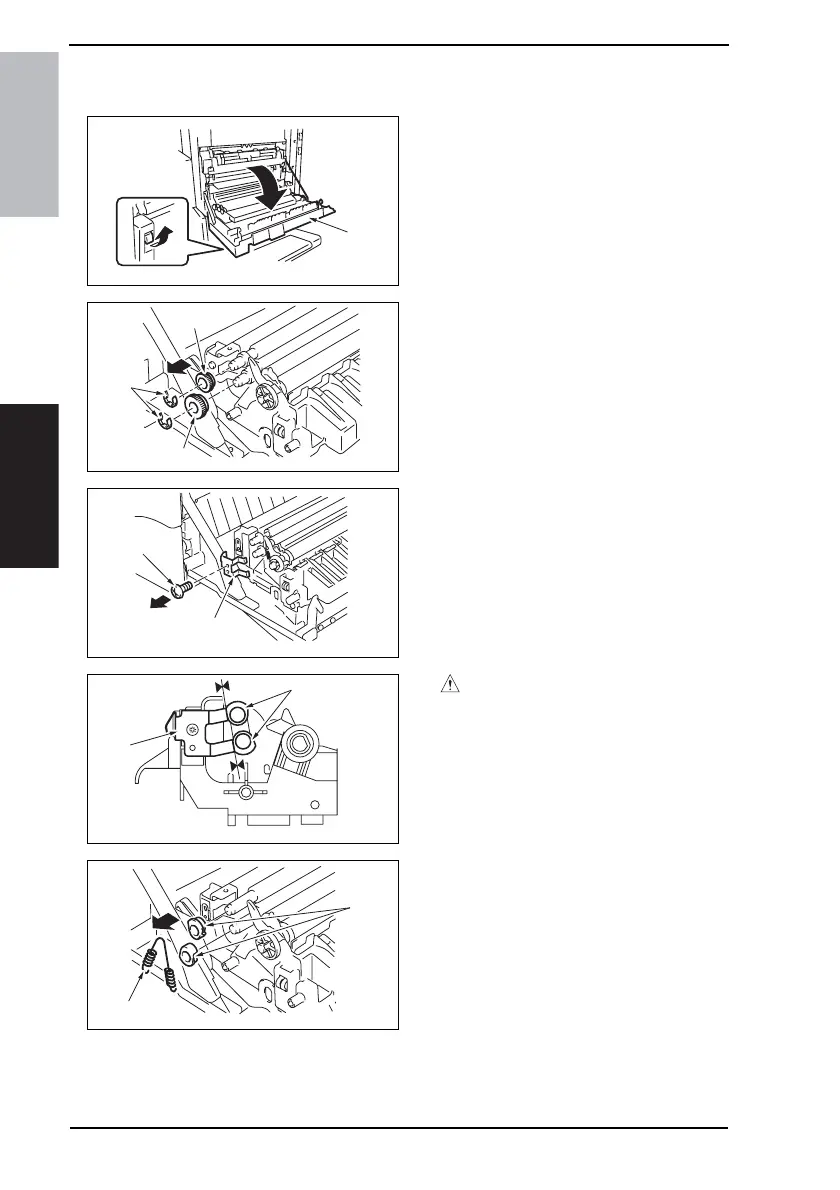

1. Open the Right Door [1].
2. Remove two E-rings [2], Registration
Roller Gears 1 [3] and Registration
Roller Gears 2 [4].
3. Remove the screw [5] and the
ground plate [6].
CAUTION
• When reinstalling the ground plate,
make sure that the ground plate [7]
is in contact with the side faces of
the bushings [8].
4. Remove the spring [9] and two Reg-
istration Roller Bearings [10].
NOTE
• When reinstalling the bearings,
make sure that the flanges of the
bearings are on the outside.
4040F2C540DA
[1]
4040F2C544DA
[2]
[3]
[4]
4040F2C545DA
[5]
[6]
4040F2C546DA
[7]
[8]
4040F2C547DA
[9]
[10]
