8.3 Center Staple Angle Adjustment
NOTE
Make this adjustment after any of the following procedures has been performed.
• When Staple Unit 1 or 2 has been replaced.
• When a slant occurs in the position of the center staple.
1. Set to Booklet + 2-point Staple and
Crease mode and make a copy.
Measure the width A of the paper.
Specification: 0 ± 1.5 mm

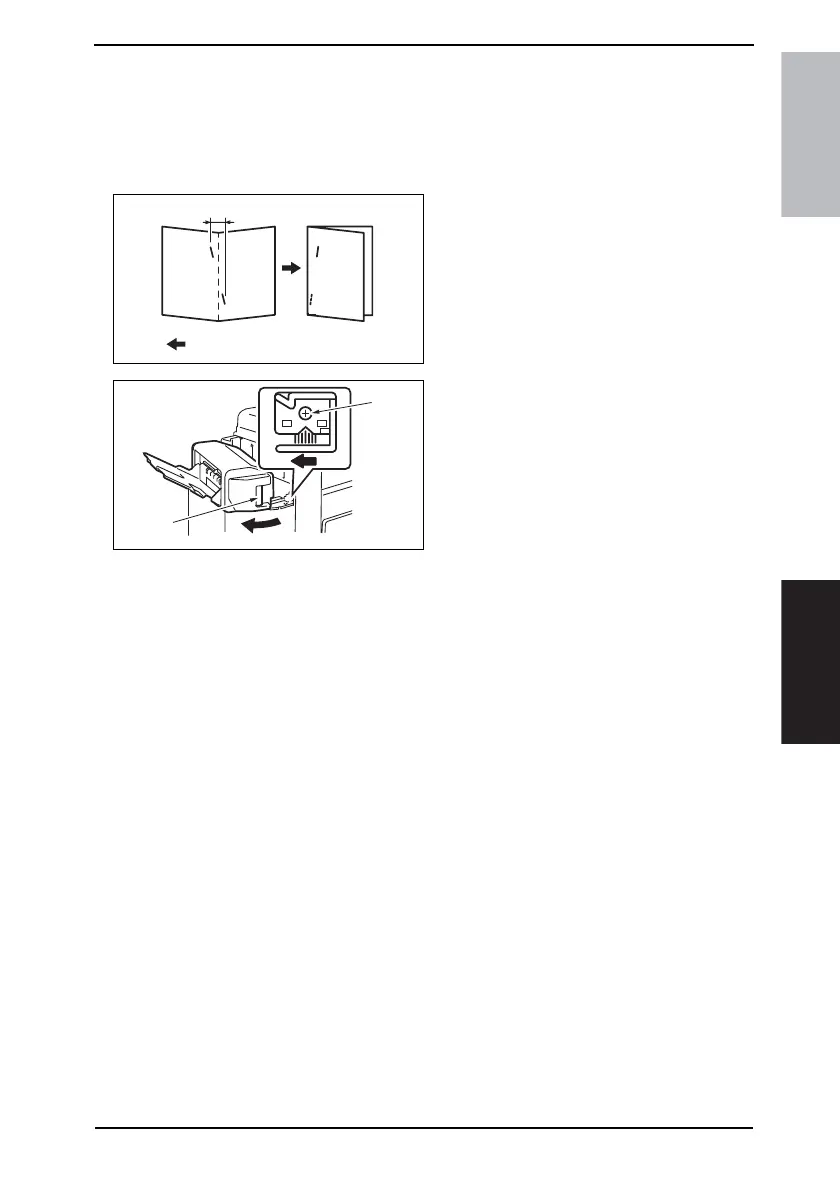

2. If the staple position is slanted as
shown on the left, make the following
adjustment.
3. Release the lock release lever [1] of
the Saddle Unit.
4. Loosen the adjustment screw [2] and
move the lock lever to the left to
make the adjustment.
• If the staple position is slanted oppo-
site to the figure of step 2, move the
lock lever to the right to make the
adjustment.
5. Make another copy and check the staple position.
