Develop ineo 250 - Control Panel; Tray 1

7. Other Field Service Ver. 1.0 Aug. 2005
56
bizhub 200/250/350
Maintenance

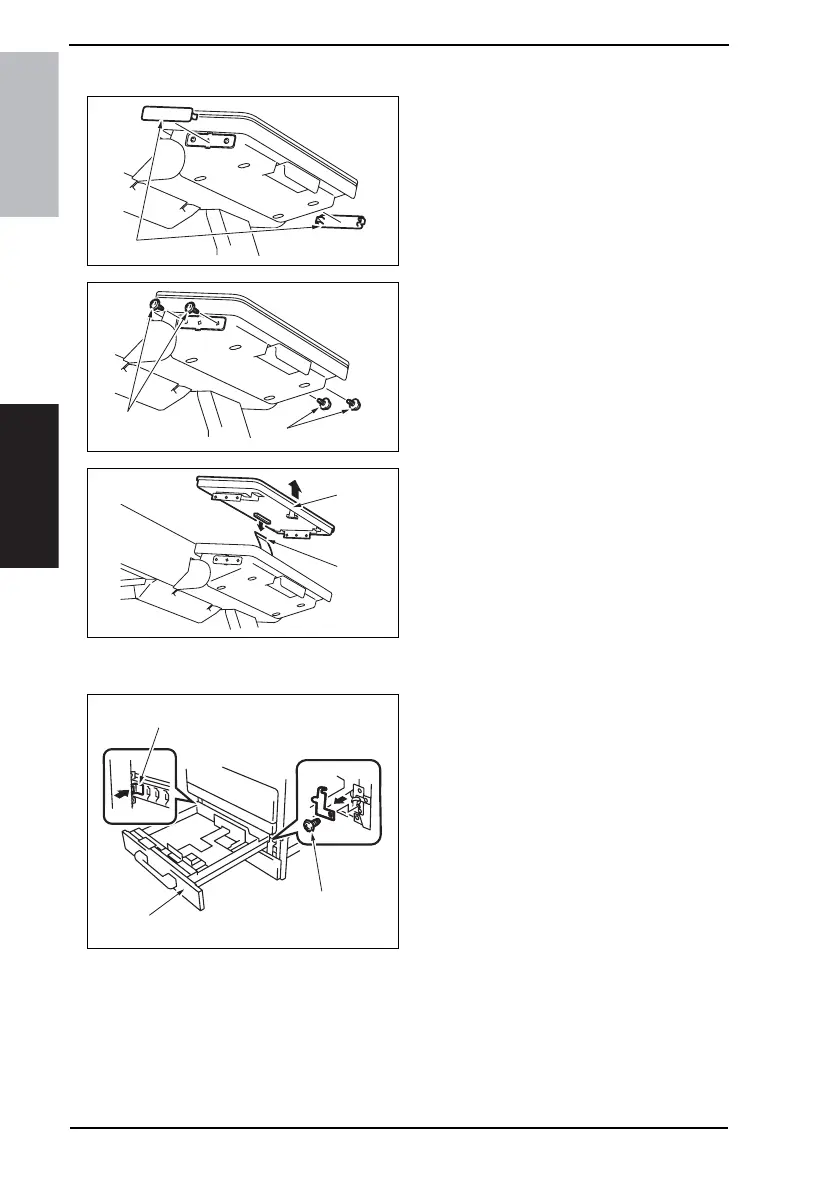

7.3.11 Control Panel
1. Remove two screw covers [1].
2. Remove the four screws [2] on the
sides of the Control Panel.
3. Disconnect the connector [3] and
remove the Control Panel [4].
7.3.12 Tray 1
1. Slide out the Tray 1 [3].
2. Remove the screw [1] and, holding
the stopper [2], remove the Tray 1
[3].
4040F2C592DA
[1]
4040F2C593DA
[2]
[2]
4040F2C594DA
[3]
[4]
4040F2C508DA
[1]
[2]
[3]
