Develop ineo 250 - Exposure Lamp

Field Service Ver. 1.0 Aug. 2005 7. Other
79
bizhub 200/250/350Maintenance

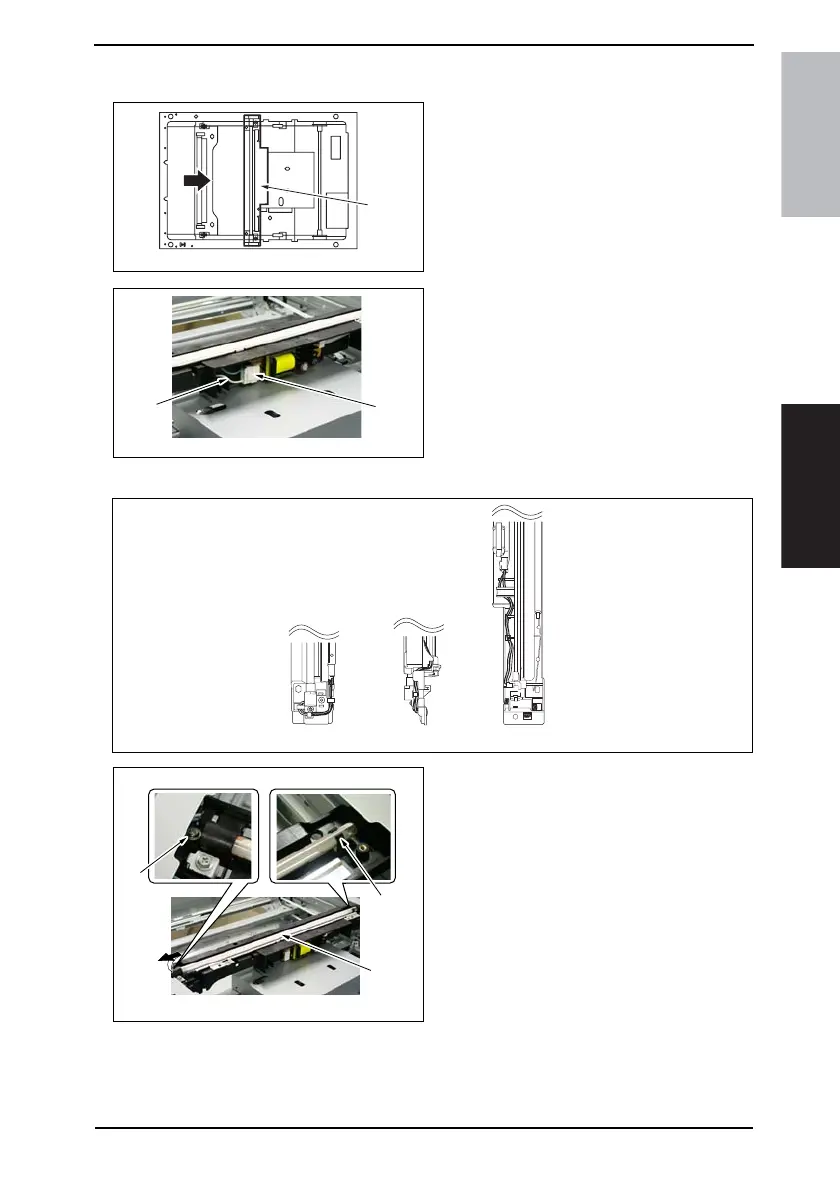

7.3.32 Exposure Lamp
1. Remove the IR Upper Left Cover.
☞ 49
2. Remove the Front Holding Bracket.
☞ 49
3. Remove the Original Glass.
☞ 49
4. Move the Exposure Unit [1] to the
removal position.
5. Disconnect the connector [2] and
remove the Exposure Lamp harness
[3].
• Reinstall the Exposure Lamp harness as follows.
6. Remove the screw [4].
7. Slide the Exposure Lamp [5] to the
front and pull it off the holder [6].
4040F2C705DA
[1]
4040F2C709DA
[2]
[3]
4040F2C706DA
Back ViewSide ViewFront View
4040F2C710DA
[4]
[6]
[5]
