Develop ineo 250 - Paper Exit Roll 1; Paper Exit Roll 2

Field Service Ver. 1.0 Aug. 2005 7. Other
91
bizhub 200/250/350Maintenance

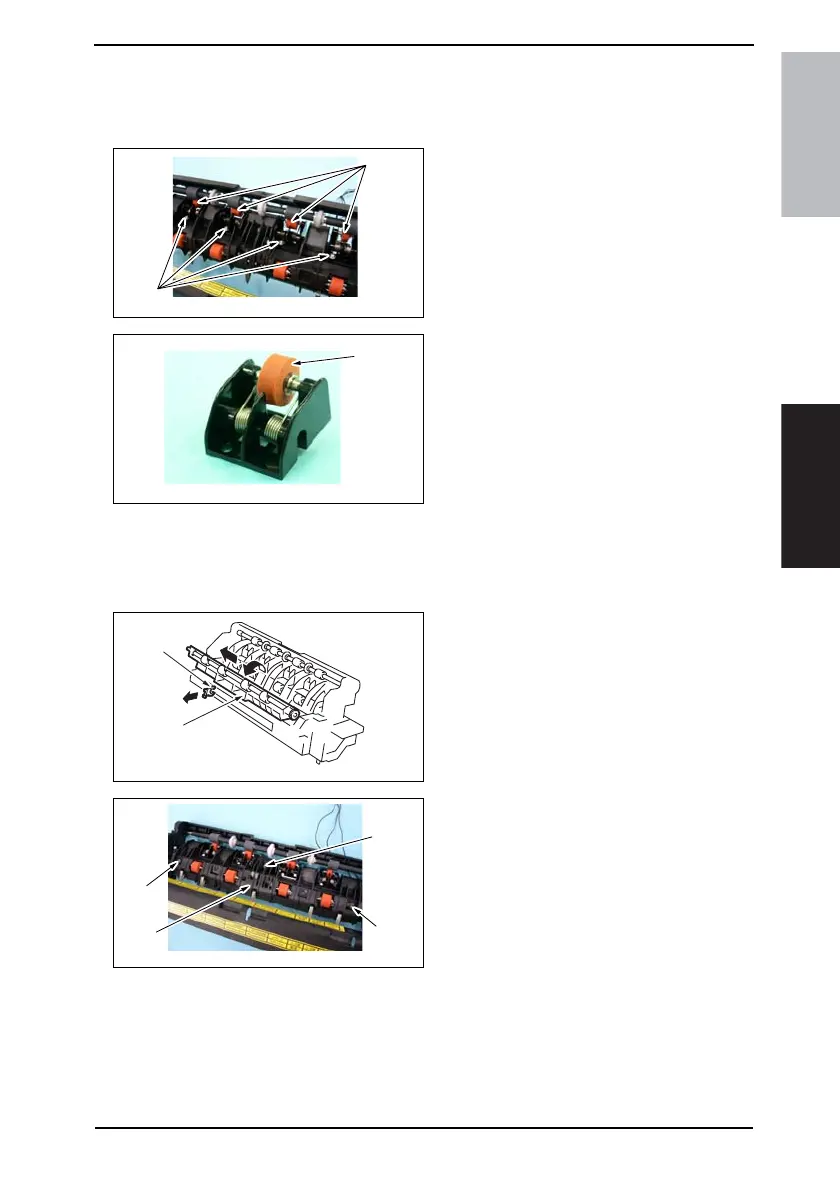

7.3.41 Paper Exit Roll 1
1. Remove the Fusing Unit.
☞ 37
2. Remove four screws [1] and four Exit
Rolls 1 Assy [2].
3. Remove the Exit Roll 1 [3].
7.3.42 Paper Exit Roll 2
1. Remove the Fusing Unit.
☞ 37
2. Snap off the C-clip [1] and remove
the Fusing Entrance Guide Plate [2].
3. Remove two shoulder screws [3], the
screw [4], and the Exit Rolls 2 Assy
[5].
4040F2C641DA
[1]
[2]
4040F2C642DA
[3]
4040F2C625DA
[2]
[1]
4040F2C643DA
[3]
[4]
[5]
[3]
