4.6.4 Replacement of the Developing Unit
1. Select Tech. Rep. Mode → [Counter] → [Special Parts Counter] → [Developer].
2. Press the Clear key to clear the counter value.
3. Turn OFF the main power switch.
NOTE
• Clear the Developer counter before removing the IU.
• After clearing the Developer counter, be sure to turn OFF the main power switch.

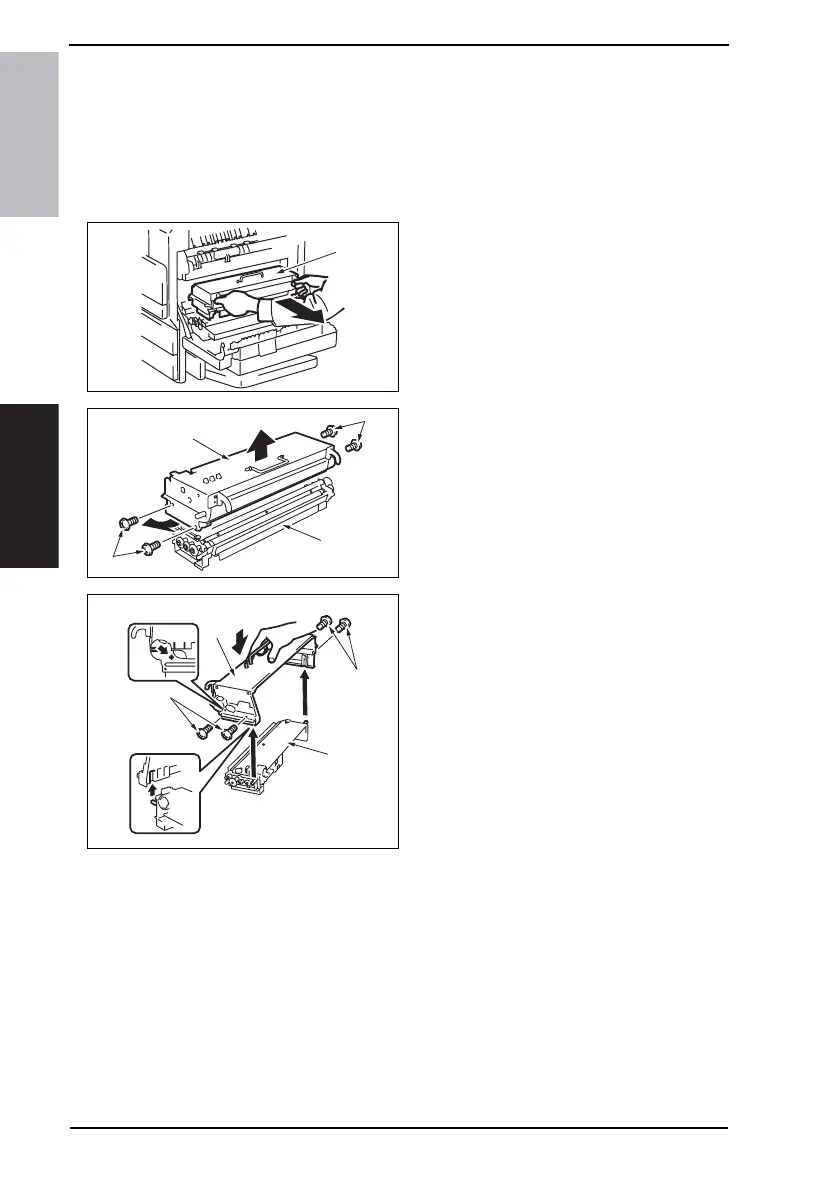

4. Open the Right Door.
5. Remove the IU [1].
6. Remove four screws (silver) [2] and
disassemble the Photo Conductor
Unit [3] and the Developing Unit [4].
7. Replace the Developing Unit [4].
8. Supply new developer to the new
Developing Unit.
☞ 34
9. Install the four screws [5] to secure
the Photo Conductor Unit [6] and
Developing Unit [7].
10. Install the IU in the copier.
11. Turn ON the main power switch.
12. Select Tech. Rep. Mode → [Function] → [F8] and press the Start key.
NOTE
• After replacing the developer, be sure to execute F8 under Function of Tech. Rep.
Mode.
• When the main power switch is turned ON, execute F8 quickly.
4040F2C555DA
[1]
4040F2C556DA
[2]
[2]
[3]
[4]
4040F2C587DA
[5]
[5]
[6]
[7]
