Develop ineo 250 - Separation Claw

7. Other Field Service Ver. 1.0 Aug. 2005
92
bizhub 200/250/350
Maintenance

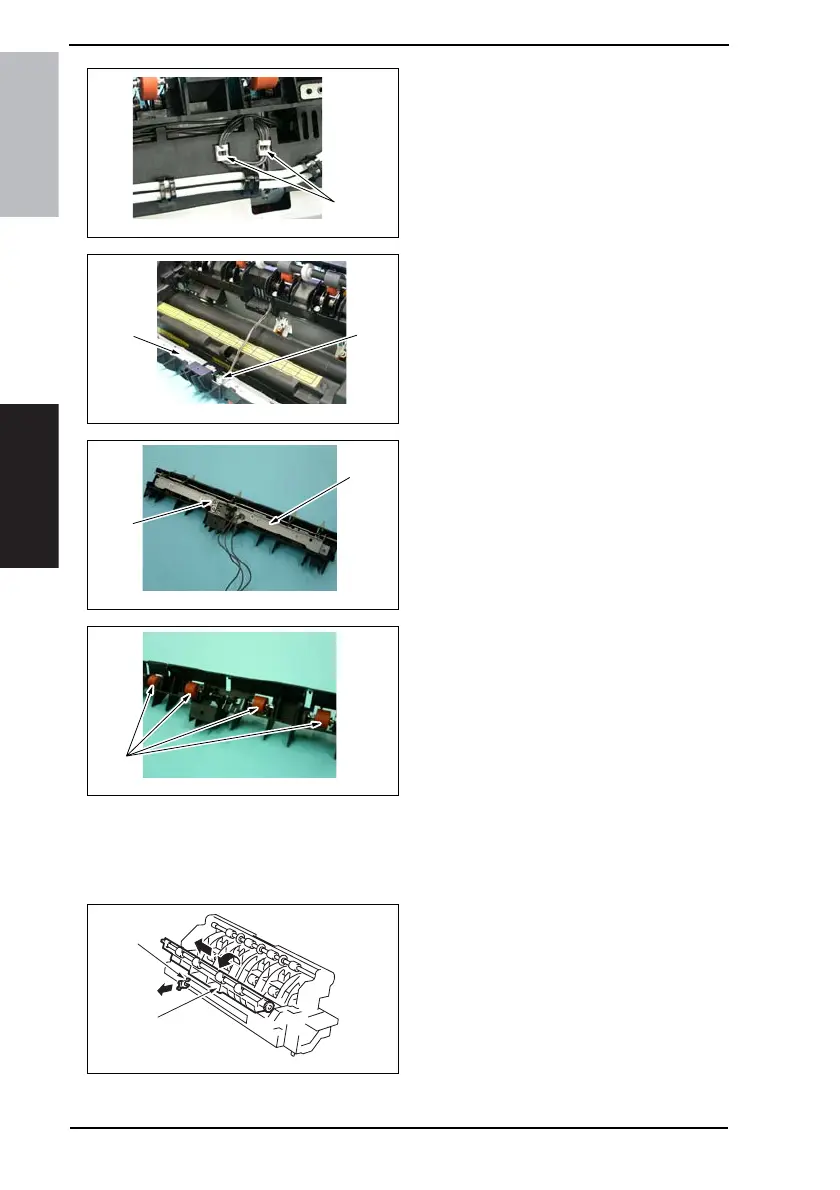

4. Remove the wiring saddle [6] and
the harness.
5. Disconnect the connector [7] of the
Exit Sensor and remove the Exit
Rolls 2 Assy [8].
6. Remove the screw [9] and the Sepa-
ration Claw Assy [10].
7. Remove the Exit Roll 2 [11].
7.3.43 Separation Claw
1. Remove the Fusing Unit.
☞ 37
2. Snap off the C-clip [1] and remove
the Fusing Entrance Guide Plate [2].
4040F2C730DA
[6]
4040F2C431DA
[7][8]
4040F2C644DA
[9]
[10]
4040F2C645DA
[11]
4040F2C625DA
[2]
[1]
