Field Service Ver. 1.0 Aug. 2005 7. Other
93
bizhub 200/250/350Maintenance

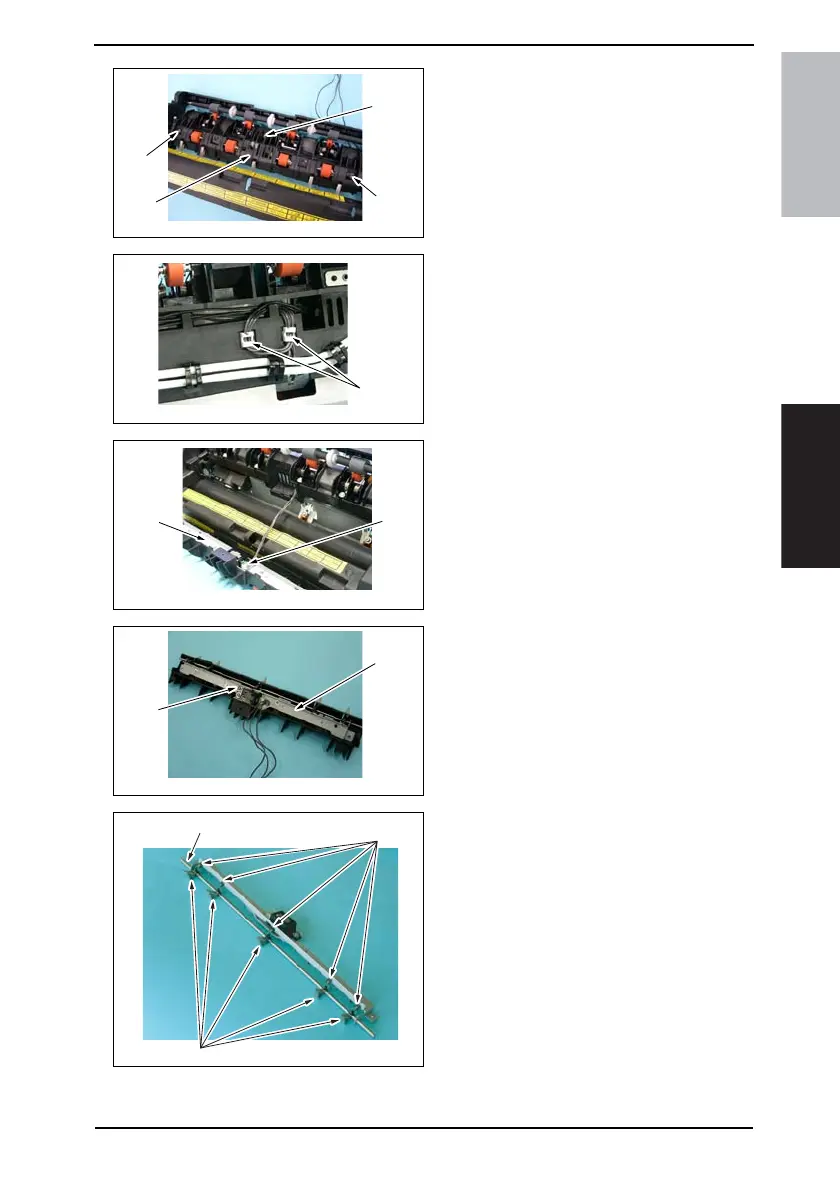

3. Remove two shoulder screws [3], the
screw [4], and the Exit Rolls 2 Assy
[5].
4. Remove the wiring saddle [6] and
the harness.
5. Disconnect the connector [7] of the
Exit Sensor and remove the Exit
Rolls 2 Assy [8].
6. Remove the screw [9] and the Sepa-
ration Claw Assy [10].
7. Remove four springs [11], the shaft
[12], and four Separation Claws [13].
4040F2C643DA
[3]
[4]
[5]
[3]
4040F2C730DA
[6]
4040F2C431DA
[7][8]
4040F2C644DA
[9]
[10]
4040F2C747DA
[11]
[13]
[12]
