Develop ineo 250 - Replacing the Tray 1 Separation Roller Assy

Field Service Ver. 1.0 Aug. 2005 4. Periodical check
23
bizhub 200/250/350Maintenance

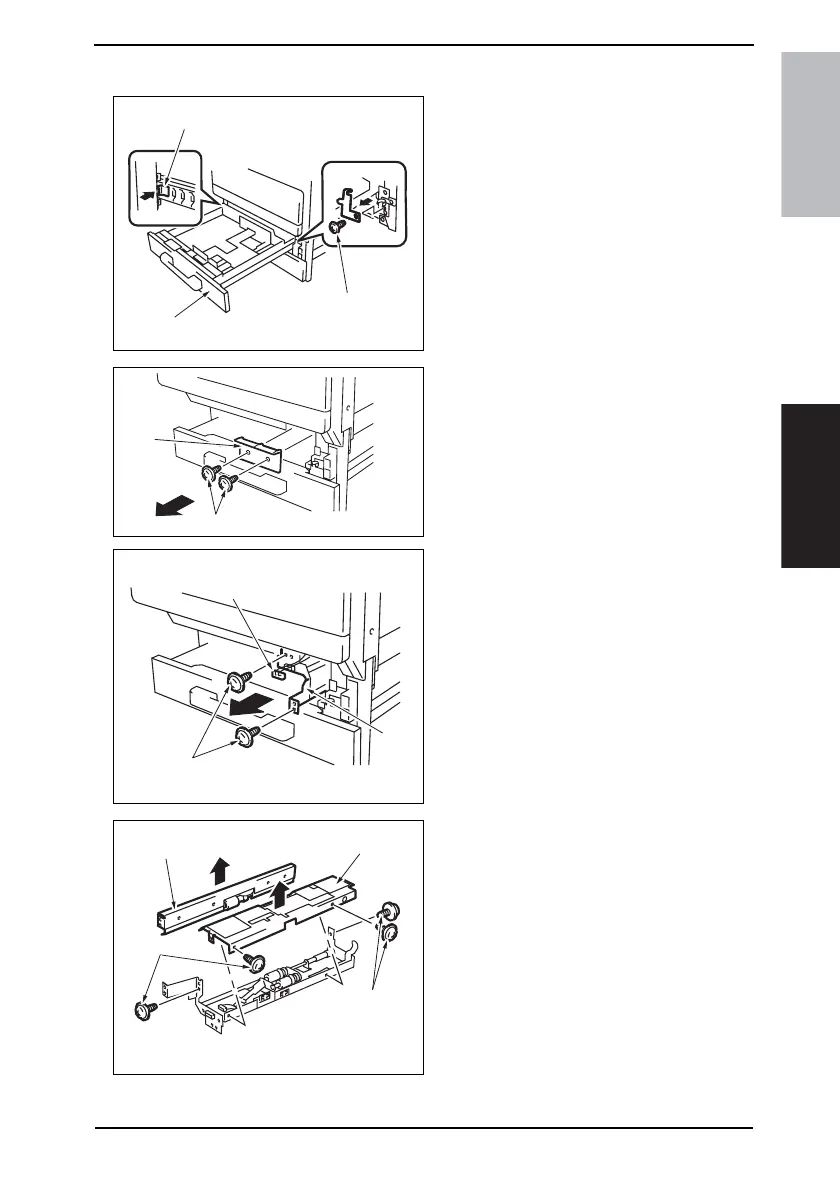

4.5.5 Replacing the Tray 1 Separation Roller Assy
1. Remove the screw [1] and, holding
the stopper [2], remove Tray 1 [3].
2. Remove two screws [4] and the Con-
nector Cover [5].
3. Remove the Connector [6].
4. Remove two screws [7] and the Tray
1 Feed Roller Assy [8].
5. Remove four screws [9] and the Tray
1 Feed Roller Assy Cover [10] and
the Tray 1 Separator Roll Assy [11].
4040F2C508DA
[1]
[2]
[3]
4040F2C509DA
[4]
[5]
4040F2C510DA
[8]
[7]
[6]
4040F2C512DA
[11]
[10]
[9]
[9]
