Develop ineo 250 - Pick-Up Roller; Vertical Transport Roller

3. Other Field Service Ver. 1.0 Aug. 2005
12
PC-102/PC-202
Maintenance

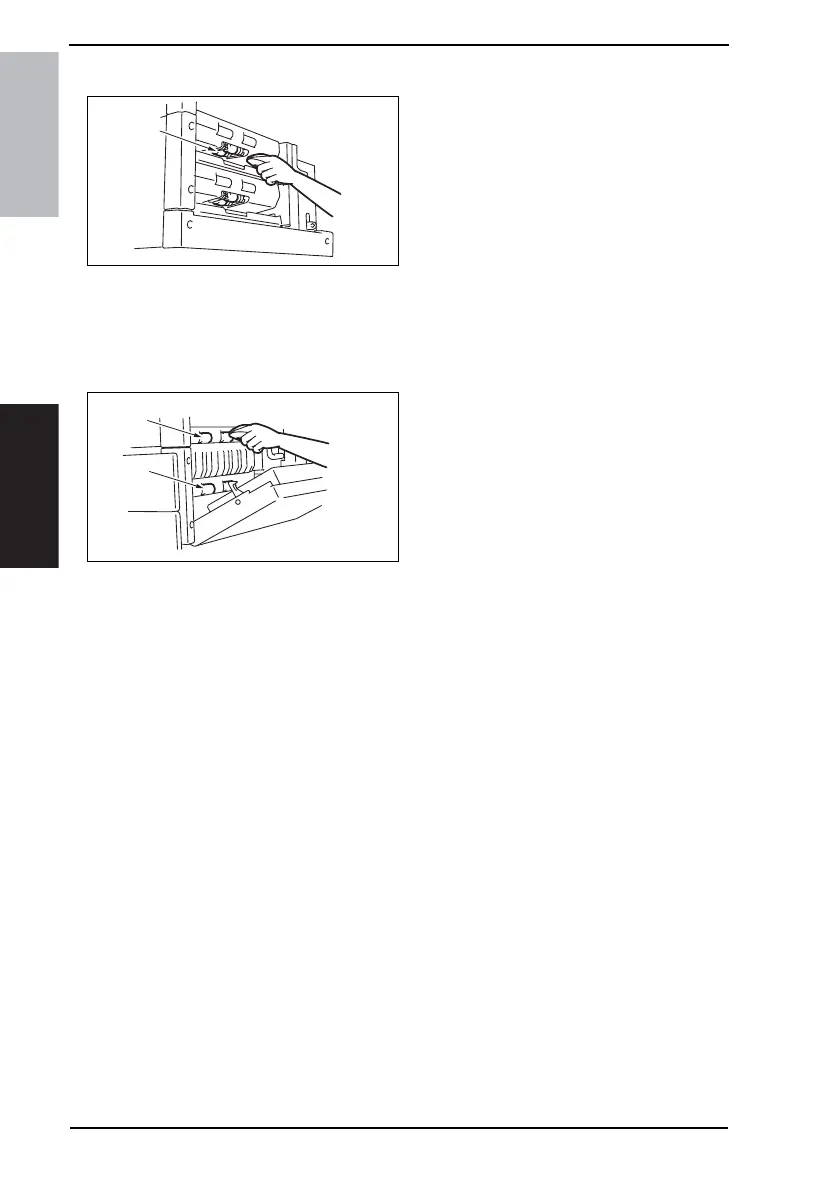

3.4.3 Pick-up Roller
1. Remove the Tray3.(Remove the
Tray4 from 4th row.)
2. Remove the Paper Separation Roller
Mounting Bracket Assy.
☞ See steps 1 to 3 of the cleaning pro-
cedure for “Separation Roller” on p.
11.
3. Using a soft cloth dampened with
alcohol, wipe the Pick-up Roller [1]
clean of dirt.
4. Repeat steps 1 to 3 similarly for the
4th Drawer.
3.4.4 Vertical Transport Roller
1. Open the Right Door.
2. Using a soft cloth dampened with
alcohol, wipe the Vertical Transport
Roller [1] clean of dirt.
4348fs2602c0
[1]
4348fs2620c0
[1]
[1]
