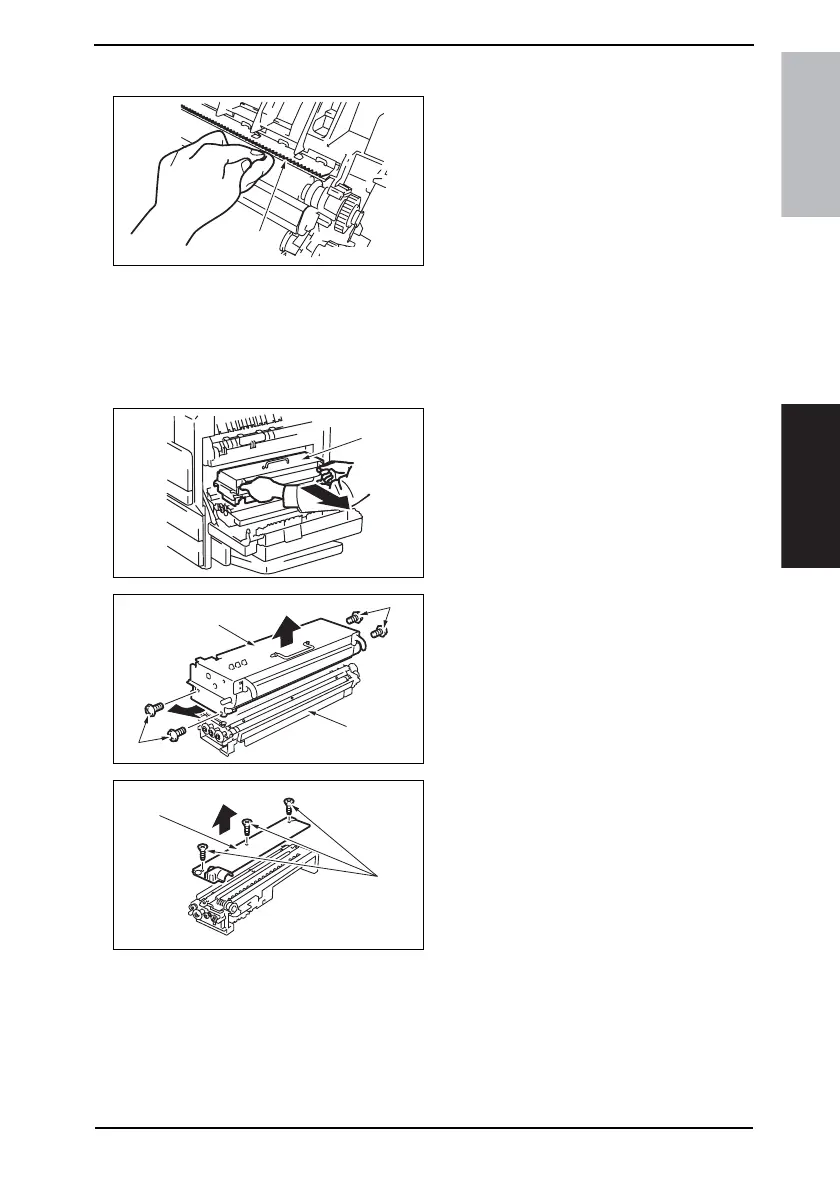

7.4.18 Charge Neutralizing Plate
1. Open the Right Door.
2. Wipe the Charge Neutralizing Plate
[1] clean of dirt with a cloth.
7.4.19 Ds Collar
1. Turn OFF the main power switch.
NOTE
• Clear the PC Life counter before removing the IU.
• After clearing the PC counter, be sure to turn OFF the Main Power Switch.
2. Open the Right Door.
3. Remove the Imaging Unit [1].
4. Remove four screws (silver) [2] and
disassemble the Photo Conductor
Unit [3] and the Developing Unit [4].
5. Remove three screws [5] and the
Developer Scattering Prevention
Plate [6].
