4.5.14 Replacement of the Developer
1. Select Tech. Rep. Mode → [Counter] → [Special Parts Counter] → [PC Life].
2. Press the Clear key to clear the counter value.
3. Turn OFF the main power switch.
NOTE
• Clear the PC Life counter before removing the IU.
• After clearing the PC Life counter, be sure to turn OFF the main power switch.
4. Open the Right Door.

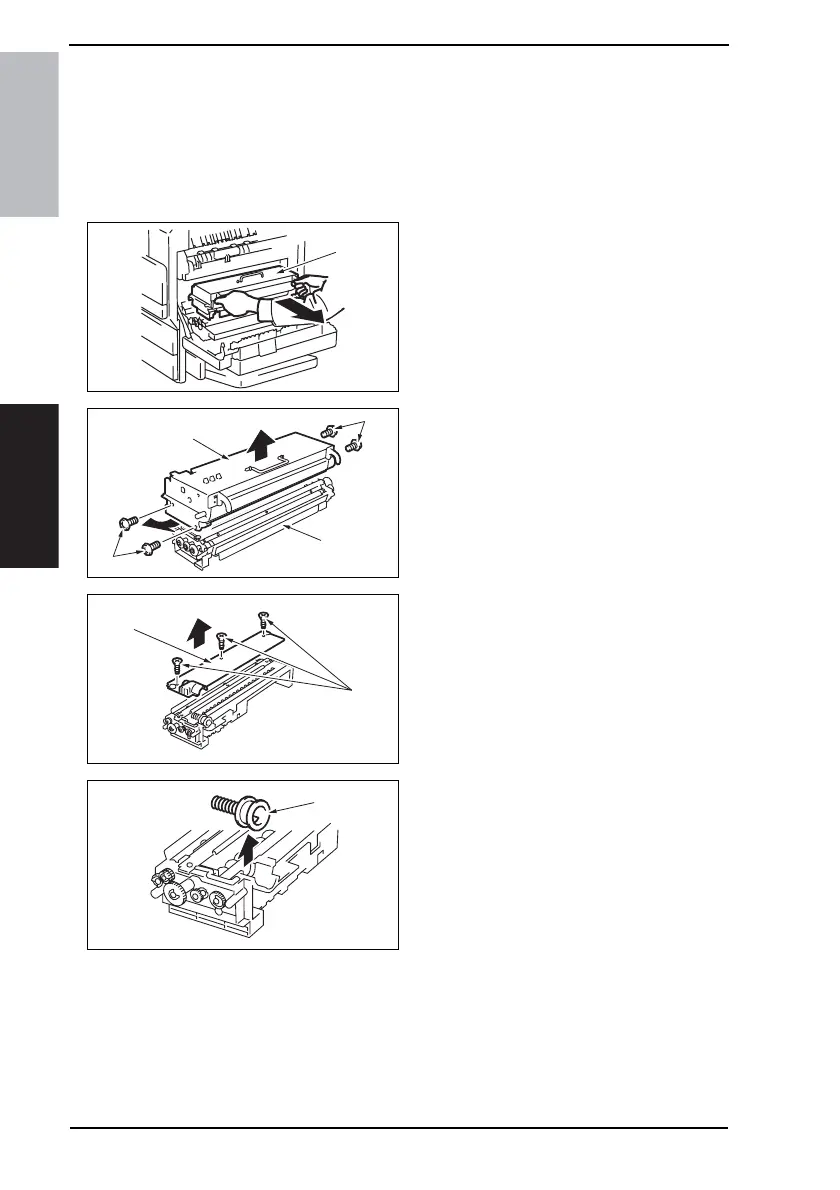

5. Remove the IU [1].
6. Remove four screws (silver) [2] and
disassemble the Photo Conductor
Unit [3] and the Developing Unit [4].
7. Remove three screws [5] and the
Developer Scattering Prevention
Plate [6].
8. Remove the Toner Supply Port [7].
4040F2C555DA
[1]
4040F2C556DA
[2]
[2]
[3]
[4]
4040F2C579DA
[5]
[6]
4040F2C580DA
[7]
