Develop ineo 250 - Replacing the Tray 2 Feed Roller

Field Service Ver. 1.0 Aug. 2005 4. Periodical check
25
bizhub 200/250/350Maintenance

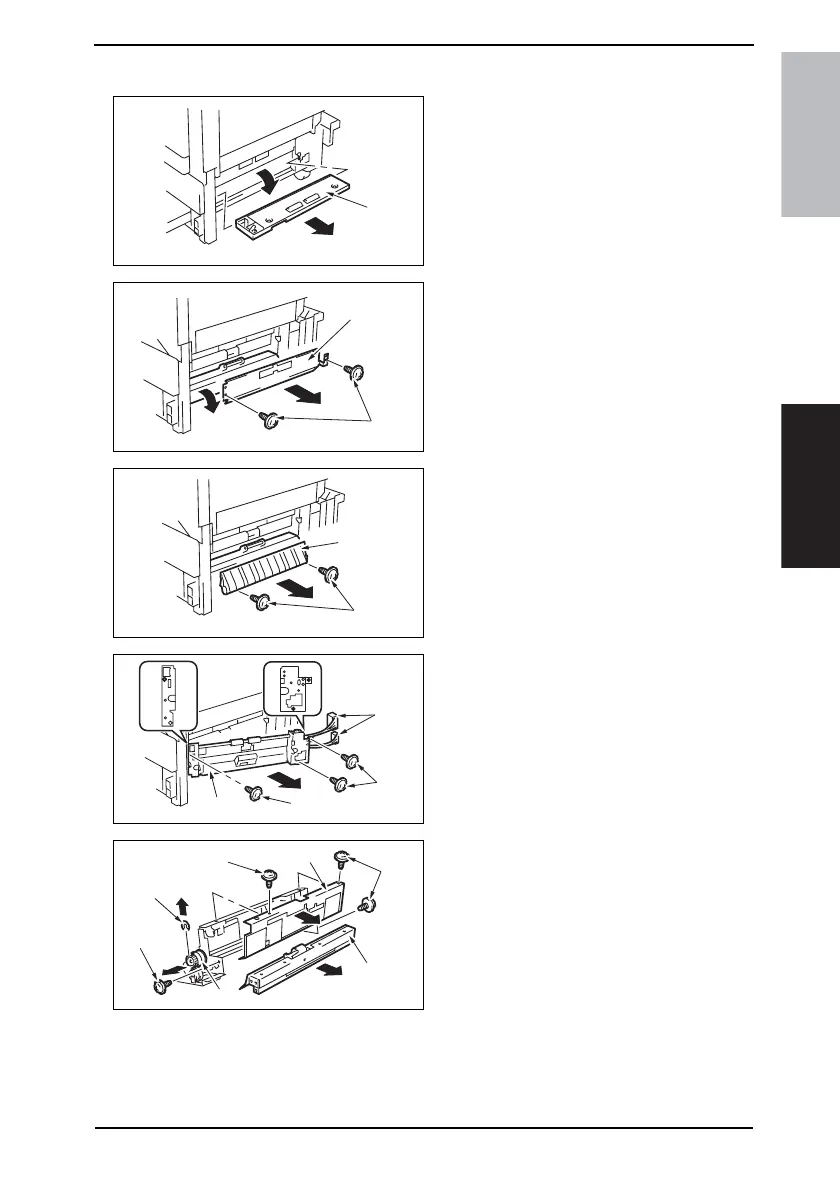

4.5.6 Replacing the Tray 2 Feed Roller
1. Slide out the Tray 2.
2. Remove the Multi Bypass Unit.
☞ 71
3. Remove the Lower Right Cover [1].
4. Remove two screws [2] and the
Transport Roller Cover [3].
5. Remove two screws [2] and the Mis-
feed Clearing Cover [5].
6. Unplug two connectors [6].
7. Remove three screws [7] and the
Tray 2 Feed Roller Assy [8].
8. Remove four screws [9] and the C-
clip [10]. Then, remove the Tray 2
Feed Roller Cover [11], the Tray 2
Separation Roller Assy [12], and the
Tray 2 Feed Roller Clutch [13].
4040F2C524DA
[1]
4040F2C526DA
[3]
[2]
4040F2C527DA
[5]
[4]
4040F2C591DA
[6]
[7]
[7]
[8]
4040F2C528DA
[9]
[9]
[9]
[10]
[13]
[11]
[12]
