Field Service Ver. 1.0 Aug. 2005 6. Jam Display
11
Duplex Unit/
Switchback Unit
Troubleshooting
Troubleshooting
6. Jam Display
6.1 Misfeed display
• When misfeed occurs, message, misfeed location “Blinking” and paper location “Light-
ing” are displayed on the Touch Panel of the main unit.
6.1.1 Misfeed display resetting procedure
• Open the corresponding door, clear the sheet of paper misfeed, and close the door.

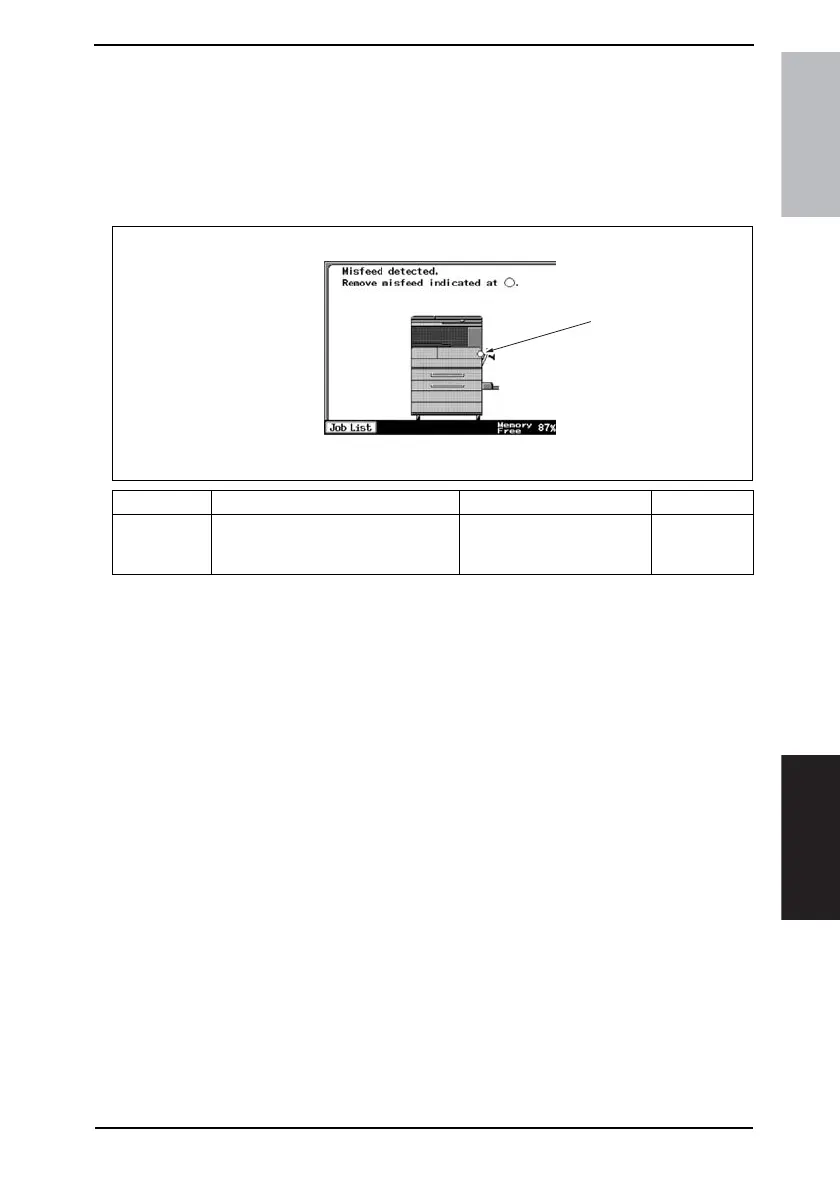

Display Misfeed location Misfeed access location Action
[1]
Duplex Unit Take-Up Section Misfeed
Turnover Unit/Duplex Unit Transport
Section Misfeed
Duplex Unit Door
☞ 13
